Features
Accepts Makita and other industry standard 2 piece template guides
Soft start feature gradually increases speed to eliminate start up shock
Constant speed control maintains constant speed under heavy load
Variable speed dial allows operator to adjust speed based on materials or application
Flat top design provides a stable platform when changing bits
Shaft lock button enables quick and easy bit changes and eliminates the need for dual wrenches
Aluminum base and housing offer increased durability and accuracy
On/off rocker switch is easy to operate and eliminates interference with handling
Trimmer Base Assembly provides smooth, fast cutting and easy handling
Plunge Base Assembly with precision cutting depth adjustment for accurate plunge cutting applications
Tilt Base Assembly enables quick and accurate angled cuts
Offset Base Assembly allows operator to make close to wall cuts of just 3/4in
Interchangeable bases offer maximum versatility, high bit visibility and non-marring plastic base for smooth movement and protection of materials
Specifications
Collet Capacity - 1/4, 3/8in (6.35 mm , 9.53 mm)
AMPS (120V) - 6.5 A
No Load Speed - 10,000 - 30,000 RPM
Maximum Horsepower (HP) - 1-1/4in
Overall Height - 7-7/8in (200 mm)
Net Weight - 3.9 lbs (1.8 kg)

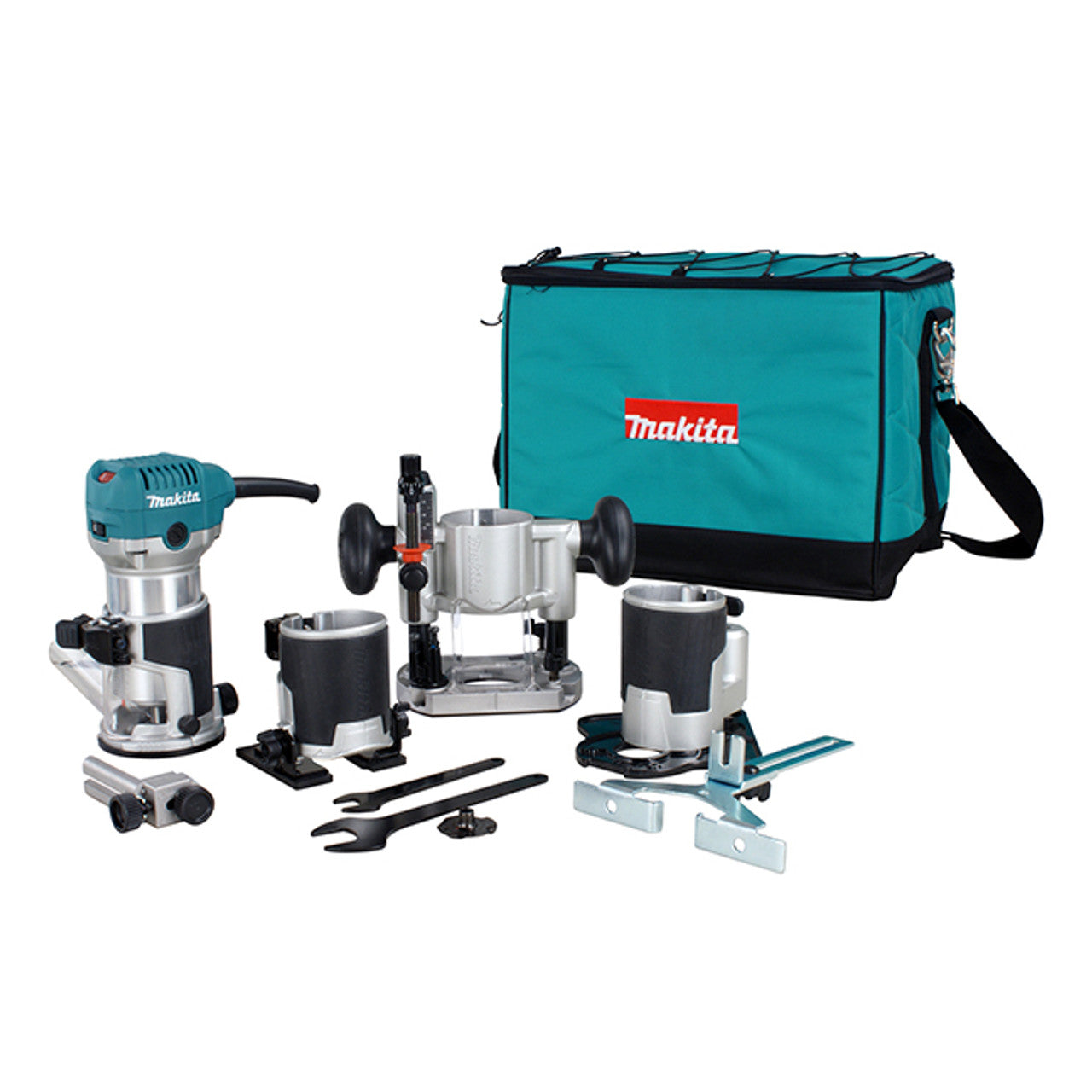

Includes
1/4in Collet Cone (763637-1)
3/8in Collet Cone (763619-3)
Trimmer Guide (122703-7)
Straight Guide (122965-7)
Template Guide 10 (343577-5)
Template Guide 16 (193043-0)
Wrench 13 (781039-9)
Wrench 22 (781011-1)
Plunge Base Set (196094-2)
Tilt Base Set (196092-6)
Guide Holder Set (195564-8)
Offset Base Set (196093-4)
Dust Nozzle Set-Plunge Base (P-80011)
Dust Nozzle Set-Trimmer Base (195559-1)
Side Handle (153489-2)
Tool Bag (831327-5)
