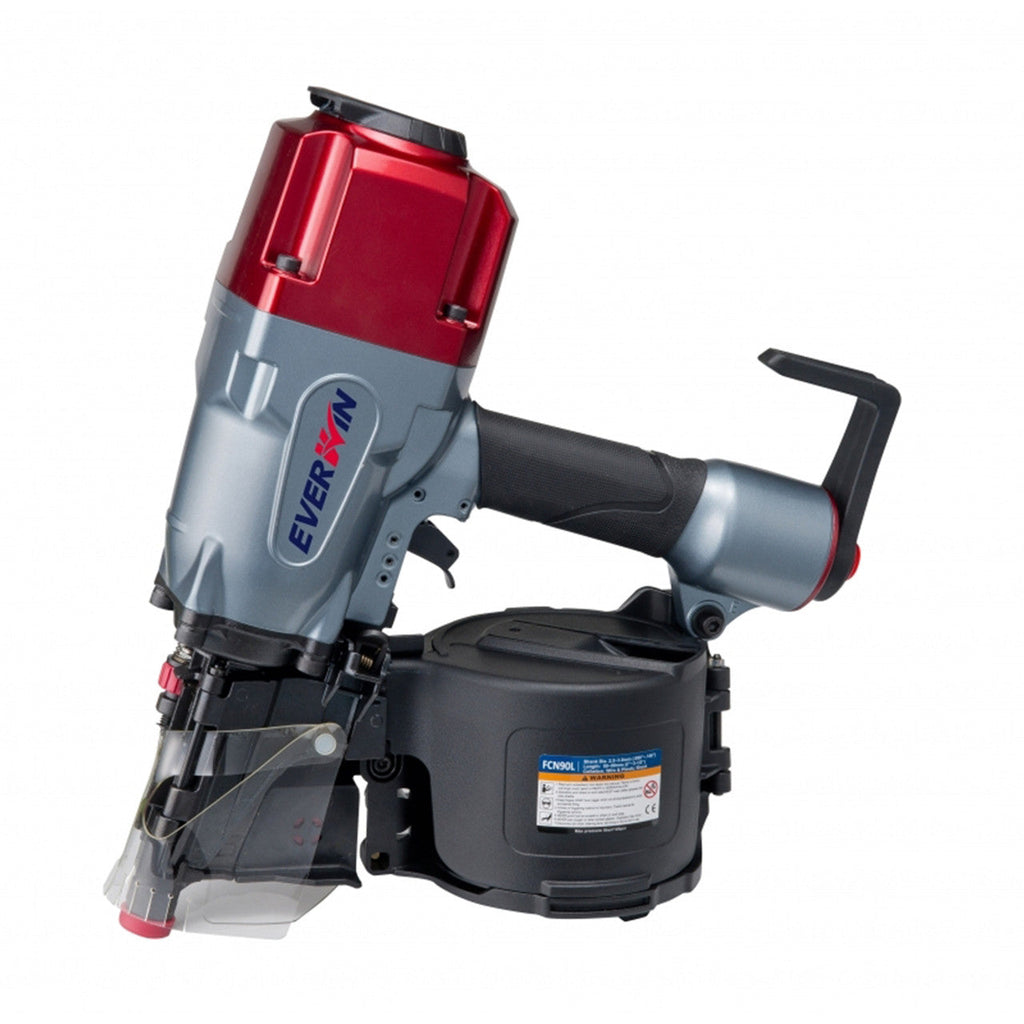

The FCN90L, driving up to a 3-1/2in nail is perfect for a wide range of framing applications. This tool drives smooth, ring, and screw shank coil nails in both wire and plastic sheet collation. Weighing only 3.0 kg, the FCN90L is easy to maneuver and causes minimal fatigue.
Features

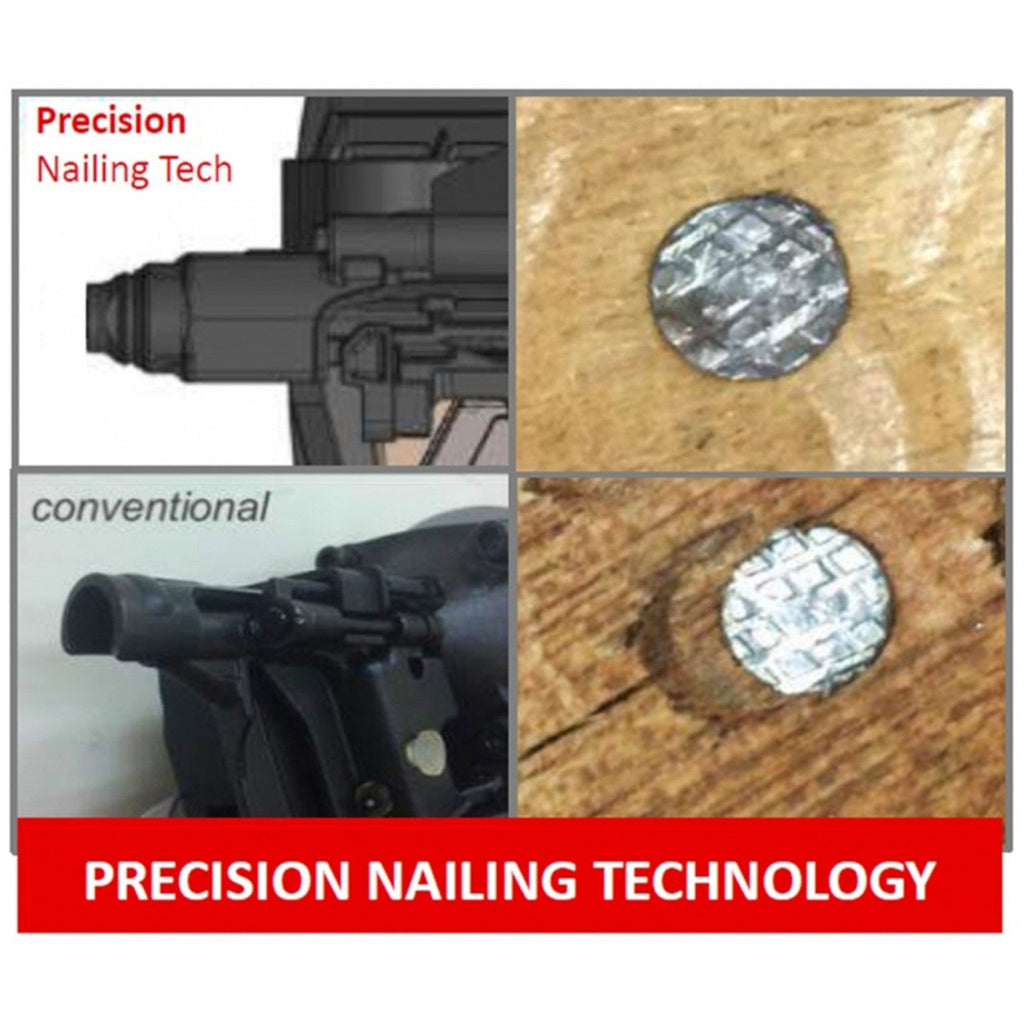

Patented Precision Nailing Tech and 2-piece contact arm design
Full Magnesium housing construction
360° Multi directional exhaust cover
Cushioned rubber grip and Ergonomic frame design provide comfort and balance during operation
Tough nylon, fast and easy loading magazine
Tool-Free Depth Adjust and Trigger Lock for safety
Durable nose and Anti-abrasive driver for extended tool life
Dust cover blocks nails or wire chips
Durable Metal Belt hook for workplace convenience
Body Protector on enduring frame
Air Inlet NPT: 1/4in
Operating Pressure: 70 to 120 PSI (5 - 7 bar)
Trigger Type: Contact fire or Single Sequential
Applications
Exterior / Roof Decking
Furring
Strapping
Wooden Fencing
General Construction
Decking, Sheathing and Framing
Subfloors
Fastener Specifications
Type
15° Round Head Flat Coil nails
Degree
15°
Range
Wire: 45 - 90 mm (1-3/4in - 3-1/2in) / Plastic 45 - 75 mm (1-3/4in - 3in)
Wire Diameter
Wire: 2.5 - 3.7 mm (.099in - .148in) / Plastic 2.5 - 2.9 mm (.099in - .114in)
Collation
15° Angled Wire or Plastic Coil
Capacity
200 - 300 Nails
