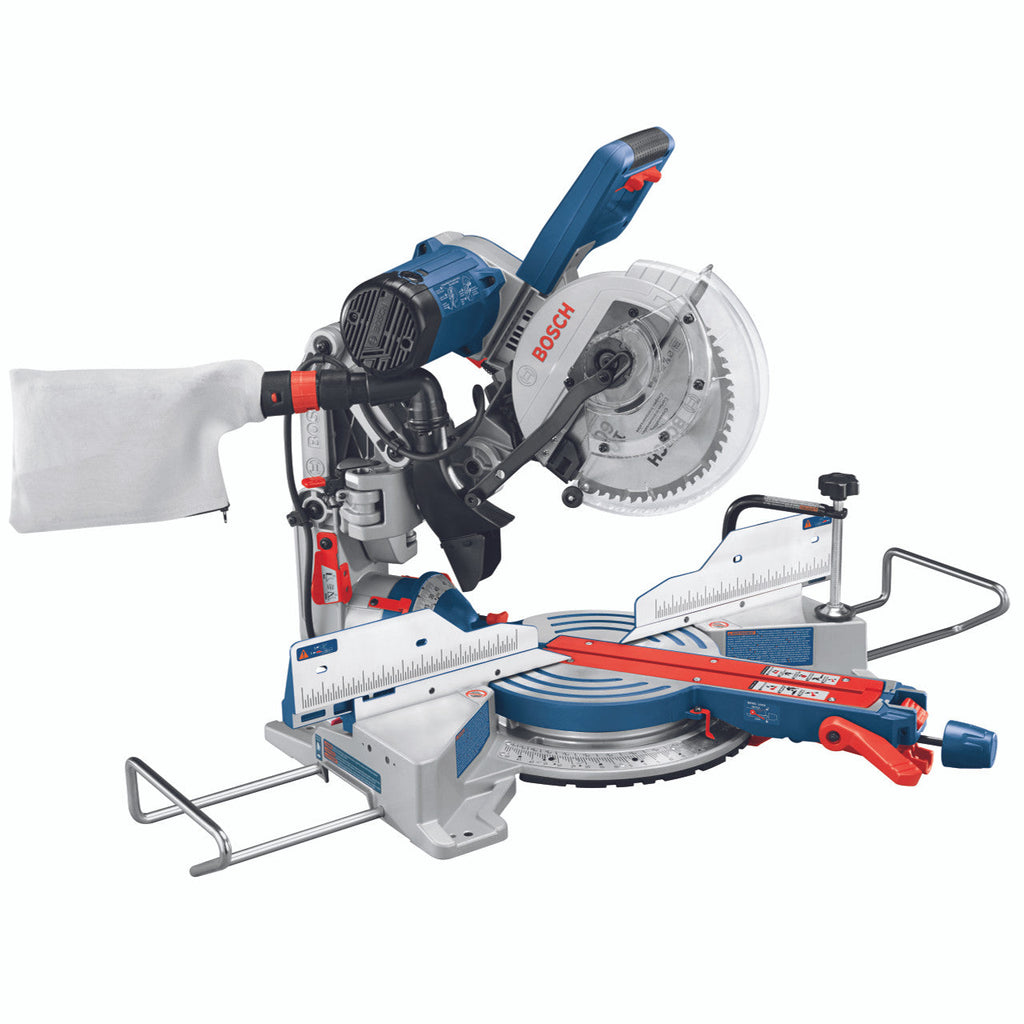

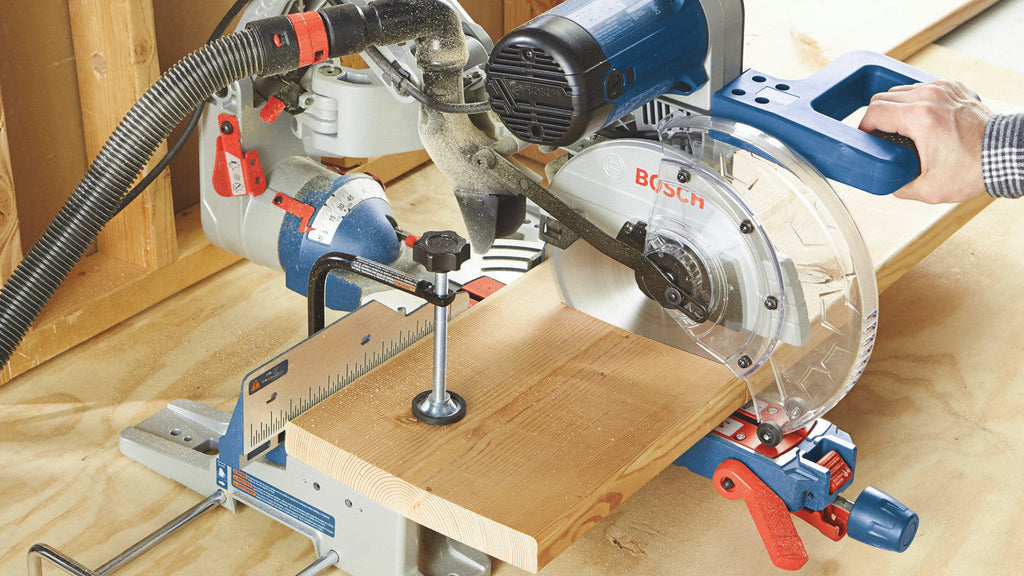

The Bosch CM10GD is a 10in. Dual-Bevel Glide miter saw that delivers accuracy and cutting control at all angles, as well as consistent precision throughout the life of the tool. The innovative Axial-Glide System provides wider cross-cuts, enhanced alignment and smoother glide, and the compact design takes up to 10 in less workspace. With 4,800 no load RPM, there is plenty of power. Adjustable miter and bevel detents enable users to make precise common miter and bevel cuts, and the override allows for easy angle adjustment. The bevel lock lever and range selector are located safely upfront so users don't have to reach around behind the saw.
Features
The Axial-Glide System uses the articulated arm flush with the back of the saw for durable precision and up to 10in. less workspace

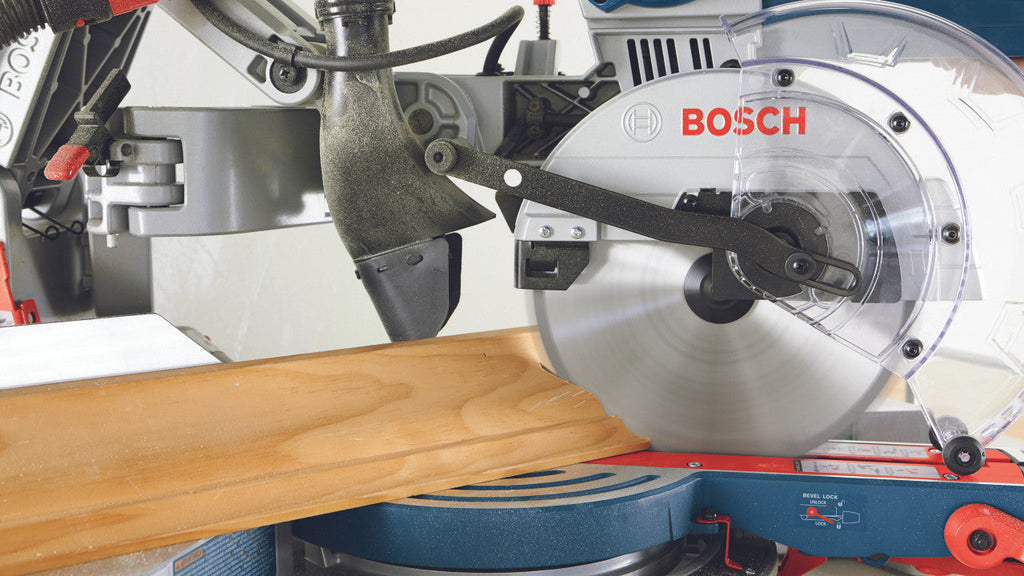

4,800 no load RPM with 12in. horizontal cut capacity (nominal), 5-1/2in. vertical cut capacity against the fence (base), and a 6in. crown cut capacity against the fence (45° spring)
Bevel lock lever and range selector located upfront for quick, easy settings without reaching around behind saw
Tall 4-1/4in. sliding fences for easy bevel set-ups
Tall sliding 4-1/4in. fences: for easy bevel set ups and increased crown and base molding capacity
Large easy-to-read uniform bevel & stainless steel miter scales: 52° left/60° right miter capacity; 47° left/47° right bevel capacity with marked detents and roof pitch angles
Adjustable miter detents: detents at 0°, 15°, 31.6°, 22.5°, 45°, 60° right super-accurate and durable design
Push-button miter Detent override - easy-to-access thumb actuated control right up front for fine miter angle adjustment
Bevel detents: 0, 33.9°, 45° left/right for accurate cuts
Category best 90% dust collection - optimized for cutting 2x material with a vacuum
Ergonomic ambidextrous trigger handle with soft grip - large form fitting ergonomic handle provides comfort for all-day use
Includes
(1) 10in 60T Blade
(1) Material Clamp
(1) Dust Bag
Specifications
Amperage 15.0
Bevel Angle Range 47° left and 47° right
Bevel Stops 0°, 33.9°, 45° left and right
Blade Diameter 10.0
Dust Collection Yes
Length 32in
Miter Angle Range 52° Left, 60° Right
Miter Detents 0°, 15°, 22.5°, 31.6°, 45° (Left/Right)
Miter Positive Stops 0°, 15°, 22.5,° 31.6°, 45° (Left/Right)
No Load RPM 4,800
Voltage 120V
Weight 64.0lb
Width 26.5in
