The Bosch-exclusive Axial-Glide offers wider cross-cuts, enhanced alignment and smooth glide for the life of the tool. The Bosch miter saw's 15 Amp motor delivers no-load speeds of 3,800 RPM for quick, accurate cuts in many materials. For added convenience and versatility, the saw is compatible with a variety of 12in. blades and it has a clear lower guard to provide unobstructed cut-line visibility. The GCM12SD provides easy adjustments with upfront bevel and miter controls and detents at common angles. The saw's all-metal bevel lock lever and range selector are located up front to make bevel adjustments easy.
Features
The Bosch GCM12SD is a 12in. Dual-Bevel Glide miter saw that features a smooth cutting motion, accurate performance and a space-saving design of the Bosch-exclusive Axial-Glide system

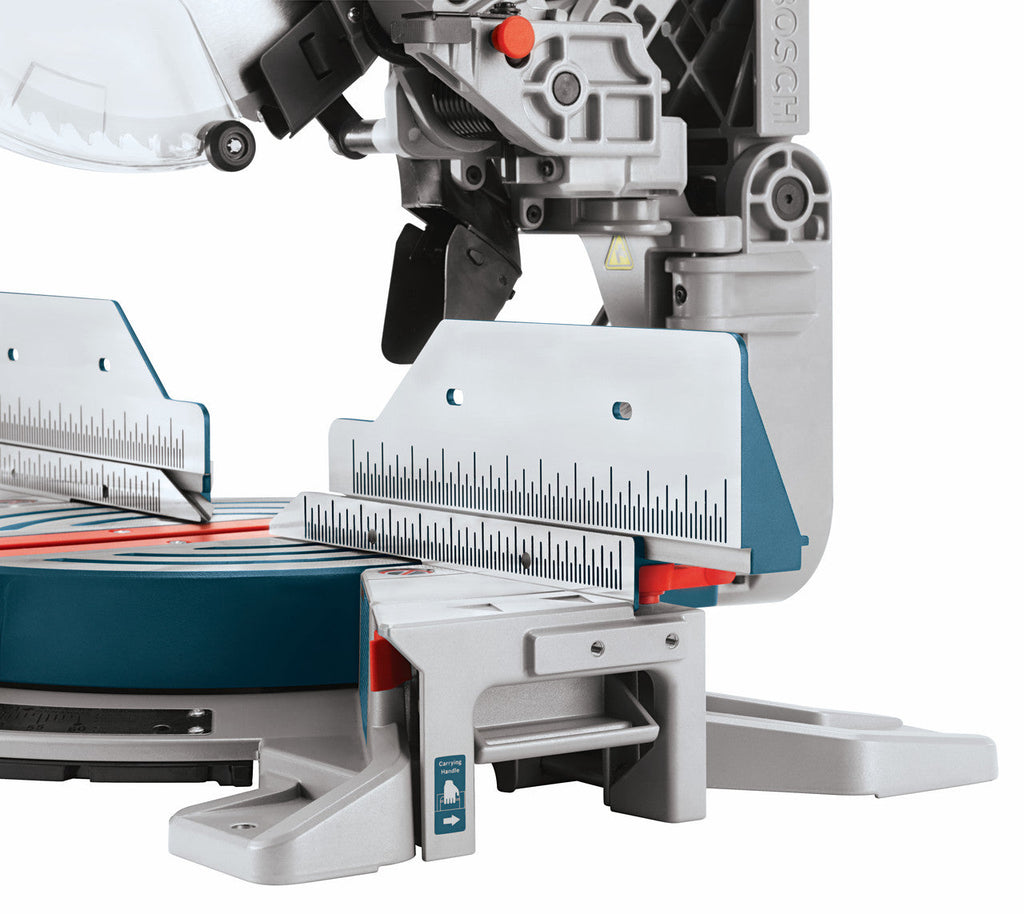

Pre-aligned Square lock fences help the saw maintain precision throughout its life
A soft-grip ambidextrous handle along with a combination dust chute and vacuum adaptor add to user comfort
The saw also offers a large cutting capacity, easy-to-read bevel and miter scales with detents at common angles, and easy-access upfront controls
Integrated expanding base extensions: 60% more left-to-right material support than leading competitor - 40 In. left to right

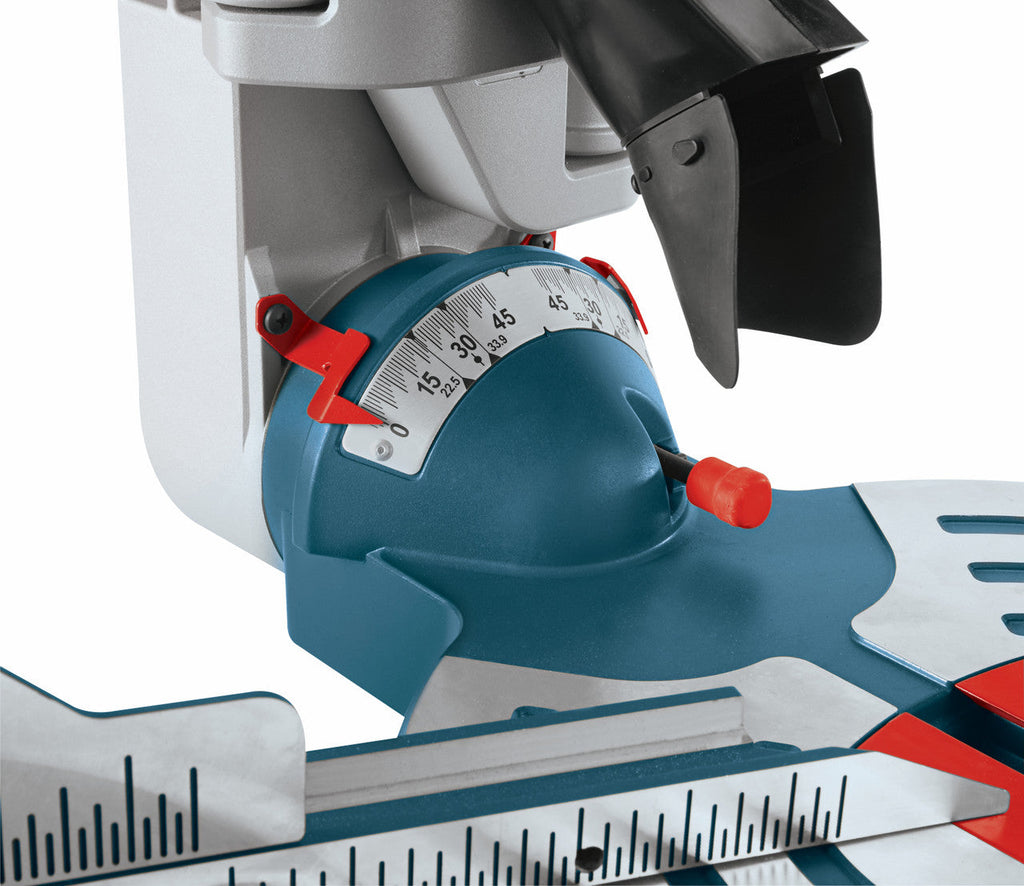

Large easy-to-read uniform bevel & stainless steel miter scales: 52° left/60° right miter capacity; 47° left/47° right bevel capacity with marked detents and roof pitch angles
Adjustable miter detents: detents at 0°, 15°, 31.6°, 22.5°, 45°, 60° right super-accurate and durable design
Push-button miter Detent override - easy-to-access thumb actuated control right up front for fine miter angle adjustment
Bevel detents: 0, 33.9°, 45° left/right for accurate cuts
Category best 90% dust collection - optimized for cutting 2x material with a vacuum
Ergonomic ambidextrous trigger handle with soft grip - large form fitting ergonomic handle provides comfort for all-day use
Includes
(1) 12in 60T Blade
(1) Material Clamp
(1) Dust Bag
Specifications
Amperage 15.0
Bevel Angle Range 48° left and 48° right
Bevel Stops 0°, 33.9°, 45° Left/Right
Blade Diameter 12in
Dust Collection Yes
Length 32.375in
Miter Angle Range 52° Left, 60° Right
Miter Detents 0°, 15°, 22.5°, 31.6°, 45° (Left/Right)
Miter Positive Stops 0°, 15°, 22.5,° 31.6°, 45° (Left/Right), 60° (Right)
No Load RPM 3,800
Voltage 120V
Weight 65.0lb
Width 26.5in
