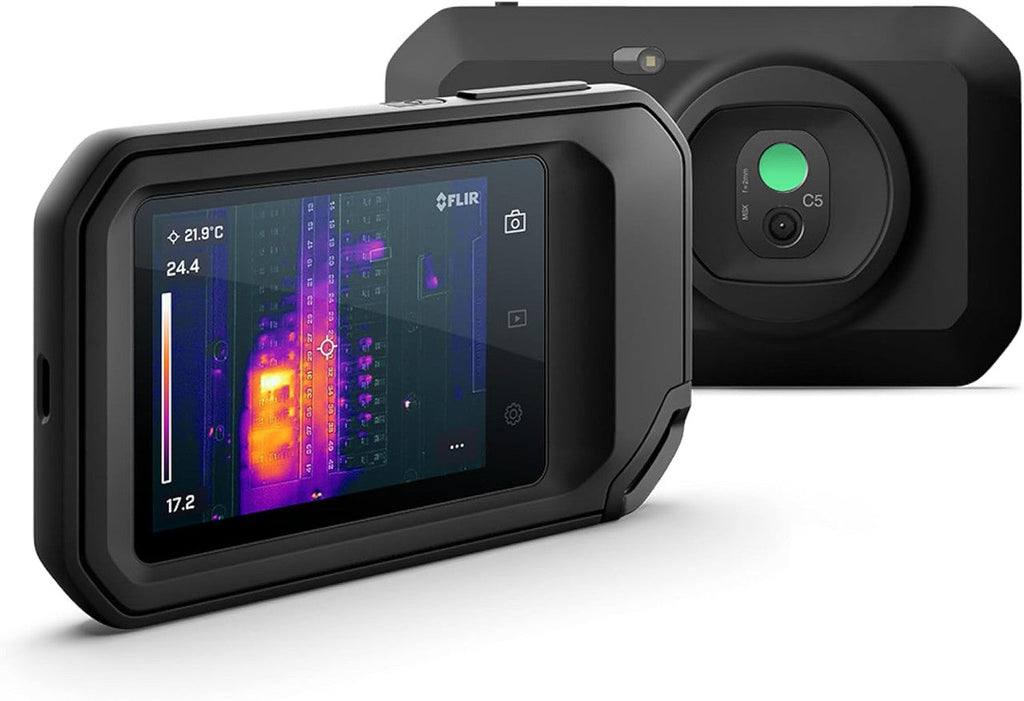

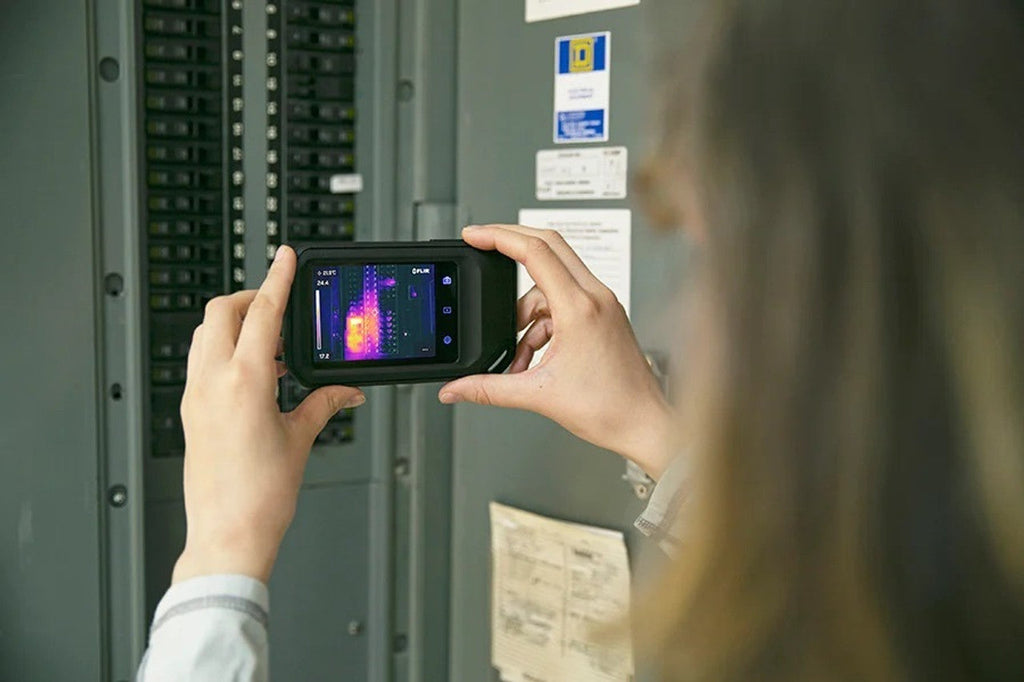

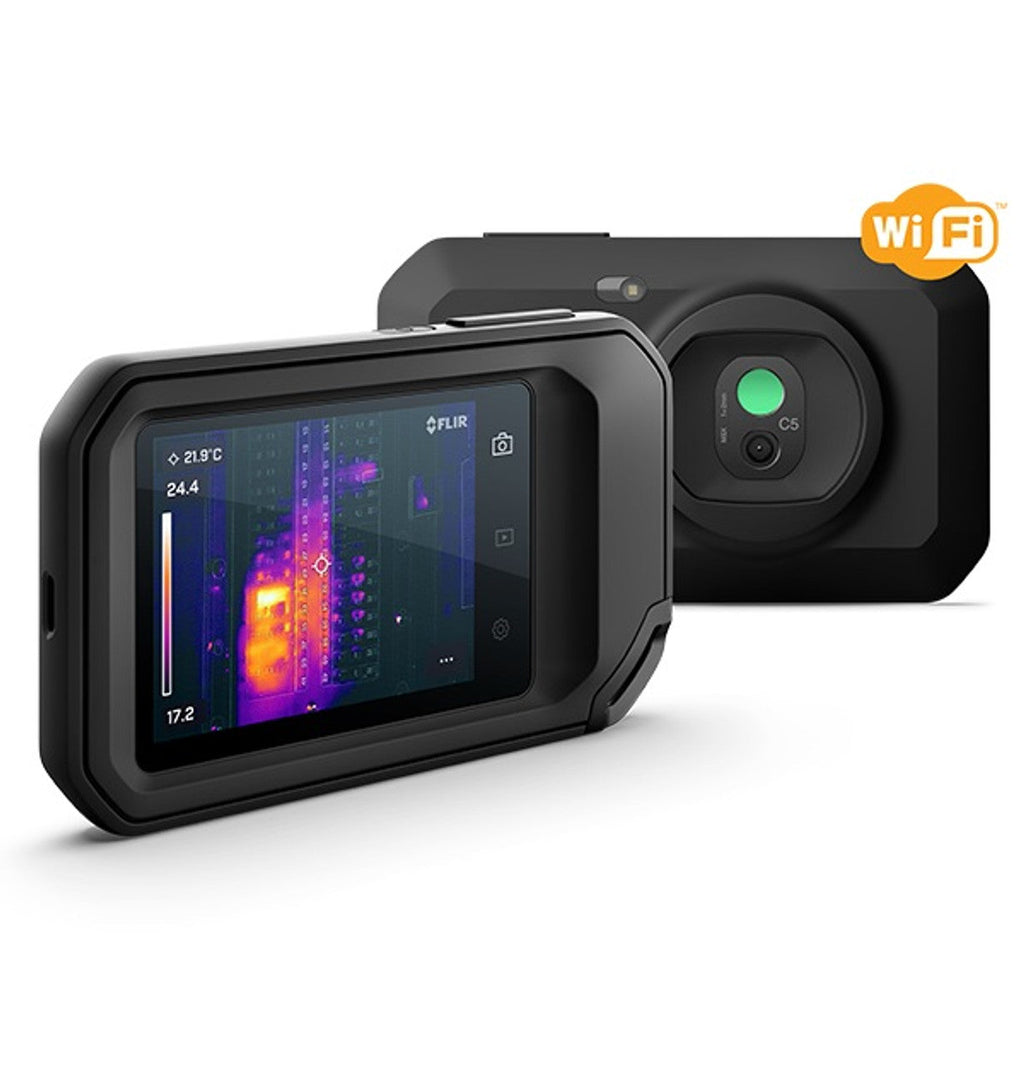

With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 x 120 (19,200 pixels) true thermal imager, MSX (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.
Inspect, document, and share quickly with cloud connectivity and Wi-Fi
Find and Troubleshoot
Quickly find hidden faults and reduce diagnostic time thanks to MSX, 160 x 120 true thermal imaging, and 1-Touch Level Span
Document and Share
Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers
Rugged, Reliable and Compact
Take the pocket-portable C5 with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop
FLIR Ignite
Improve your team's efficiency and capabilities with the FLIR Ignite cloud solution. Directly upload, organize, and share images from your Wi-Fi connected FLIR C5. Keep your data safe in one place and easily accessible from any device. Visit the FLIR Ignite page below in the Related Content section for more details.
Overview
Accuracy: At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
Object Temperature Range: -20 to 400°C (-4 to 752°F)
IR Sensor:160 x 120 (19,200 pixels)
Touchscreen: Capacitive touch
Screen Rotation Yes
FLIR Screen-EST Mode No
Connections and Communications
Bluetooth PAN
Storage Media Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
USB USB 2.0, Type-C connector
Wi-Fi 802.11 a/ac/b/g/n (2.4 and 5 GHz)
Image Upload Directly upload images to FLIR Ignite cloud library and services
Environmental
Drop test 2 m (6.6 ft)
Encapsulation Camera housing and lens: IP54 (IEC 60529)
Operating Temperature Range -10 to 50°C (14 to 122°F)
Storage Temperature Range -40 to 70°C (-40 to 158°F)
Tripod Mounting UNC 1/4in-20 (built-in)
Imaging and Optical
Color palettes Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Digital Camera 5 MP
Digital Camera Focus Fixed
Focus Focus free
Gallery Thumbnails and custom folder structure
Image Adjustment Automatic level and span, Manual level and span, 1-Touch Level/Span
Image Frequency 8.7 Hz
Image Modes Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Minimum Focus Distance Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)
Spectral Range 8 to 14 µm
Measurement and Analysis
Measurements correction Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
Thermal Sensitivity <70 MK
Measurement Functions Spot, Box with max./min.
Meter Data
Camera size (L x W x H) 138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
Physical Features
Screen Size:3.5 in
Weight [including battery]:0.19 kg (0.42 lb)
Power
Battery operating time:4 hours
Battery type: Rechargeable built-in Lithium ion battery
Charging system: USB-C (1 A)
Charging Time:2 hours
External Power Operation:5 V, USB-C
Storage Media
File Formats: Standard JPEG, 14-bit measurement data included
Image Storage:>5000 images
