Proven By Pros, Ultra Cordless sprayers provide the fastest way to finish small jobs. Deliver a perfect airless finish in seconds with fast, easy setup and the easy-to-clean design reduces cleanup to just a few minutes so you get to the next job quicker.
Features
Triax Triple Piston Pump
Durable carbide piston built to deliver extended reliability and full tip support
The most durable, lightest weight pump
Fast, on-the-job pump replacement with Pro-Connect

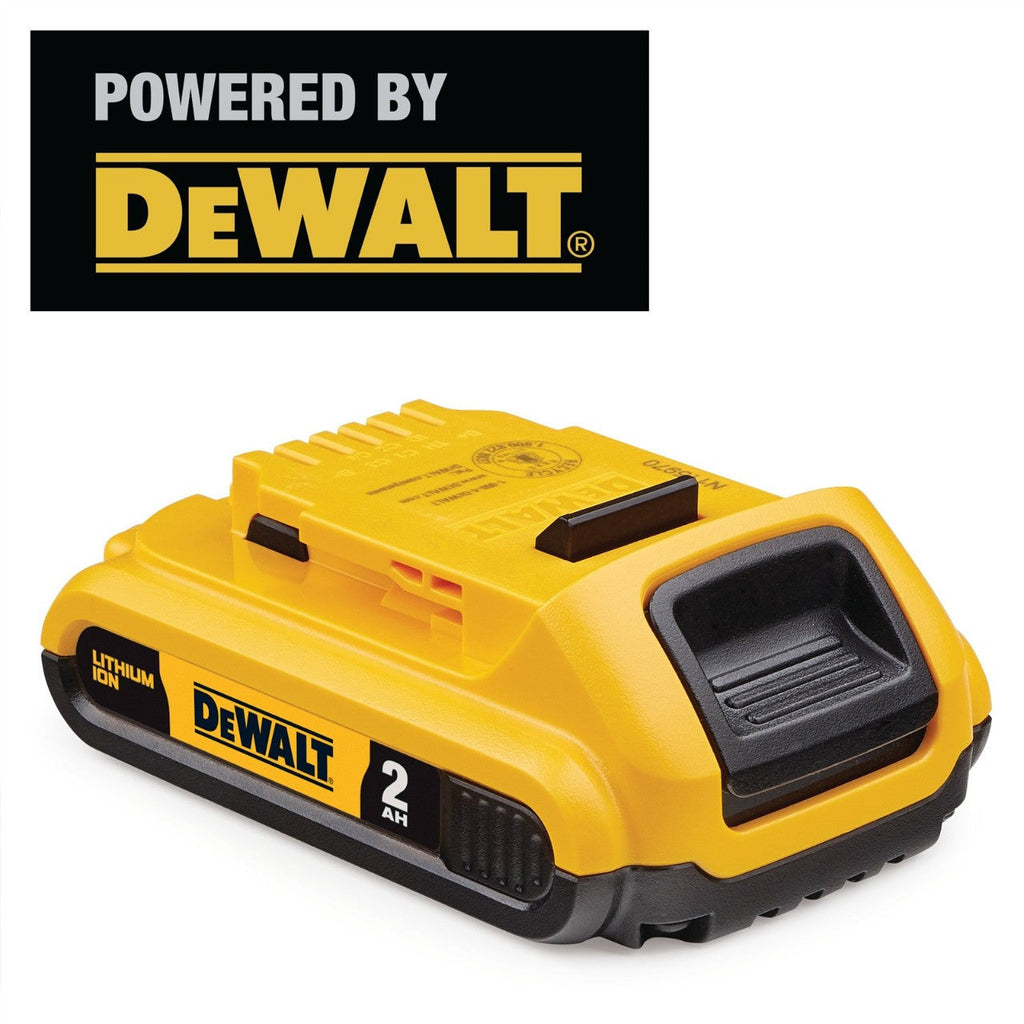

DeWalt 20V MAX Lithium Ion Battery System
Spray up to 1 gallon with each charge
Compatible with any DeWalt 20V MAX Lithium Ion battery
Comes standard with 2 batteries and charger
3-LED fuel gauge system allows immediate feedback on state of charge
Lightweight design and 30% faster charge time (35 minutes)
Pro-Connect
On-The-Job Pump Replacement System
One Tool Replacement - Replace the pump in 3 steps using only a screwdriver
Smart-Control
Spray at any hand speed with professional finish every time
Precision pressure control delivers a consistent spray fan without pressure fluctuations

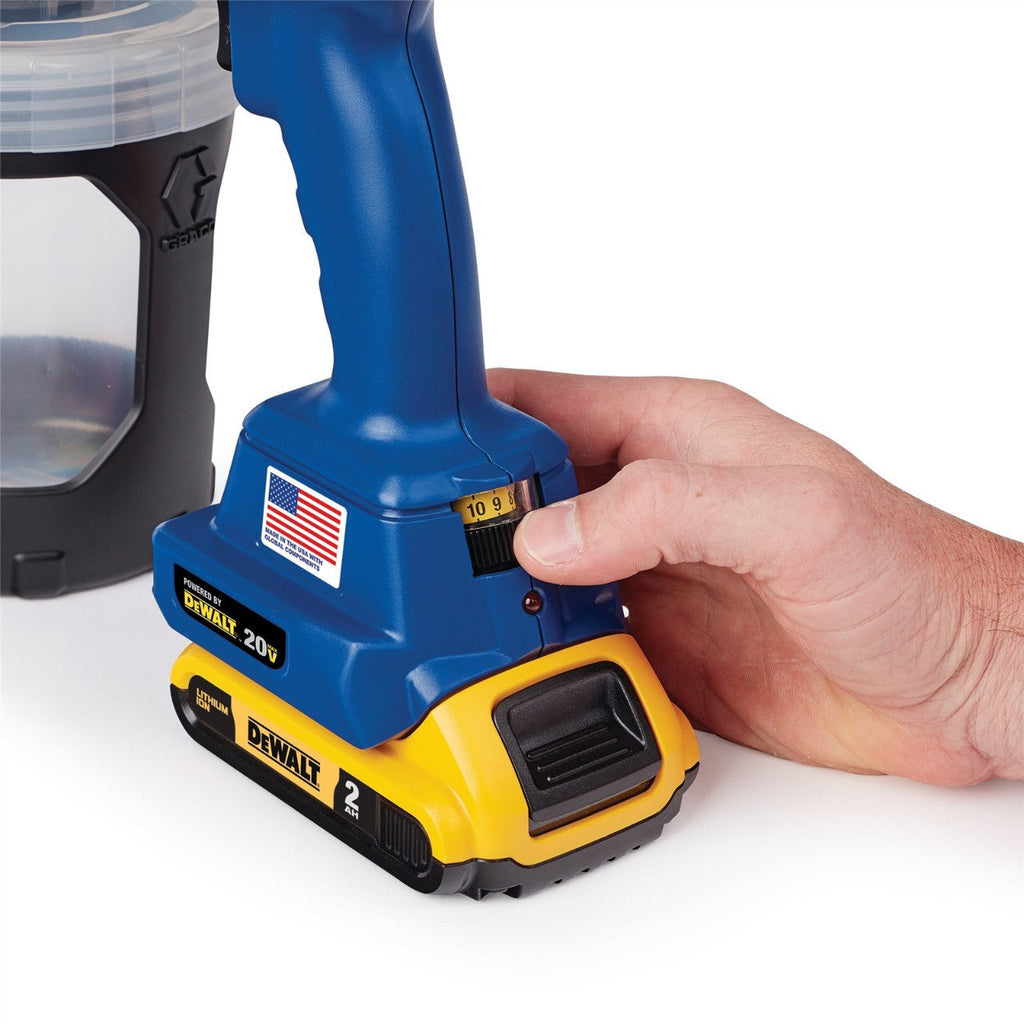

Pro-Control II
Adjust motor speed to spray at any speed the job demands
More control to deliver a professional finish – every job, every time
RAC X FF LP Tips
Provides superior finish at low pressure
Reverse-A-Clean (RAC) Switch-Tips make cleaning tip clogs simple
Large range of sizes available to meet the job requirements
Works on all Graco Airless Sprayers – handhelds to large airless
32 oz Flex-Liner Paint Bags
Fast cleanup with disposable liners and no suction tube to clean
Easy Setup
Includes
RAC X FF LP 514 Spray Tip
RAC X Guard
4 - 32 oz Flex-Liner Bags
2 - DEWALT 20V MAX 2.0 Ah Lithium Ion Batteries
DEWALT 20V MAX Battery Charger
60 Mesh Filter

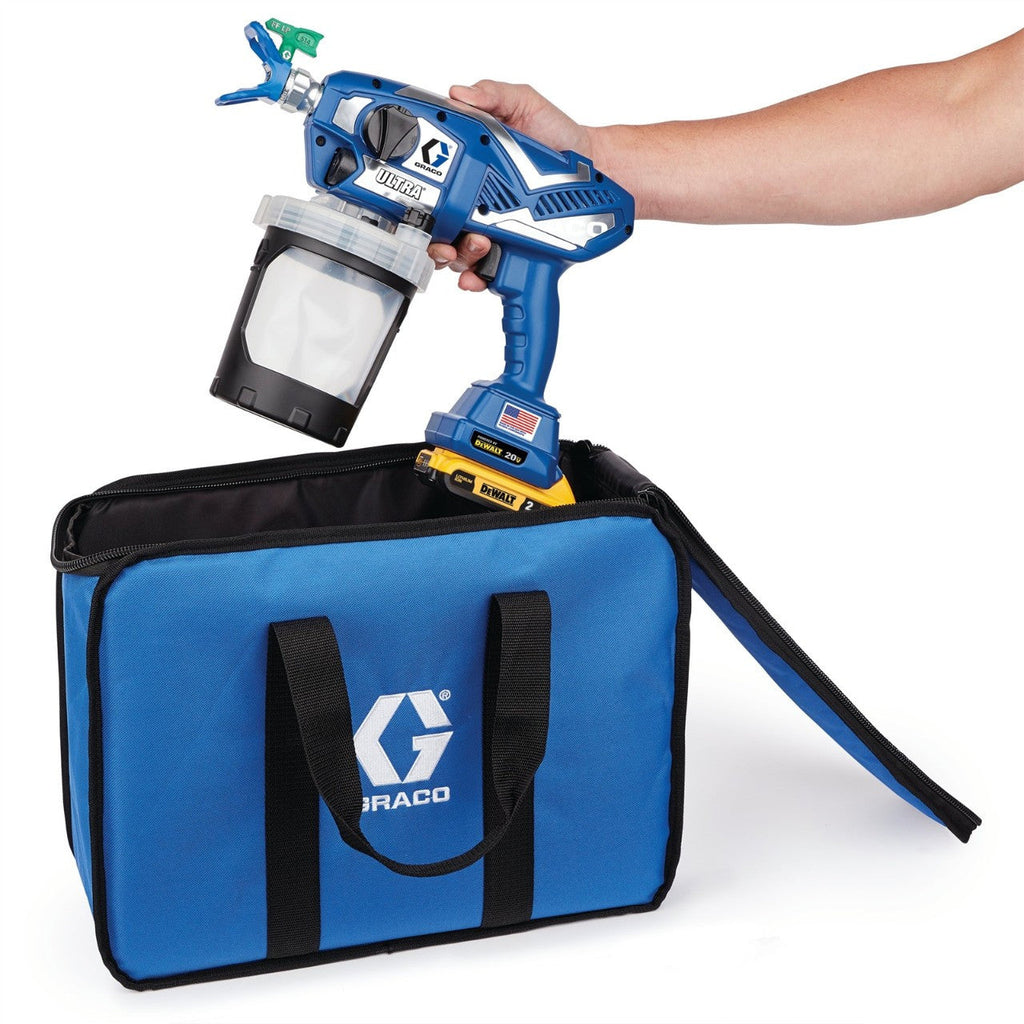

Storage Bag
Pump Armor 4 oz
Specifications
Battery Capacity (Ah): 2
Battery Chemistry: Lithium-ion
Battery Voltage (V): 20
Charging Time (min): 35
Compatible Material: Primer, Stains, Water-Based Paint, Acrylics, Enamel, Latex
Filter Mesh Size: 60
Frame Configuration: Handheld
Maximum Tip Size (in): 0.016
Maximum Working Pressure (psi): 2000
Minimum Working Pressure (psi): 500
Model: Ultra
Overall Height (in): 10.5
Overall Length (in): 14
Overall Width (in): 5
Power Source: Battery Powered
Pressure Control Type: Pro-Control II
Pump Type: Triax Triple Piston
Series: Cordless
Type: Handheld Cordless Airless Sprayer
Weight (kg): 0.2384
Weight (lb): 5.25
