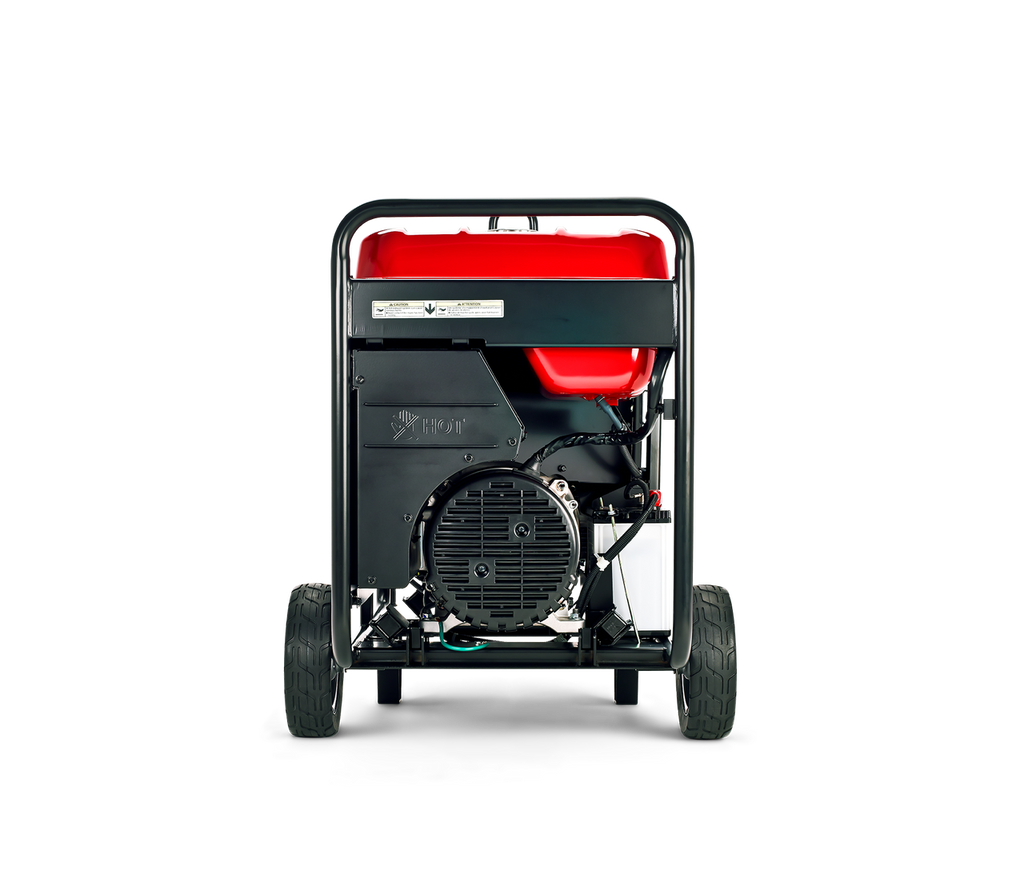

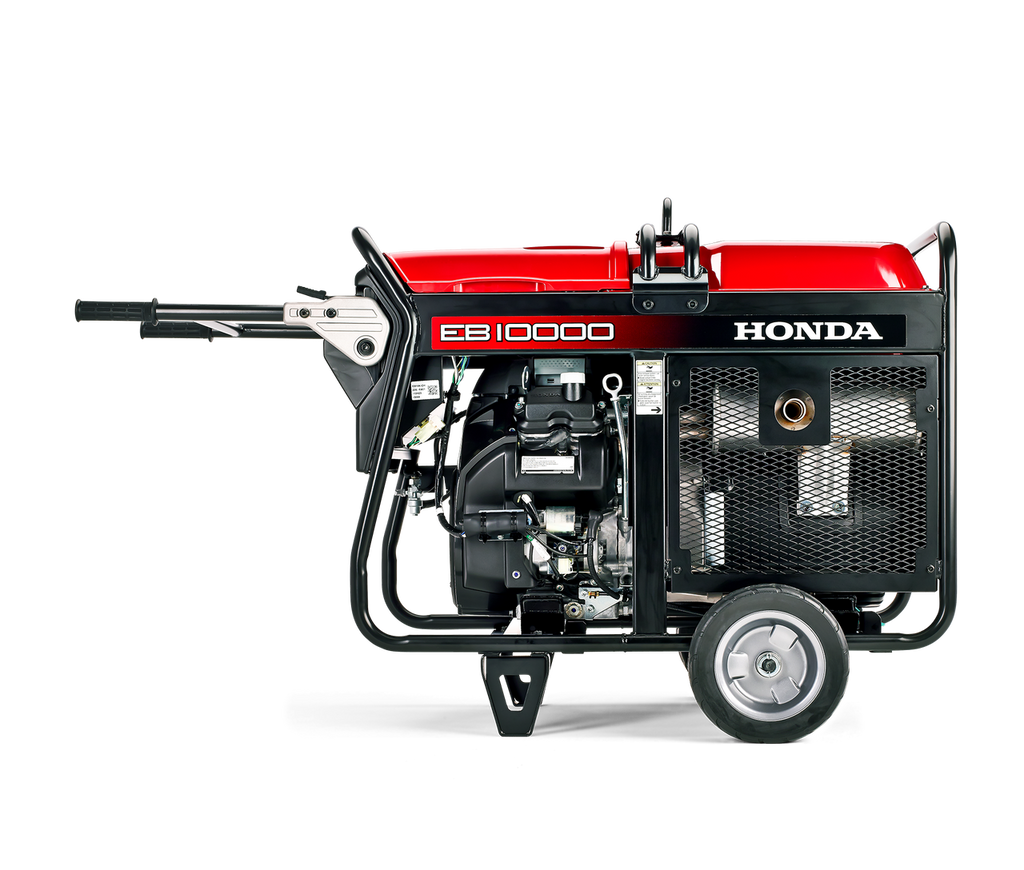

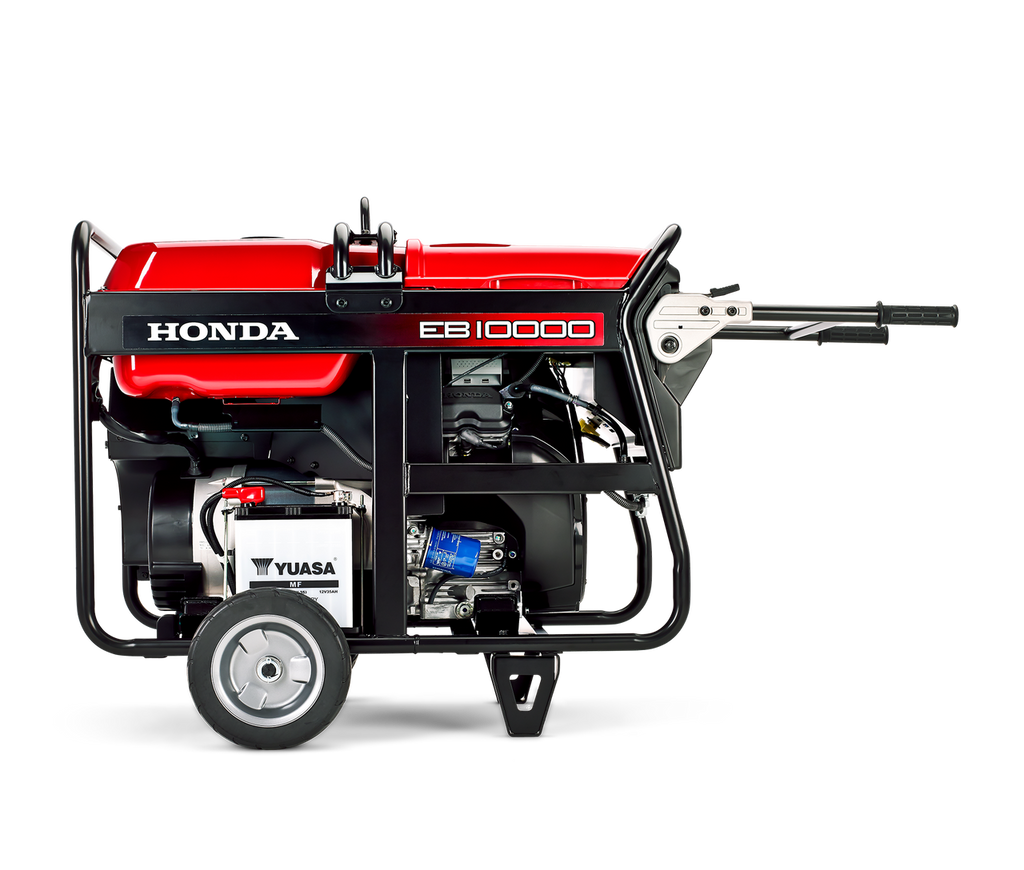

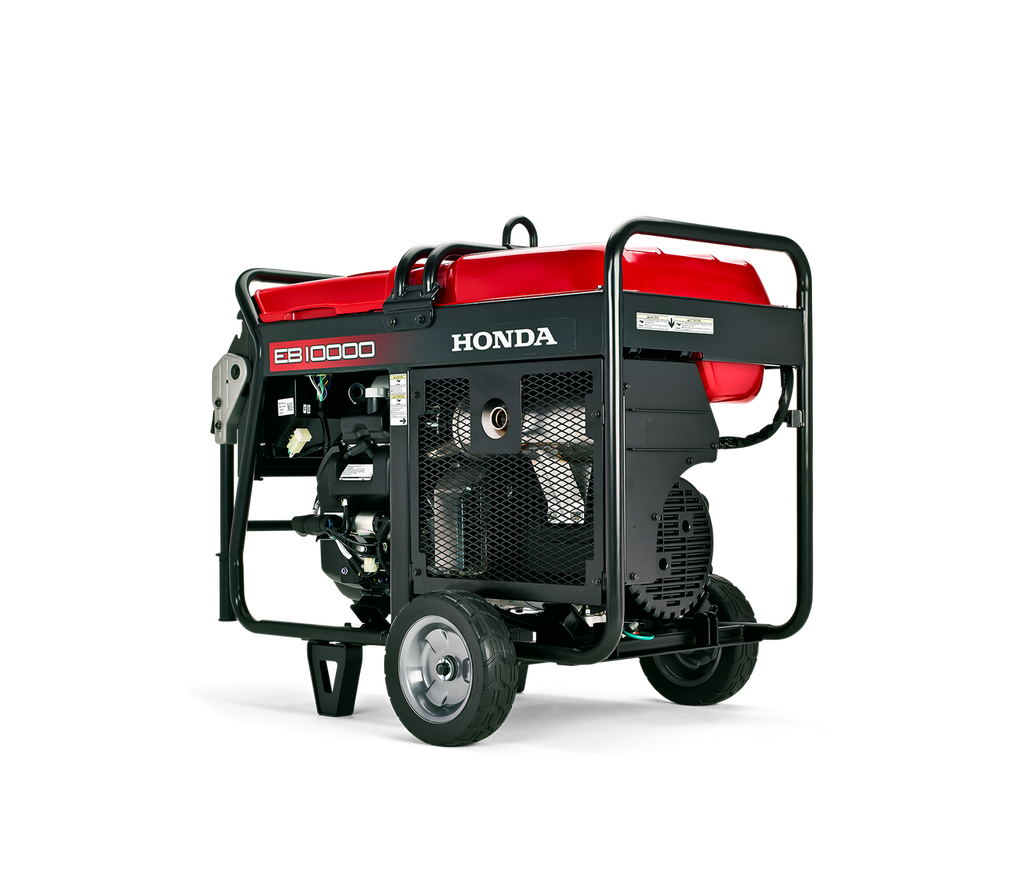

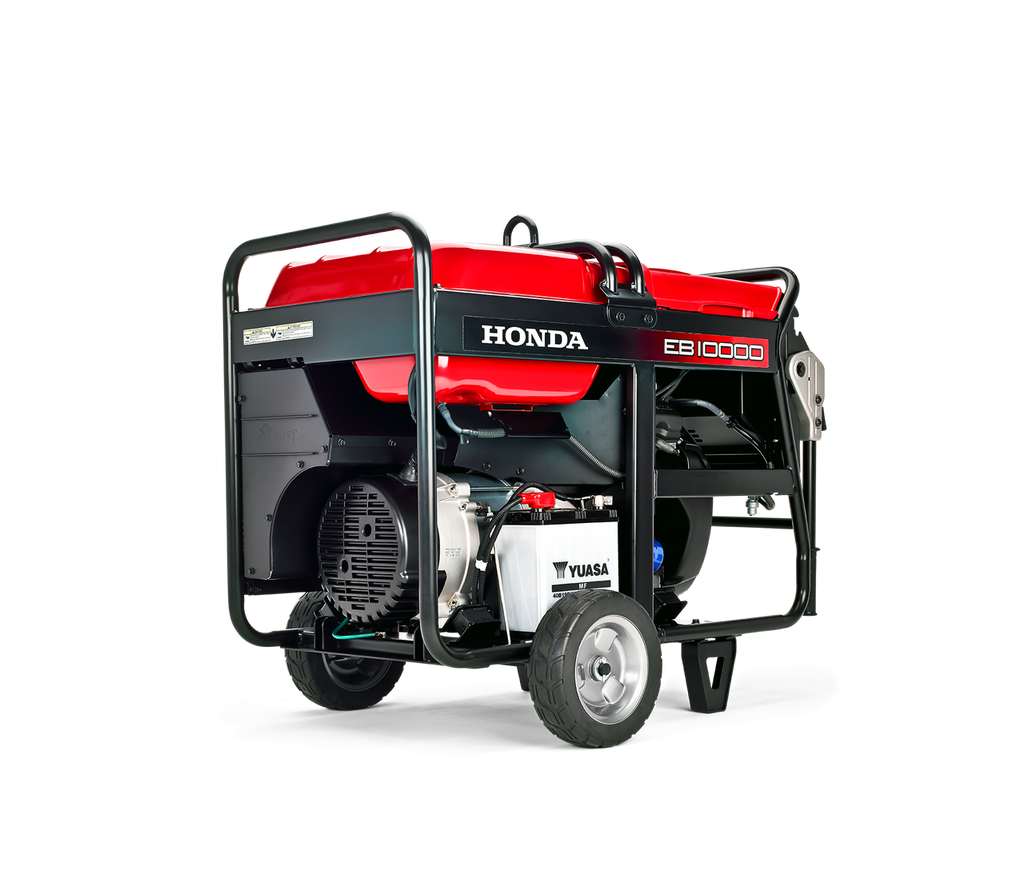

The EB10000 is well suited for industrial and commercial applications such as construction. It is also a perfect fit for the rental market, where users demand the most reliable power.
Features
10,000 watts of power with dual-voltage configuration and ground fault circuit interrupter (GFCI) protection across all duplex receptacles
Convenient 12 VDC electric start (battery included)
Best fuel efficiency and lowest noise rating in its class
Auto-throttle further extends running time by automatically adjusting engine speed to idle when no load is applied
31-litre fuel tank provides up to 6.5 hours of continuous power at maximum rated output, or up to 8.5 hours at 50% output
Patented frame design that clearly delineates its hot and cool operating parts featuring a narrow-shaped design (control panel positioned on the narrow side of the generator), and a centralized exhaust mechanism
Cold Climate Technology aids continuous running in cold weather conditions
Specifications
Generator Type: Brush type
Maximum AC Output (Watts): 10,000
AC Voltage Available: 120 / 240
Maximum Continuous AC Output (Watts): 9,000
Max. Rated AC Amperage @ 120 V / 240 V: 37.5 x 2 (75) / 37.5
Ground Fault Circuit Interrupter (GFCI): Standard
Frequency (Hertz): 60
Automatic Voltage Regulator: Standard DAVR (Digital Automatic Voltage Regulator)
DC Output Volts / Amps: N/A
Common Duplex Receptacle Specifications: 40 amps/120 VAC continuous is available as combined total from these twin duplex AC receptacles. Maximum of 20 amps available from each GFCI duplex receptacle.
DC Receptacle Specifications: N/A
DC Charging Cable: N/A
High Capacity 120 / 240 VAC Twist Lock Receptacle Specifications: This receptacle will supply 30 amps at 120 VAC continuously. This receptacle will supply 30 amps at 120/240 VAC continuously. This receptacle will supply 37.5 amps (9 kVA) at 240 VAC or 50 amps (6 kVA) at 120 VAC continuously.
Engine
Engine Type: Honda GX630H OHV, 90°V-Twin design, 4-stroke, air-cooled
Displacement: 688 cc
Starting System: Electric
Low Level Oil Alert System: Standard
Auto Throttle: Standard
Remote Start Capability: No
Fuel Tank Capacity: 31 liters (6.82 Imp. gal.)
Additional Info
Transport Wheels: 2 Wheel standard
Lifting Hook: Standard
Battery: Standard
Approximate Running Time (hrs.) / Tankful: 6.5
Rated Fuel Consumption (liters/hr.): 4.77
Noise Level dB(A) (1.5 m to 7 m): 72
Length (Without Handles and Wheels): 973 mm (38.3 in.)
Length (With Handles and Wheels): 1,420/1,041 mm (55.9/50 in.)
Width (Without Handles and Wheels): 552 mm (21.7 in.)
Width (With Handles and Wheels): 703 mm (27.7 in.)
Height (Without Lift-Hook): 695 mm (27.4 in.)
Height (With Lift-Hook): 891 mm (35.1 in.) standard
Dry Weight: 183 kg (403.4 lbs.)
Cold Climate Technology: Standard
