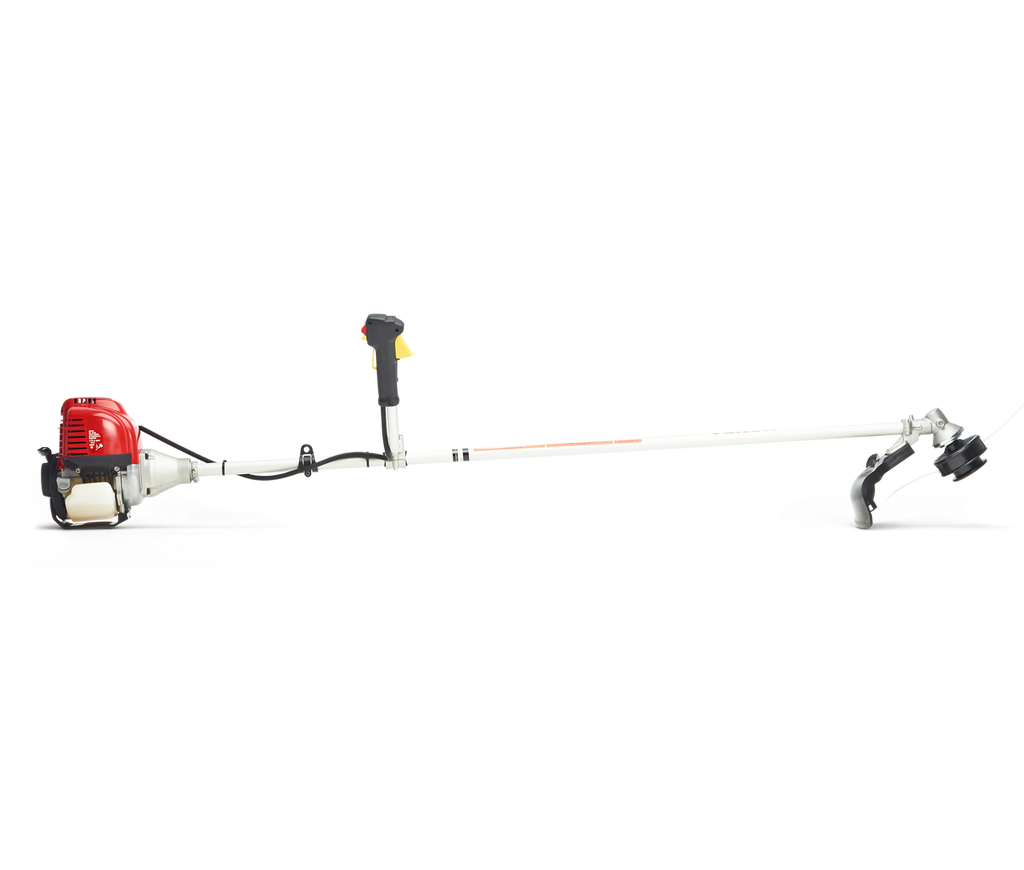

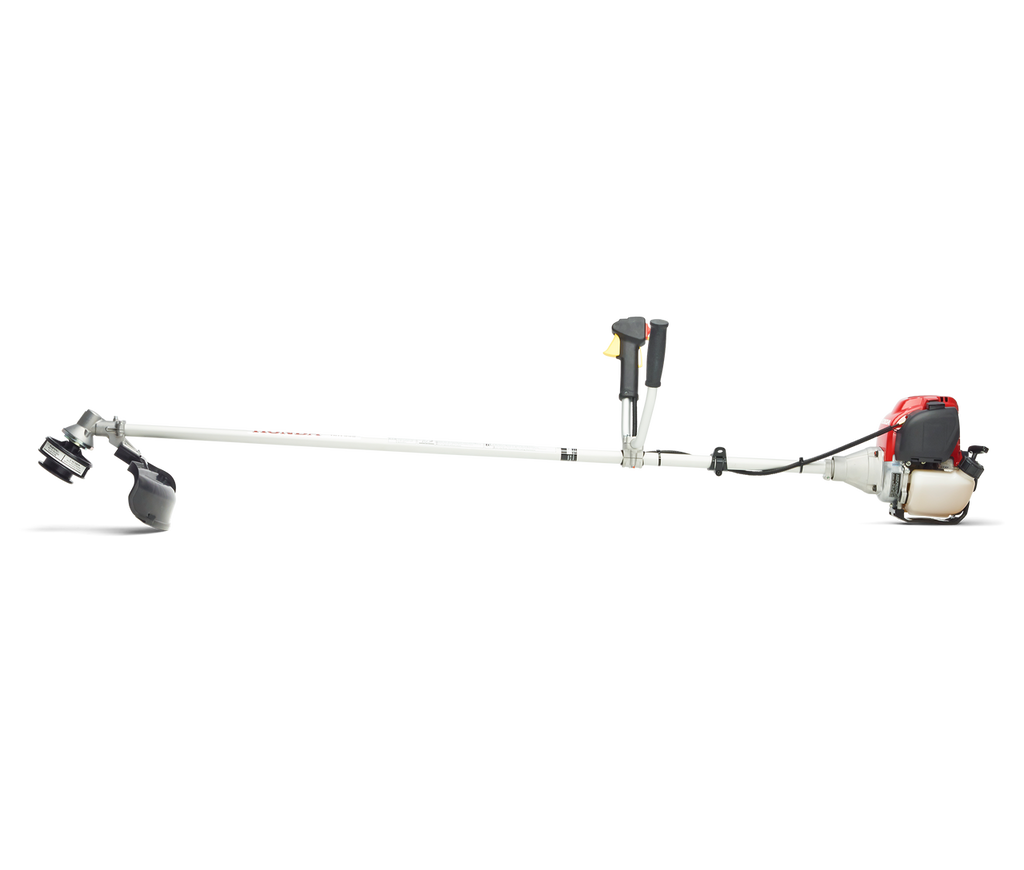

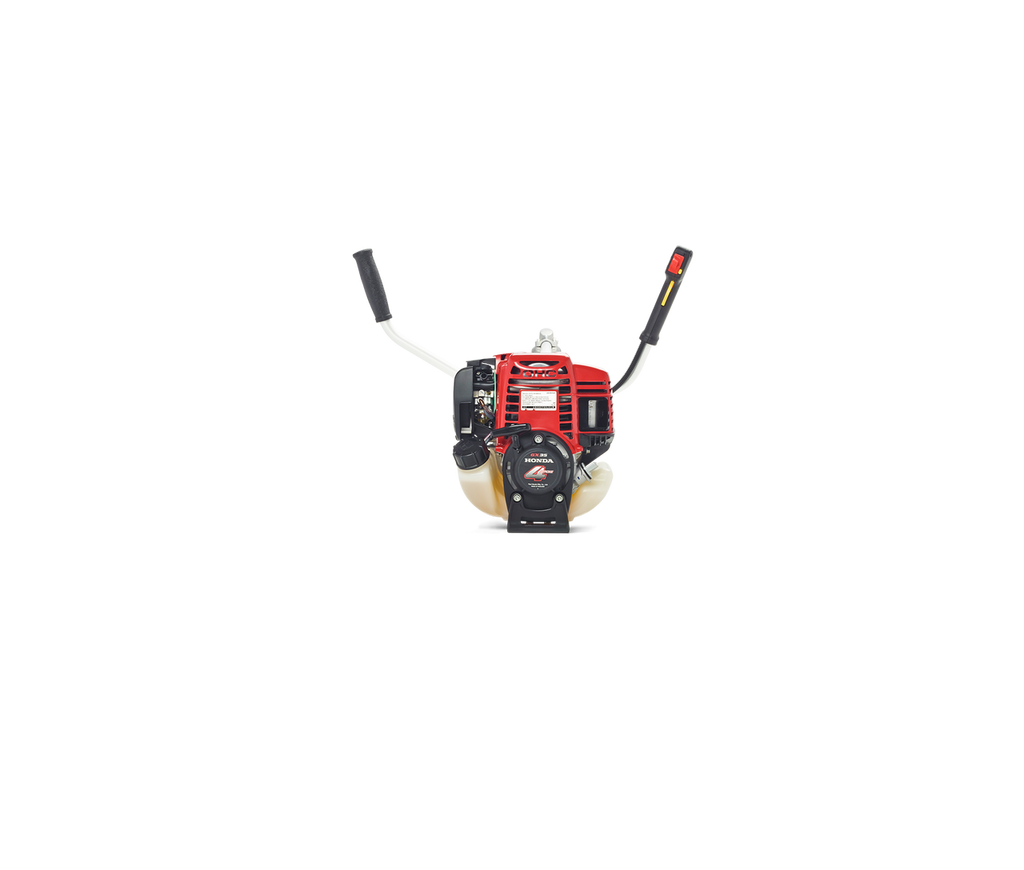

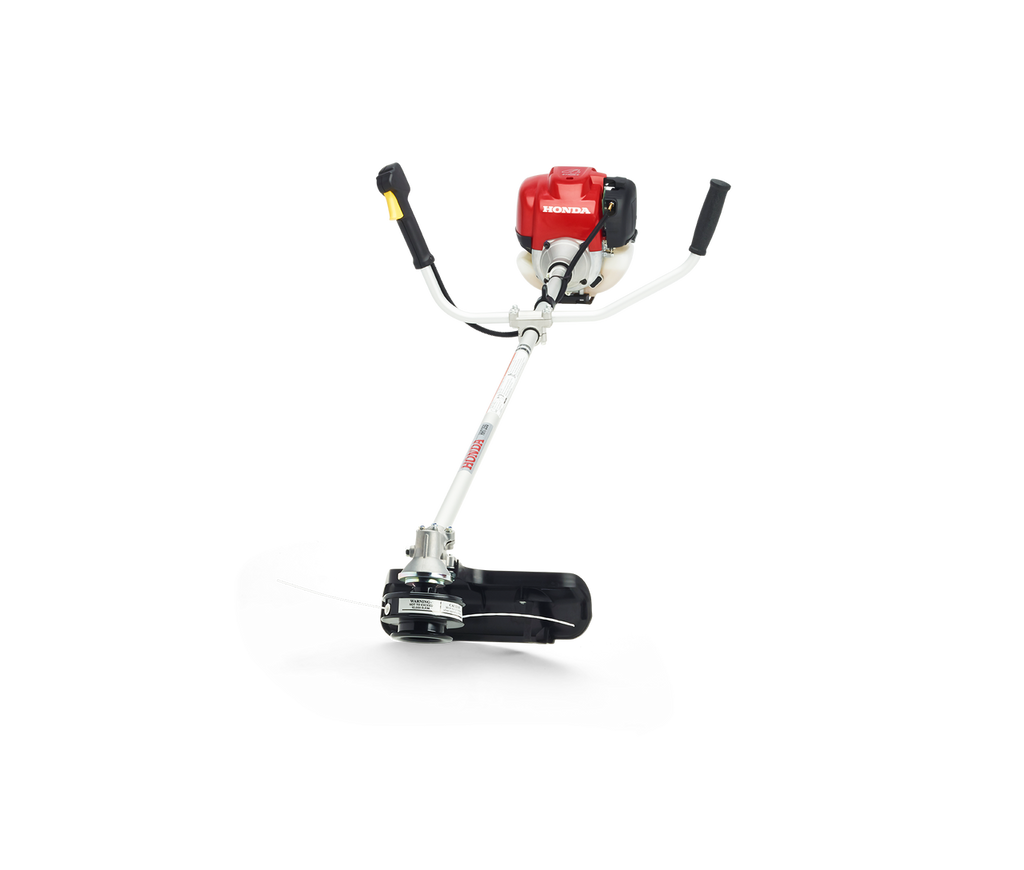

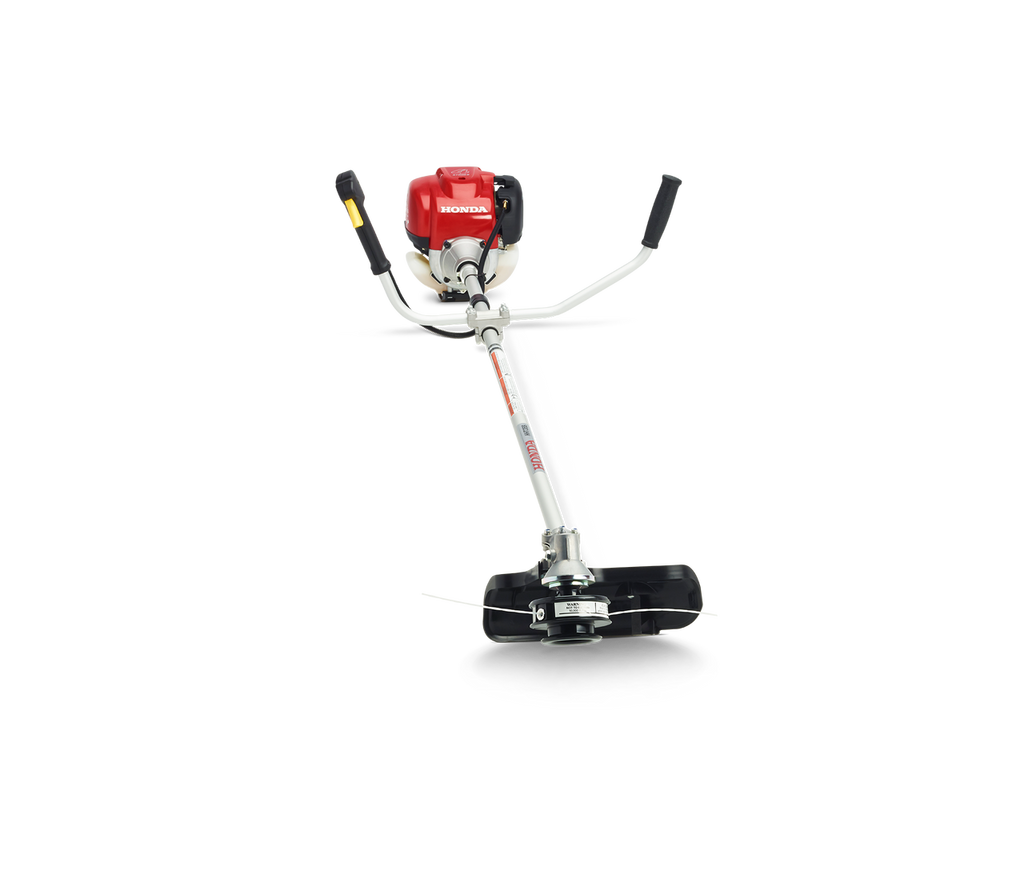

Delivers both power and comfort with the GX35 4-stroke engine and standard bike-type handlebars.
Features
Versatile and heavy-duty for tough trimming needs
Includes manual line feed head and brush-cutting 50-tooth sawblade with blade guard and mounting hardware, as well as professional double-loop harness and protective goggles
Bike-type handlebars for increased leverage, control and comfort
35 cc Honda GX35 OHC Mini 4-stroke engine
Lightweight and maneuverable
Flex shaft for increased durability and superior shock absorption
Specifications
Engine Type: Honda GX35, mini 4-stroke, OHC, single cylinder air-cooled multi-position (360°)
Honda Engine Model: GX35
Displacement: 35.8 cc (2.18 CID)
Bore & Stroke: 39 X 30 mm (1.5 X 1.2 in.)
Maximum Net Torque: 1.6 NM (1.20 lbf-ft.) @ 5,500 RPM
Idle Speed: 3,100 ± 200 RPM
Max. No-Load RPM* (Requires Blade Barrier): 10,000 RPM
Ignition System: Transistorized flywheel magneto (electronic)
Spark Plug: CMR5H (NGK)
Cooling System: Forced air
Starting System: Recoil starter
Stopping System: Ignition primary circuit ground
Carburetor: Diaphragm type w/fuel pump
Recommended Fuel: Regular unleaded gasoline (87 Octane)
Fuel Primer: Anti-flood type
Fuel Capacity: 0.65 L (22.9 fl. Imp. oz.)
Fuel Consumption (approximate)**: 0.7 L/hr. (0.15 Imp. gal./hr.)
Clutch Drive Type: Centrifugal Twin Shoe-Clutch
Clutch Size: 78 mm (3.0625 in.) Diameter
Clutch Engagement: 4;200 ± 200 RPM
Air Cleaner: Semi-dry type
Lubrication System: Oil mist
Oil Capacity: 100 cc (3.52 fl. Imp. oz.)
Recommended Oil: SAE 10W30 API service classification SJ or later
Dimensions
Overall Length With Cutter Mounted: 190.5 cm (75 in.)
Overall Width: (handlebars) 60 cm (23.6 in.)
Overall Height: 40.5 cm (15.9 in.)
Dry Weight (Without Blade): 7 kg (15.4 lbs.)
Additional Info
Handle Type: U-shaped (bike type handle)
Throttle Control Type: Two-motion trigger type
Engine Stop Switch: Slide type switch
Cutting Head (Standard): Manual line feed nylon
Cutting Head (Optional): Semi-Matic, pro-tap, semi-pro
Cutting Width: 43.2 cm (17 in.)
Line Type: Quiet Line
Cutting Line Diameter: 2.41 mm (0.095 in.) or 2.67 mm (0.105 in.)
Anti-Vibration System: Standard
Drive Shaft Type: Flexible steel cable
Final Drive Gear Case: Helical cut bevel gears / Sealed ball bearings
Gear Ratio: 1.235 Input shaft: 1 (Output Shaft)
Main Pipe Diameter: 25.4 mm (1 in.)
Main Pipe Thickness / Material: 1.5 mm (0.06 in.) / Aluminum
Trimmer Guard With Cutter: Standard
Steel Blade Guard: Standard
Shoulder Harness: n/a
Professional Double Loop Harness: Standard
Safety Goggles (A.N.S.I Std.): Standard
