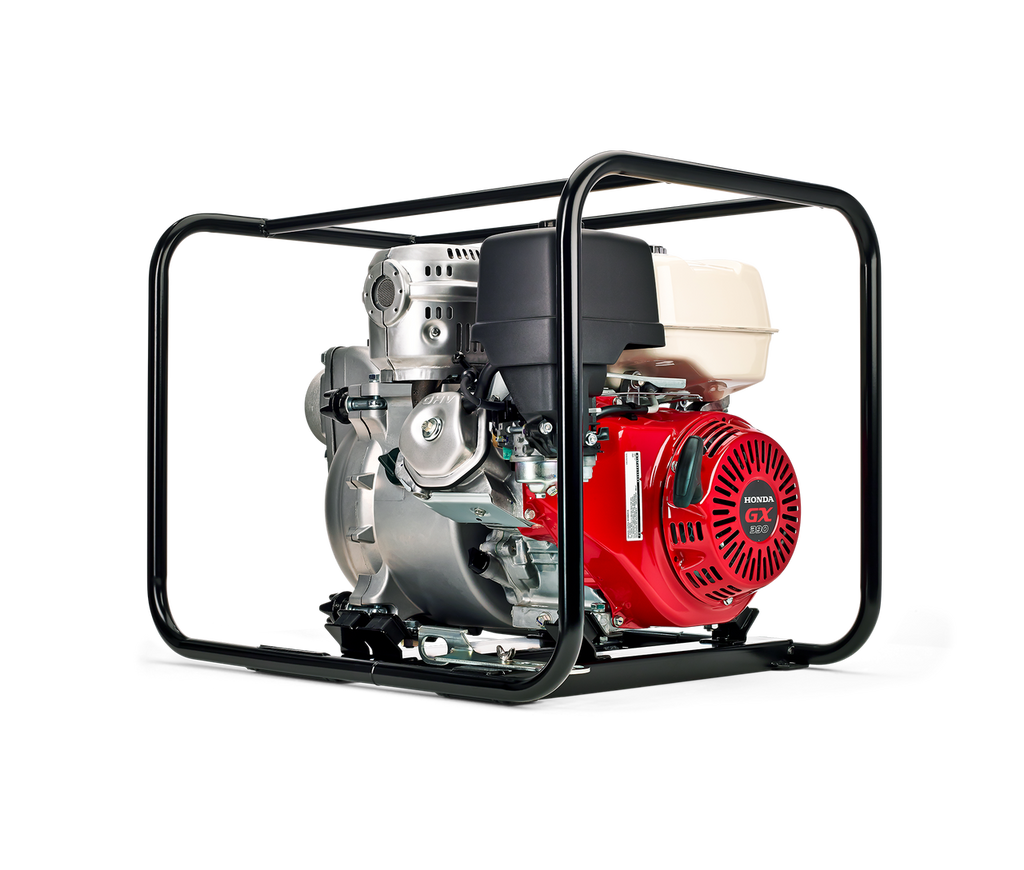

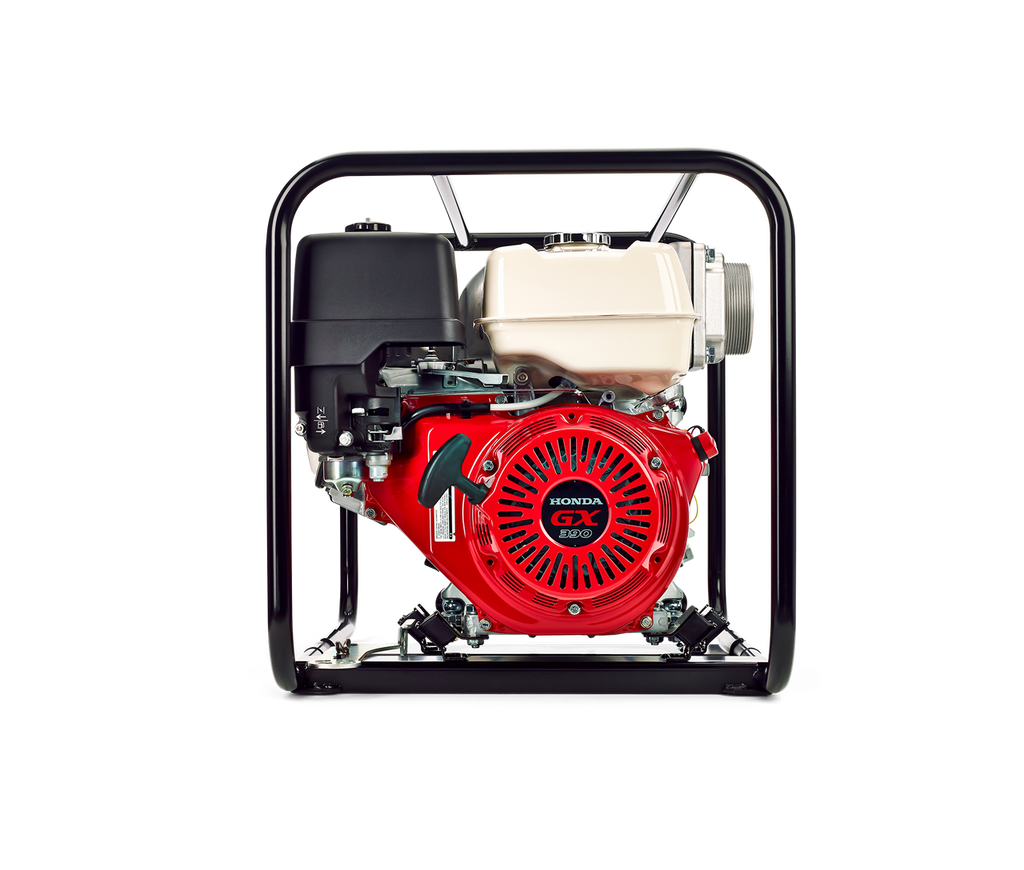

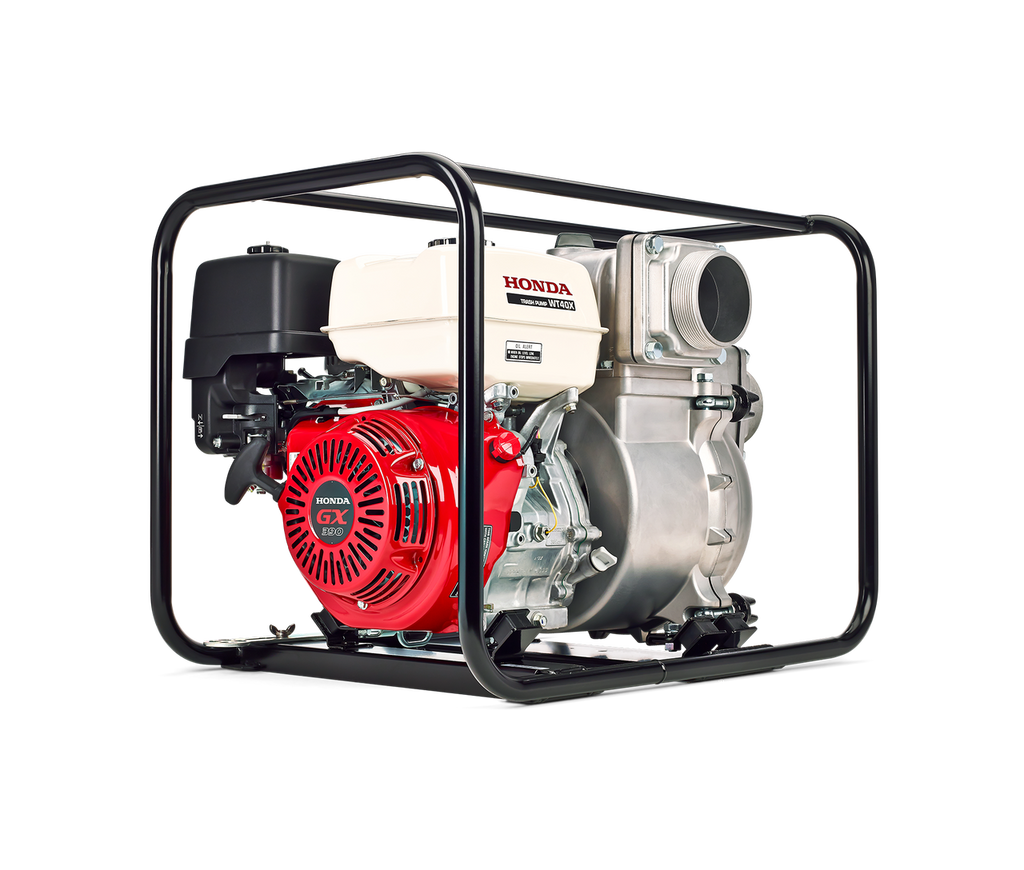

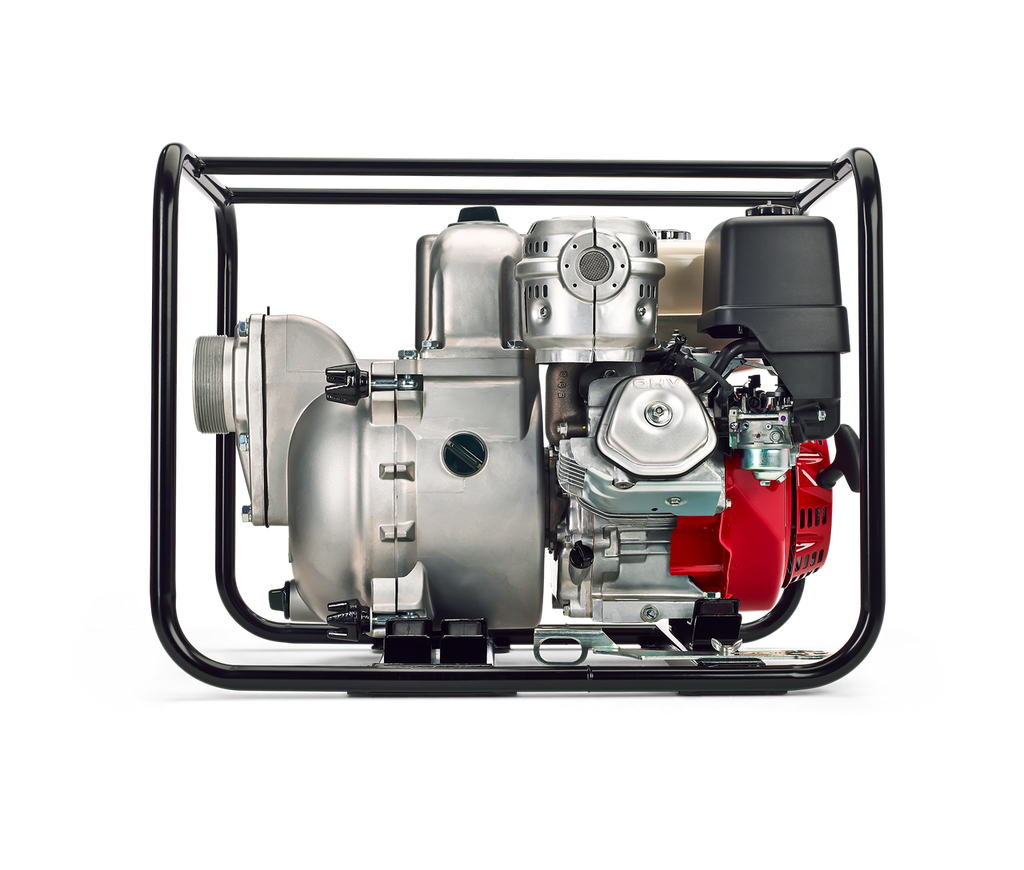

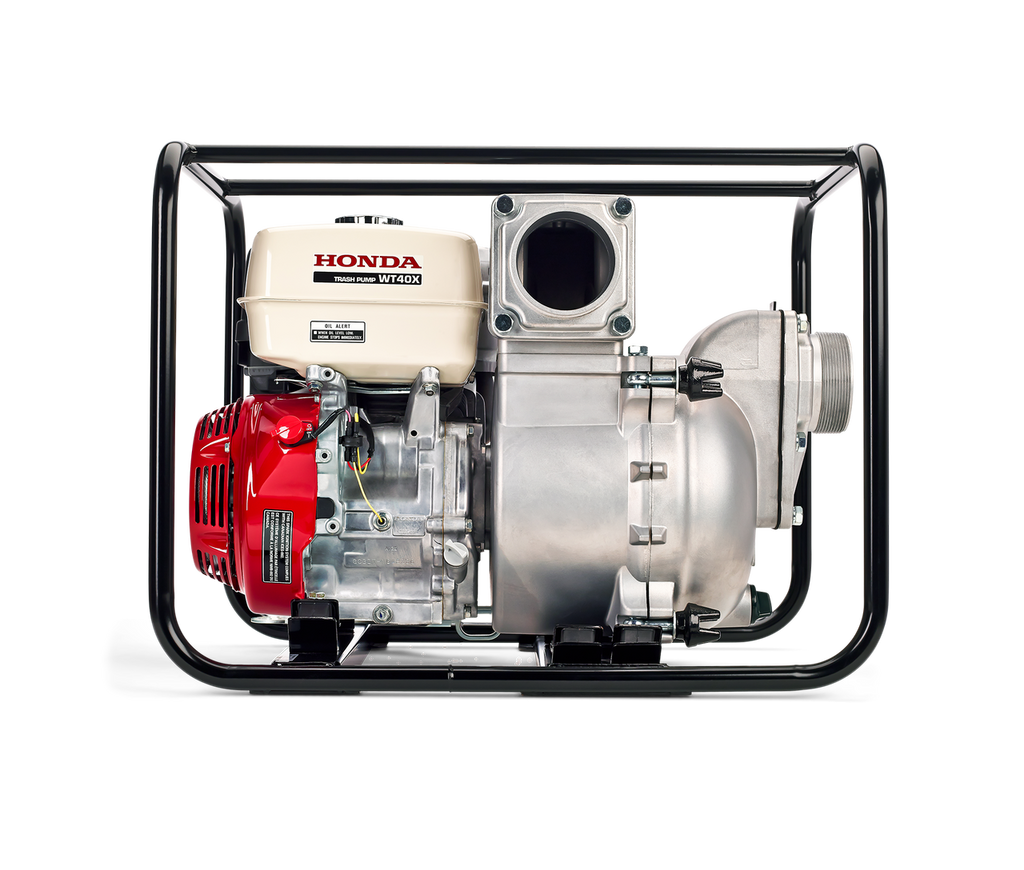

A 100 mm (4 in) pump capable of pumping water containing rocks and debris at 1,640 liters per minute.
Features
Heavy-duty, deep-vane impeller and extra-thick, cast-aluminum pump housing
Moves up to 1,640 liters (361 Imp. gal.) per minute through 100 mm (4 in) suction and discharge ports
If oil drops below a safe operating level, the engine automatically shuts down with Oil Alert System
Full-frame construction with anti-vibration mounting system helps prevent sinking into soft ground
Specifications
Water Pump Type: Trash
Pump: Centrifugal
Type: Self-priming
Suction Port Diameter: 100 mm (4 in.)
Discharge Port Diameter: 100 mm (4 in.)
Liters Per Minute: 1,640
Imp. Gal. Per Minute: 361
Liters Per Hour: 98,400
Imp. Gal. Per Hour: 21,660
Total Head: 27 m (89 ft.)
Suction Head (Total Lift.): 8 m (26 ft.)
Priming Time @ 5 m (16.4 ft.): 150 seconds
Pump Body: Aluminum
Impeller: Conical cast iron
Drive Unit Type: Direct coupled / mechanical seal
Frame Type: Full frame
Engine
Engine Type: Honda GX390T2, 4-stroke, OHV, single cylinder
Displacement: 389 cc (23.7 CID)
Lubrication System: Forced spray
Governor: Mechanical centrifugal
Starting System: Recoil starter
Fuel Tank Capacity: 6.1 L (1.34 Imp. gal.)
Oil Alert: Standard
Dimensions
Length: 73.5 cm (28.9 in.)
Width: 53.5 cm (21.1 in.)
Height: 56.5 cm (22.2 in.)
Dry Weight: 78 kg (172 lbs.)
