Features
Powerful 1 HP TEFC motor
Long 6in stroke allows this drill press to drill deeper than most

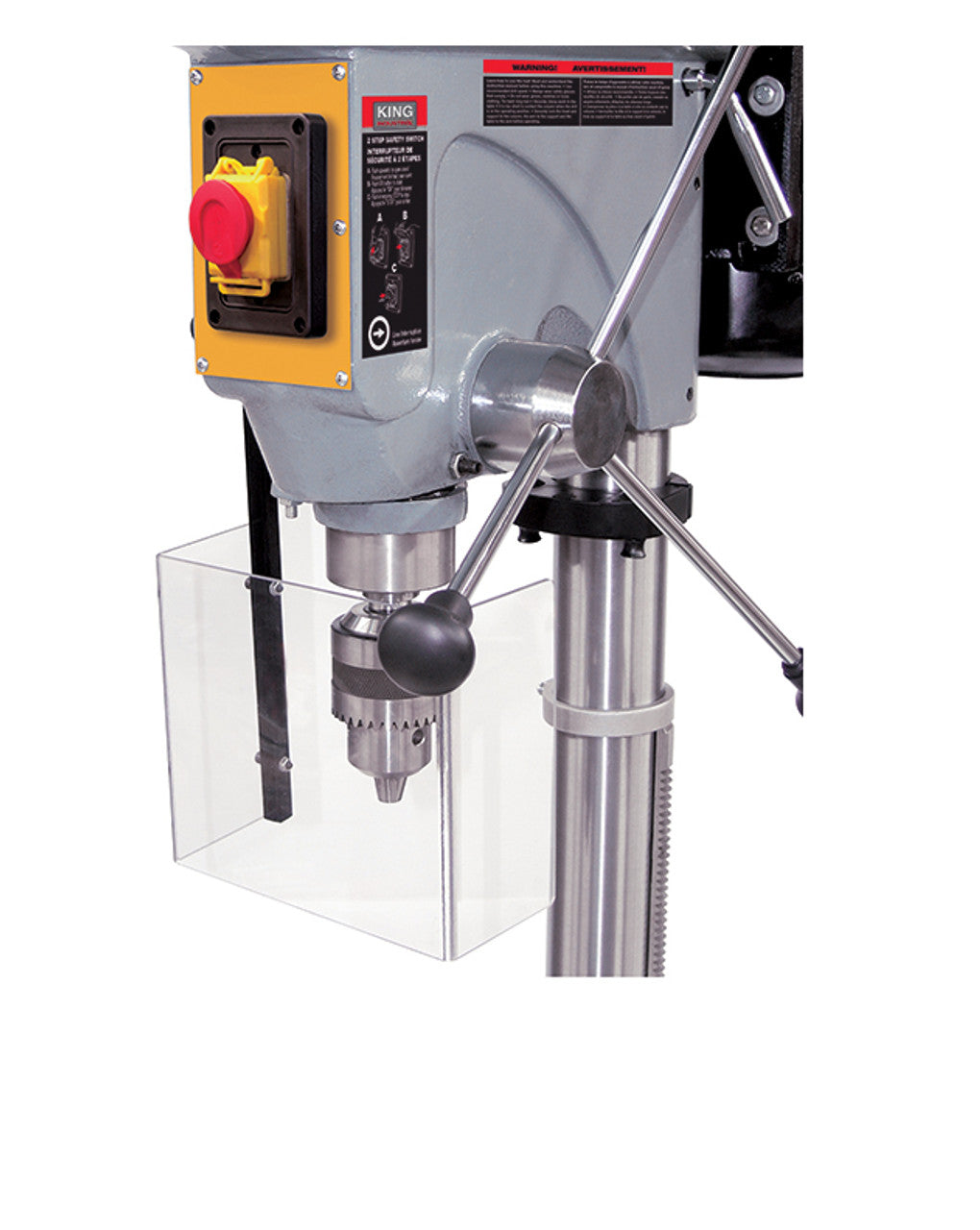

Safety guard with limit switch protection
2 step activation safety switch with line voltage interruption in case of power failure
Dual intersecting adjustable laser guides

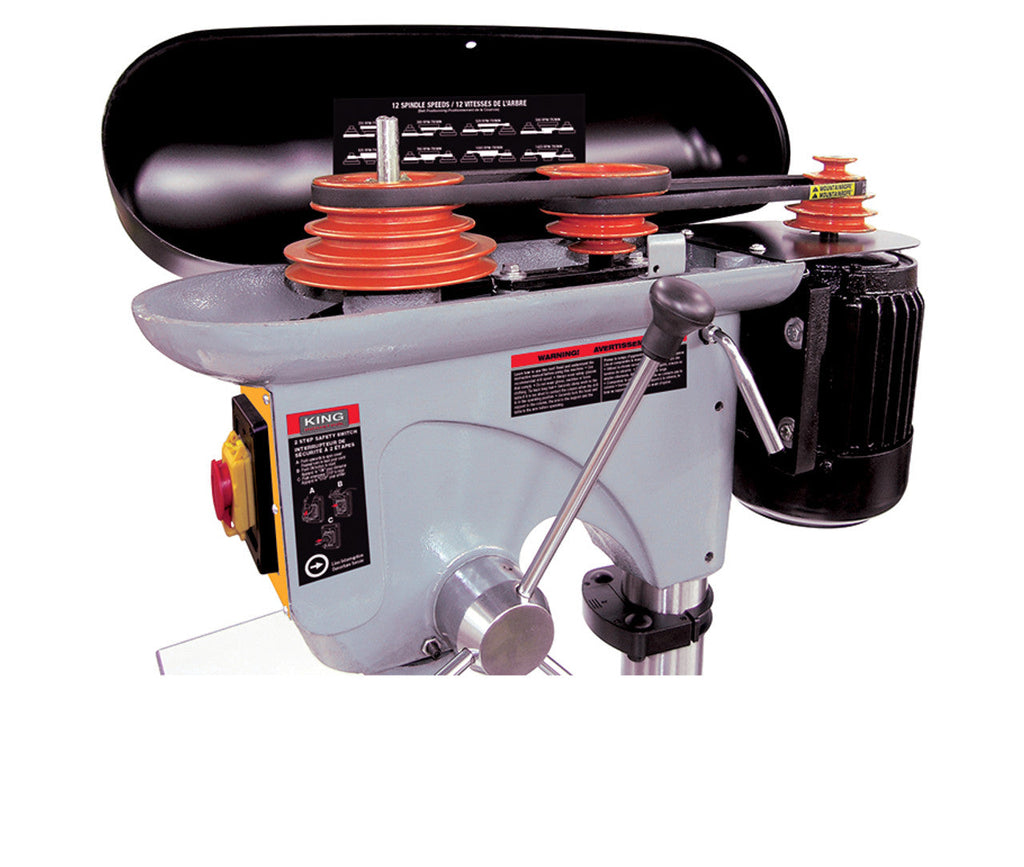

Cast-iron pulleys reduce vibration
45° tilting table for angular drilling
12 speed (255-2,750 spindle RPM)
Rack pivot collar allows the table to easily be swung out of the way without catching or twisting
Comes with 3/4in drill chuck, spring loaded chuck key, knock-out wedge and adjustment hex. keys
Specifications
Model: Kc-30hs-vs
Capacity: 5/8in
Chuck Size: 5/8in
Swing: 15in
Max. Distance Chuck To Column: 7-1/2in
Max. Distance Chuck To Table: 27-1/2in
Stroke: 6in
Table Size: 18 X 14in
Spindle Taper: JT #3
Variable Speeds: 400 - 5,000 Rpm
Table T-slots: 9/16in
Motor/voltage: 14 Amp. @ 115v, 7 Amp. @ 230v
Pre-wired: 115v
Assembled Dimensions (LxWxH)/ Weight: 18 X 28 X 71-1/2in / 310 Lbs
Packaging Dimensions (LxWxH) / Weight: 22 X 32 X 70in / 375 Lbs
