The Klein Tools ET450 Advanced Circuit Tracer Kit is a professional tracer for energized and non-energized breakers, fuses, and wires. When the Transmitter is connected to a circuit, the Receiver’s sensitivity can easily be adjusted to detect the transmitted signal on breakers, fuses, and wire through drywall, cement block, and underground. Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case with handle for convenient transportation and storage.
Features
The Advanced Circuit Tracer Kit provides reliable tracing of energized or non-energized breakers, fuses, and wires
Easily adjust receiver sensitivity level to detect the transmitted signal through drywall, cement block, and underground
Versatile applications include tracing wires, conduit or pipes, or a single wire in a bundle
Audible beep and visual indicators on receiver denotes signal strength
Receiver features a flashlight for illumination in low-light areas and NCV function to test if wires are energized

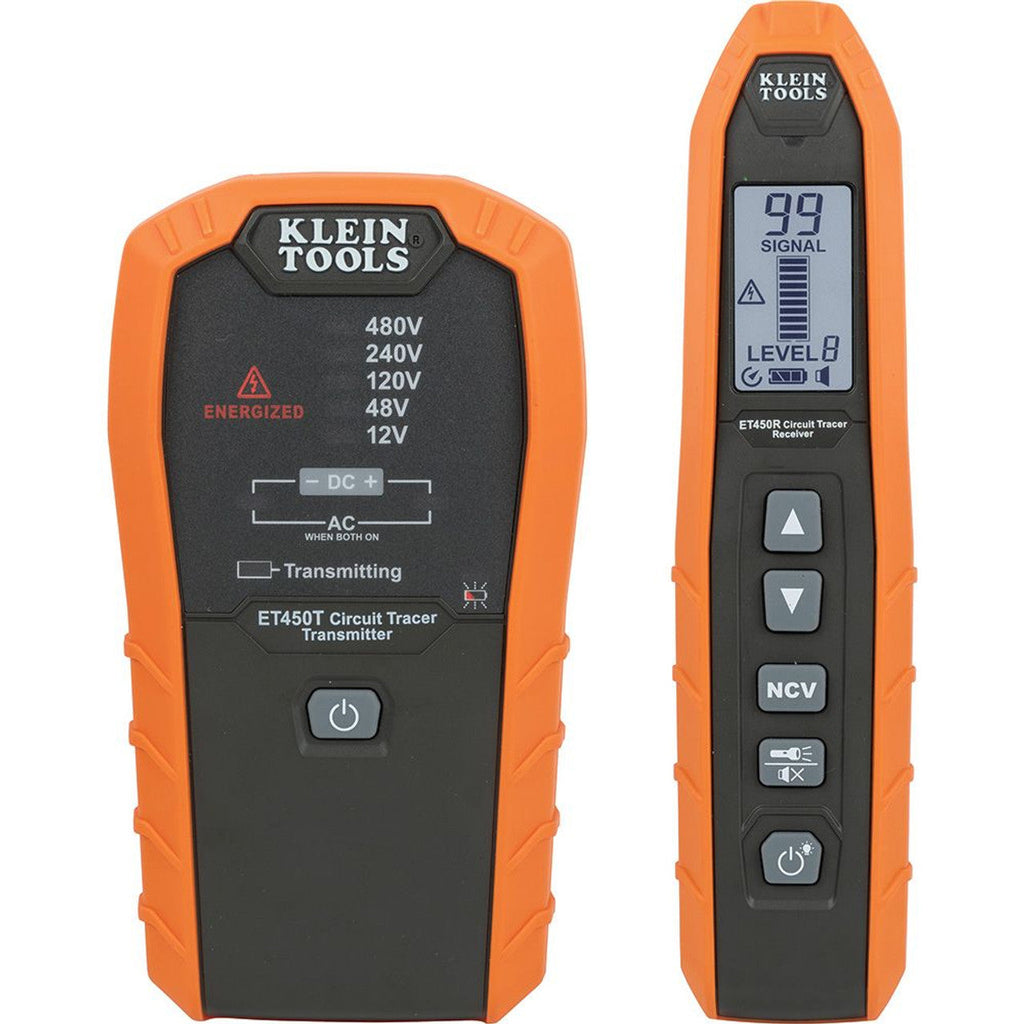

Transmitter has AC/DC external voltage indicators of 12V, 48V, 120V, 240V, and 480V

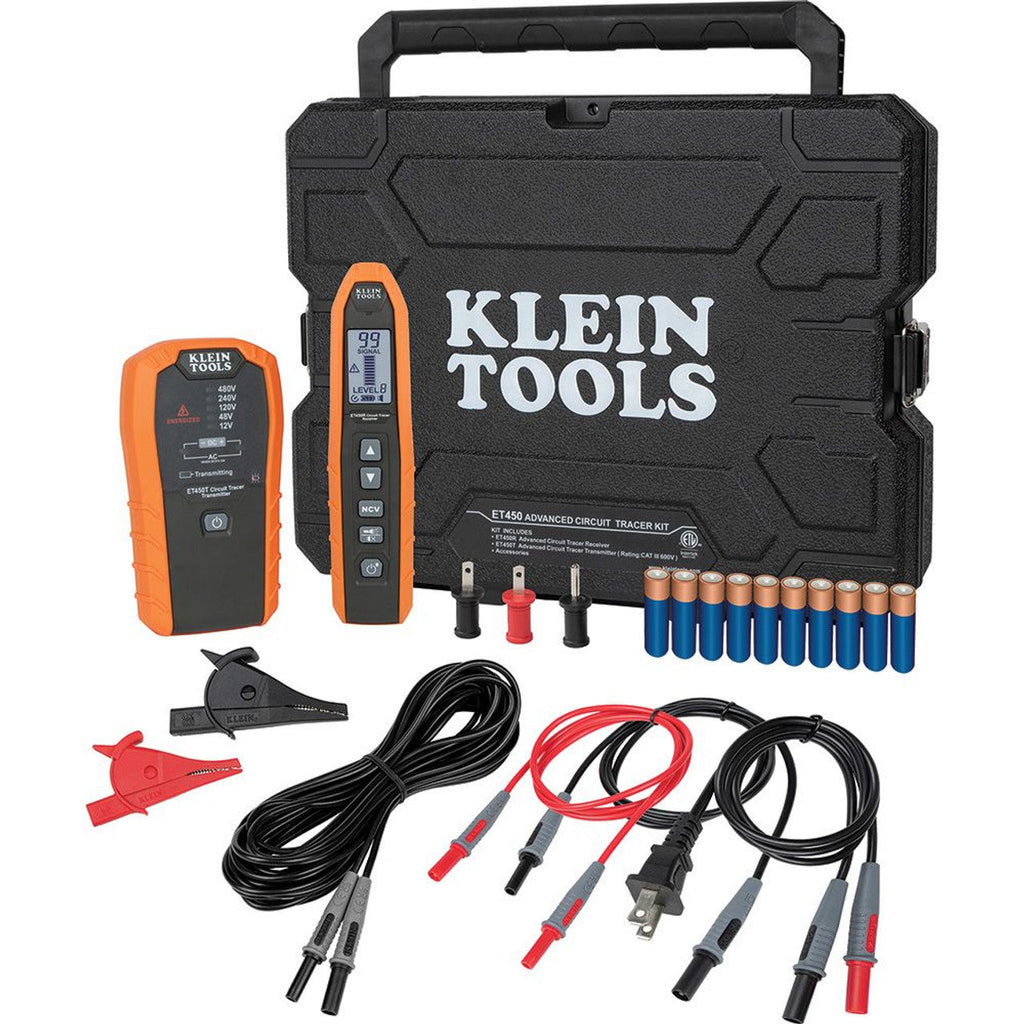

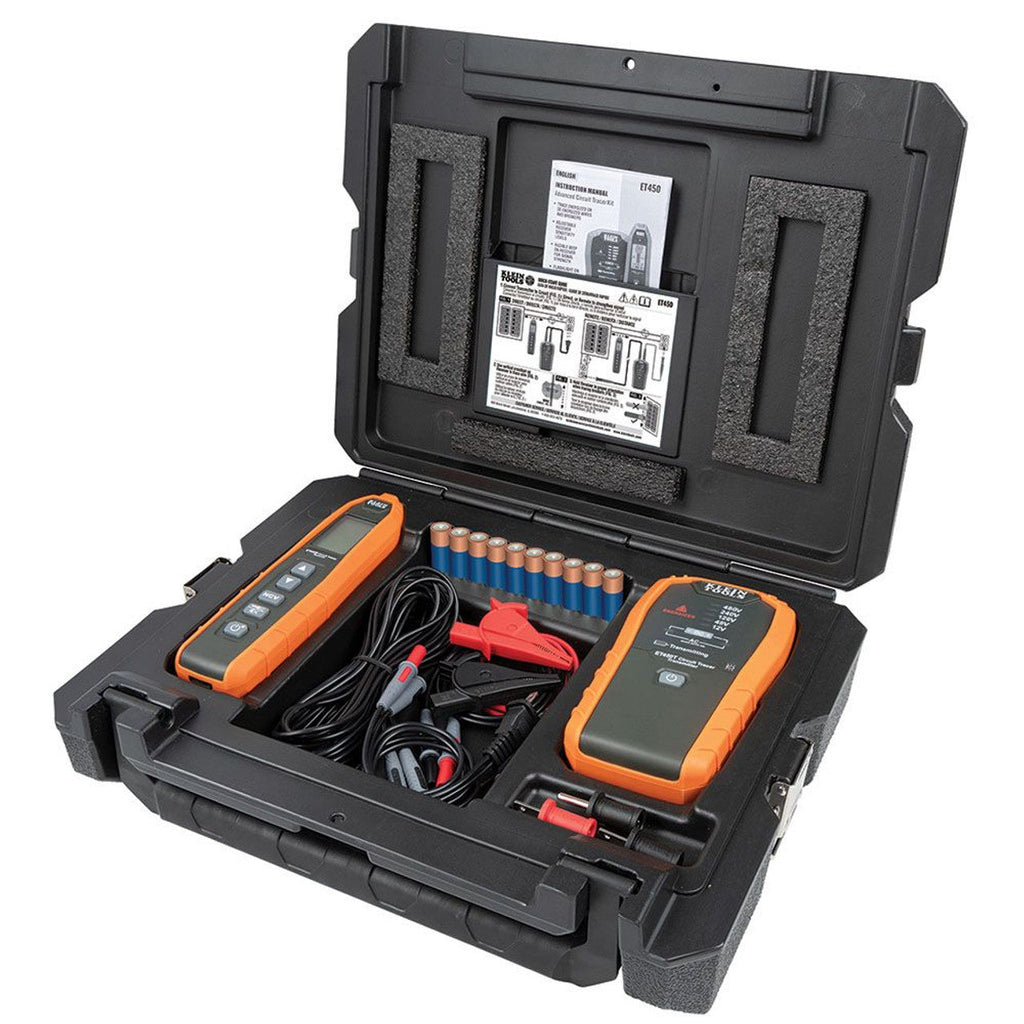

Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case
Specifications
Type: Circuit Tracer
Application: Trace Energized and Non-Energized Breakers, Fuses, and Wires
Special Features: Flashlight and NCV Function on Receiver; Accessories, and Hard Case
Material: ABS and Electronic Components
Batteries: Transmitter: 6 × 1.5V AA Alkaline; Receiver: 4 × 1.5V AA Alkaline
Battery Life: Up to 24 hr.
Drop Protection: 6' (2 m)
Display: Receiver: LCD with Backlight
Control Type: Transmitter and Receiver
Voltage: External Indicators for 12V, 48V, 120V, 240V, and 480V
Frequency: Transmitter: AC 45Hz to 65Hz; Receiver: 33kHz
Ingress Protection: IP42
Pollution Degree: 2
Tests Continuity: No
Integral Lead Storage: No
Interchangeable Leads: Yes
Lead Length: 3ft (1 m) and 20ft (6.1 m)
Standard: CAT III 600V
Case Included: Yes
Included: Transmitter, Receiver, Blade and Ground Prongs, Alligator Clips, 3ft and 20ft Lead Adapters, AC Plug Leads, Instructions, All Required Batteries, and Hard Carrying Case
Overall Length: Receiver: 7.05in (17.9 cm); Transmitter: 8.72in (22.2 cm)
Overall Height: Receiver: 1.84in (4.5 cm); Transmitter: 1.51in (3.9 cm)
Overall Width: Receiver: 3.90in (9.9 cm); Transmitter: 2.07in (5.3 cm)
Weight: Transmitter: 16.5 oz (470 g); Receiver: 11 oz (312 g)
