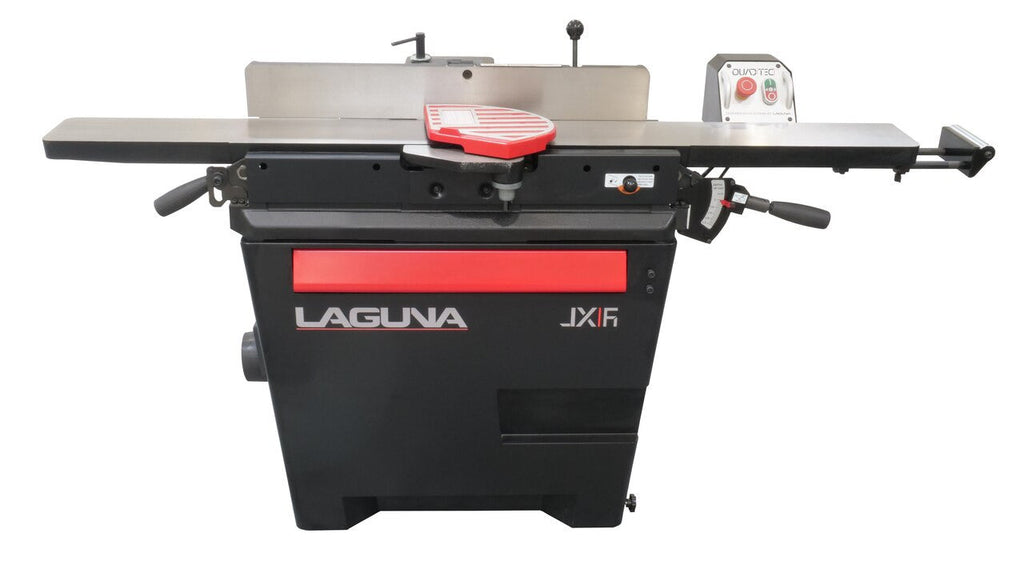

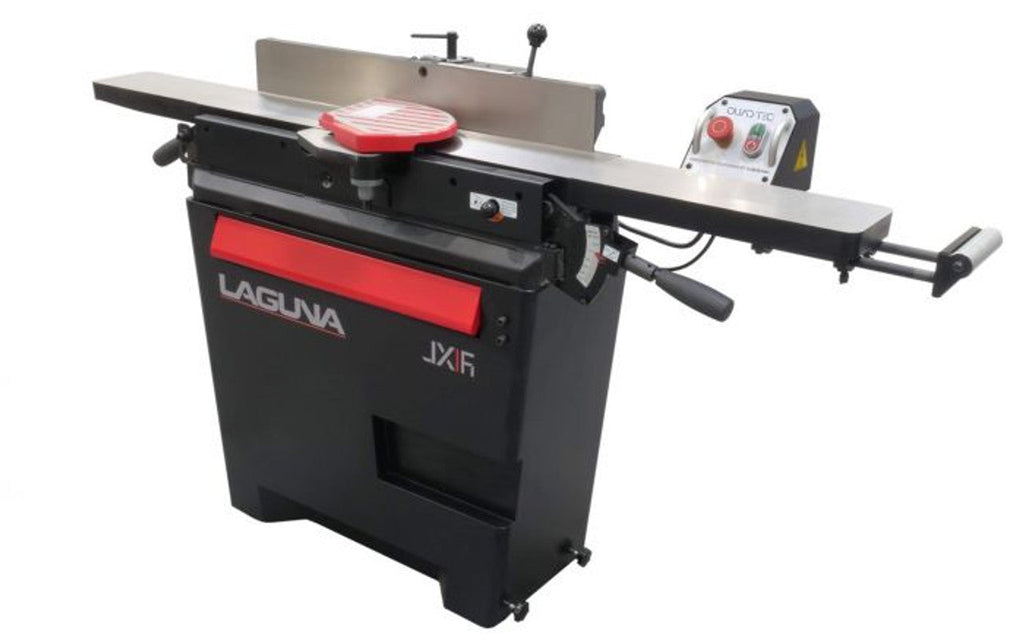

All-new for 2021, the Laguna JX|6 QuadTec ll is loaded with highly desirable features to make jointing safer and more enjoyable.
The Brand New QuadTec ll Is Designed To Offer An Amazing Finish On The Most Difficult Species Of Wood
The inserts are solid carbide (14x14x2mm) so they can be rotated 4x to extend the already longer life Compared to HSS. The inserts are mounted on a straight line requiring less machining thus saving cost. The QuadTec: I is also quieter than conventional straight knives. Each insert is indexed requiring no jig when rotating or replacing.
Features
Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
Emergency Knee-Stop – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece
New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a toe-kick to allow the user to position themselves closer to the machine tables and to move safer and easier along the length of the machine

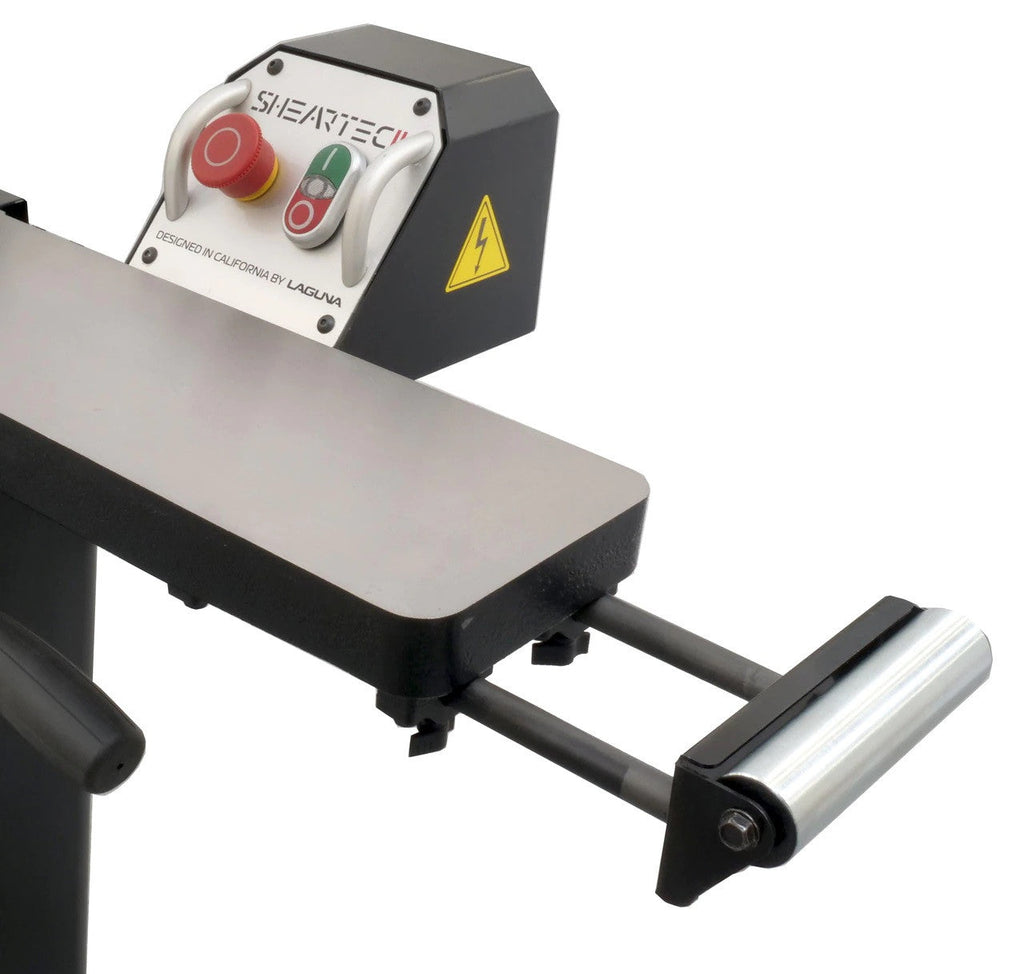

In-feed Support Roller – Infeed tables are now fitted with pull out support roller to help support longer materials
QuadTec ll Cutterhead – The all-new QuadTec ll cuttherhead comes as standard equipment on the new JX-6. The QuadTec ll produces an amazing surface finish on all woods including difficult The QuadTec ll uses 4-sided carbide insert knives that are quieter and much more durable compared to straight HSS knives. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
Built-In Wheels – No need to purchase a separate mobility kit
Cast-Iron Tables and Fence
Specifications
Motor: 110V 1.5HP 1 Phase 60hz/13 Amp
CSA: Yes
Bed Size: 60 x 6in
Infeed Table Pull-Out Extension: 8in
Rabbeting Capacity: 1/2in
Fence Size: 29 x 3-3/4in Cast Iron
Fence Tilt: ±45/90°
Max. Depth Of Cut: 1/8in
Table Height From Floor: 31in
Safety Bar Shut-Off: Yes
Bracket To Mount Light: No
110V Outlet For Light: No
Bracket To Mount Feeder: No

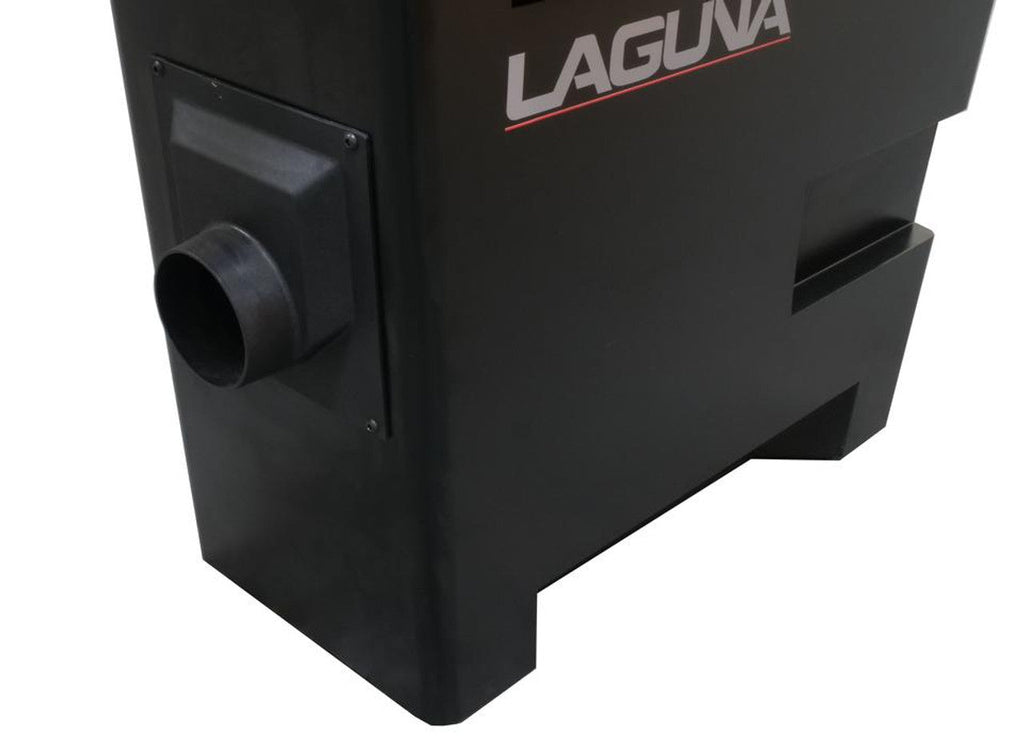

Dust Port Diameter: 4in
Plug (NEMA 5-15P): Yes
Cutterhead Insert #: 12 x 4-Sided Carbide, 4-Row
Cutterhead RPM: 5500
Cutterhead Diameter: 2-1/2in
Bed Adjustment: Parallelogram
Dimensions Set Up (Approx.): 63 x 22in
Dimensions Shipping: 65 x 22 x 13in + 31 x 16 x 27in
Net/Ship Weight: 161/174 Lbs + 88/94 Lbs (2 Boxes)
