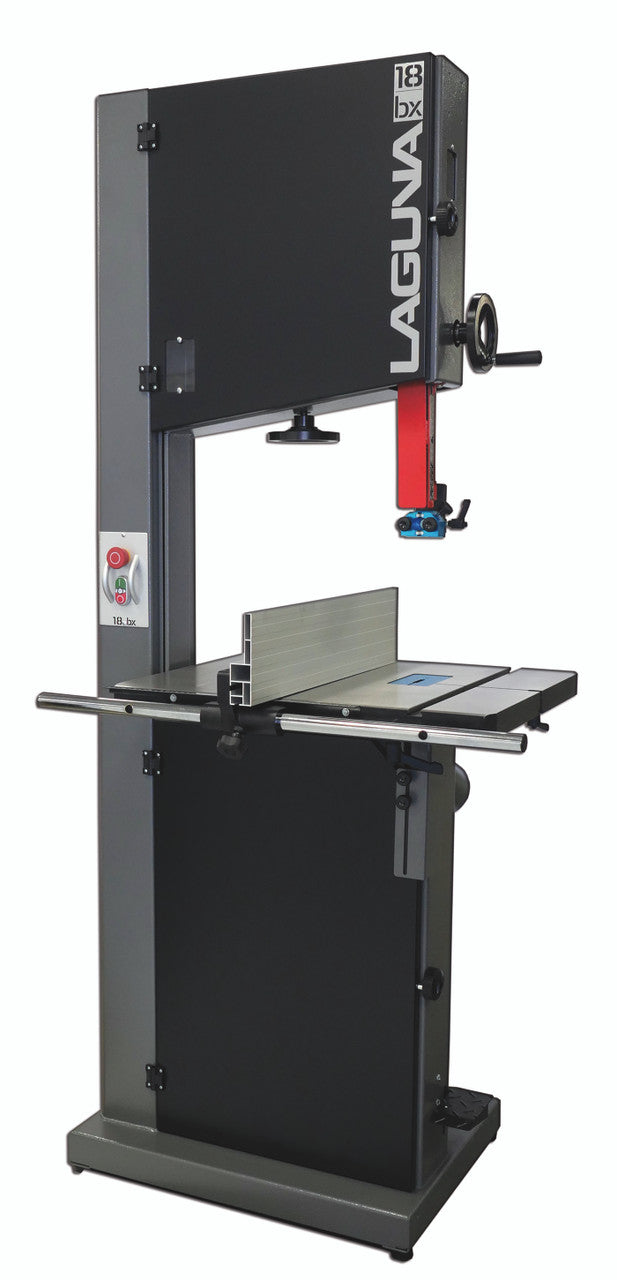

The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models. The 18|bx is built around a 3HP, 220V motor and 145in (368 cm) blade for consistent results, cut-after-cut, regardless of material.
Specifications
Motor: 3HP, 220V, 1 Ph. 12 Amp.
Recommended Breaker: 20 Amp.

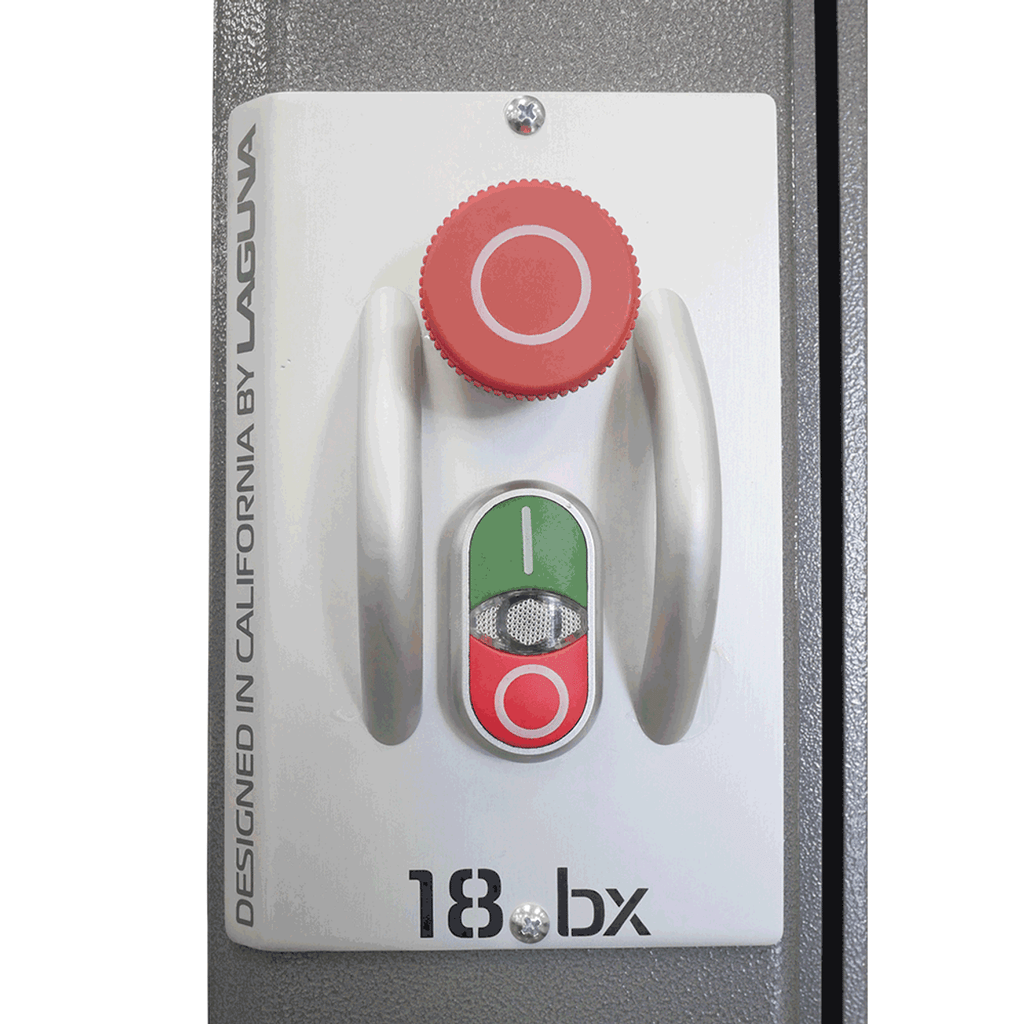

Magnetic Starter: Yes
Min-Max Blade Width: 1/8in-1-1/4in
Resaw Capacity: 16in
Throat: 18in
Blade Length: 145in
Disc-Brake with Micro Switch: Yes
220V Outlet on Back for Light: Yes
Window for Tension: Yes
Window for Tracking: Yes
Magnetic Blade Tension Guide: Yes
Worm Gear and Pinion Upper Guide: Yes
10 Point Laguna Ceramic Guides: Yes
Flat Poly-Groove Drive Belt: Yes
Premium Anodized Insert with Micro Adjustment: Yes

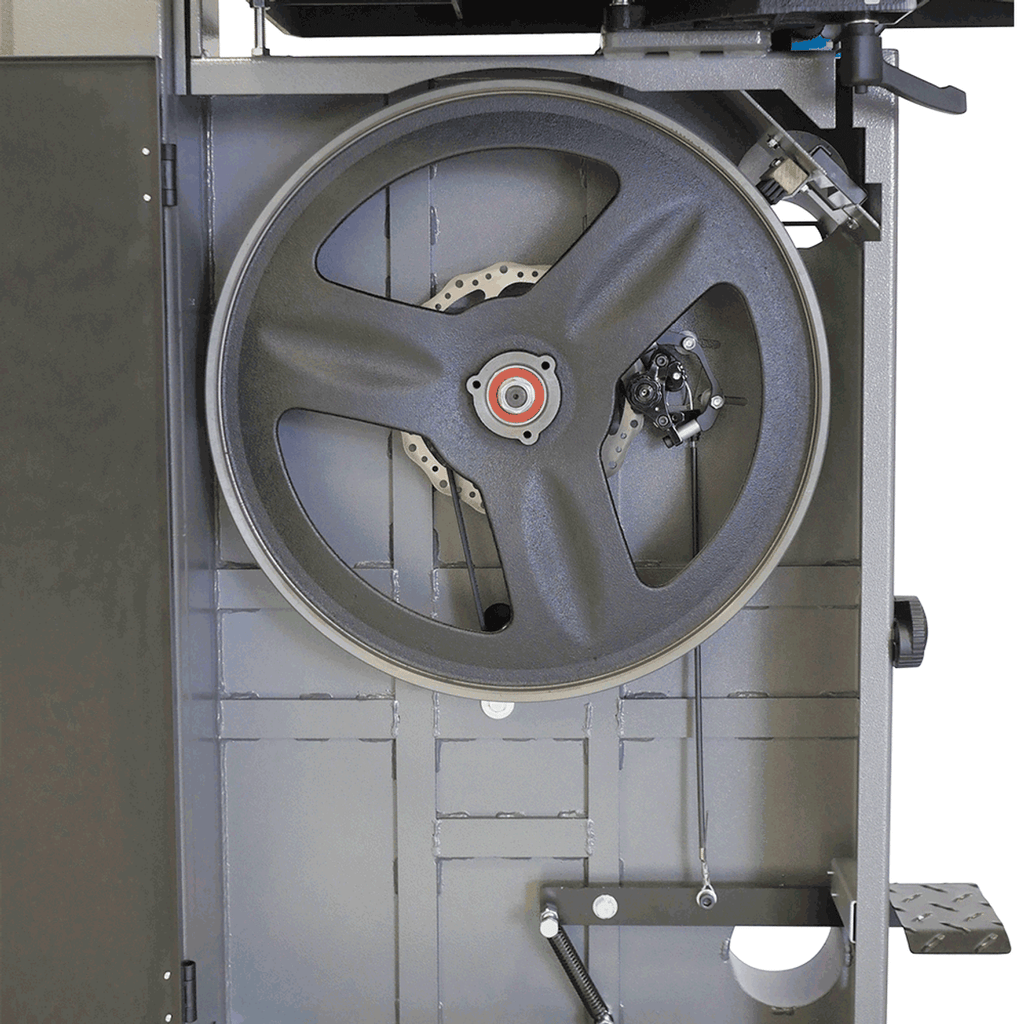

Dynamically Balanced Cast Iron Wheels: Yes
Urethane Single Piece Snap-on Tire: Yes
Cast Table Size: 20 x 26in

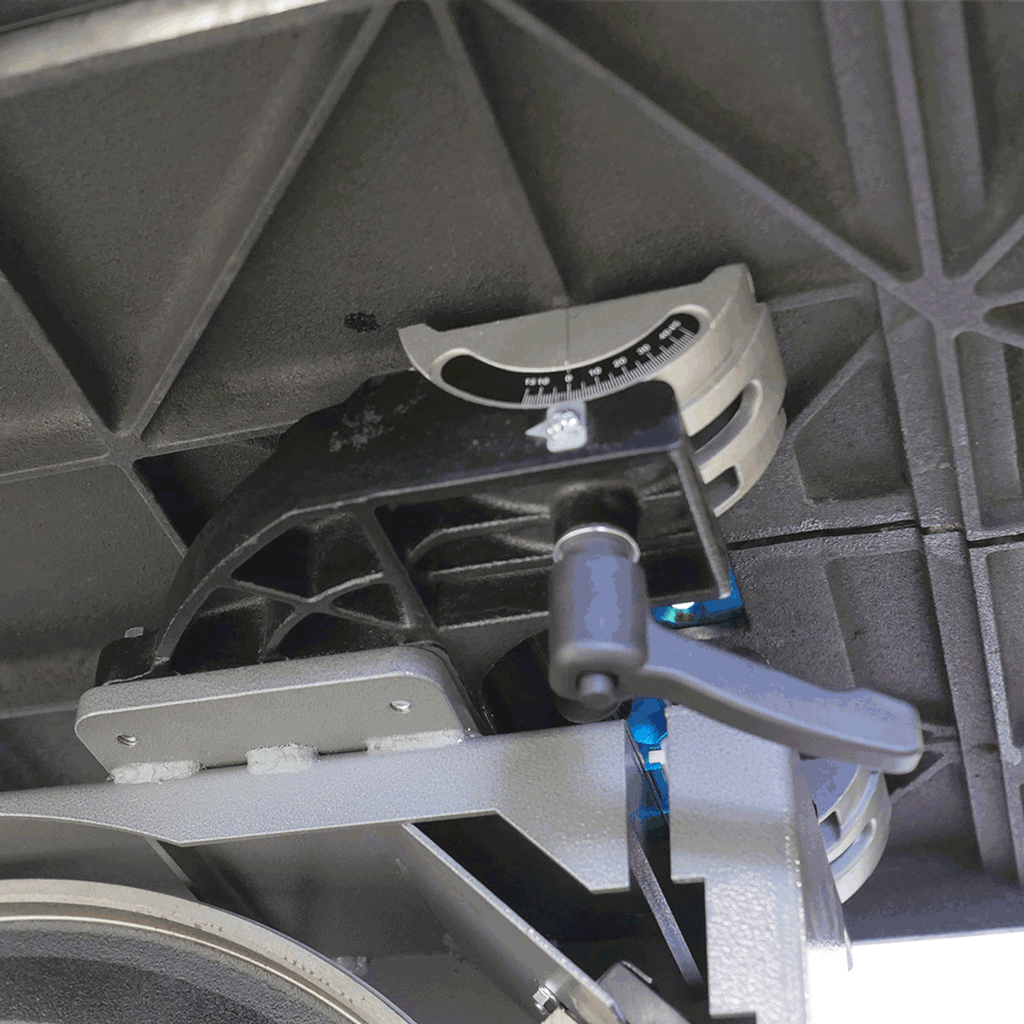

Table Tilt: -6°, +45°
Quick-Release Tension: Yes
Hi/Low Anodized Aluminum Fence: 22-1/2 x 5-3/4 x 1/2in
Table Height: 38in
Dust Ports: 2 x 4in
Overall Height: 77-3/4in
Dimensions, Base: 27 x 20in
Dimensions Overall: 36 x 30in
Dimensions Box: 82 x 34 x 24in
Weight (Net/Ship): 410/460 Lbs.
