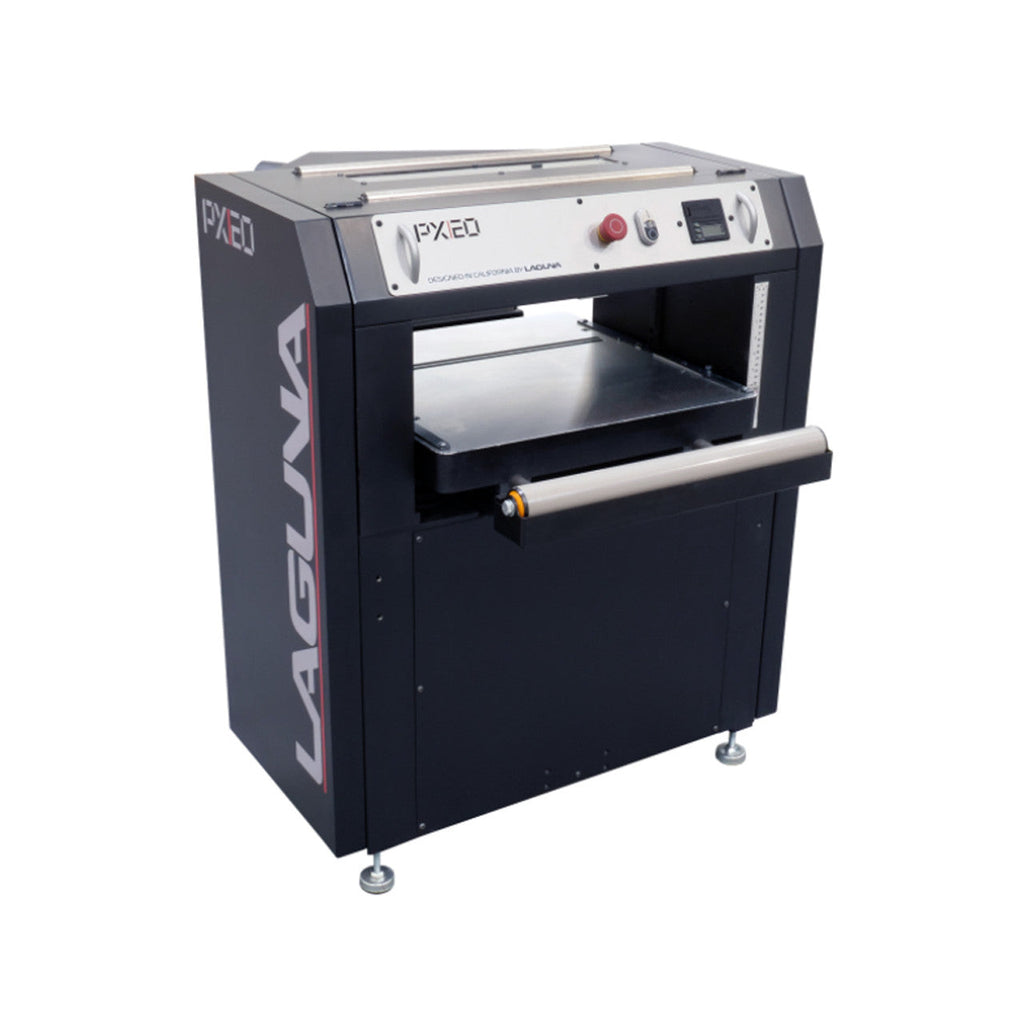

The all-new PX|20 planer signals an innovative new design for Laguna planers. The Laguna PX|20 is loaded with new ergonomic features to make woodworking safer and more enjoyable.
The ShearTec ll features 4-sided solid carbide inserts with a T-shoulder rather than a cone-shaped design, which helps prevent cracking of the inserts.
The ShearTec ll cuttherhead comes as standard equipment on PX|20 ShearTec ll Jointer. The ShearTec ll is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec ll knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec ll cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without need for a knife setting jig.
Features

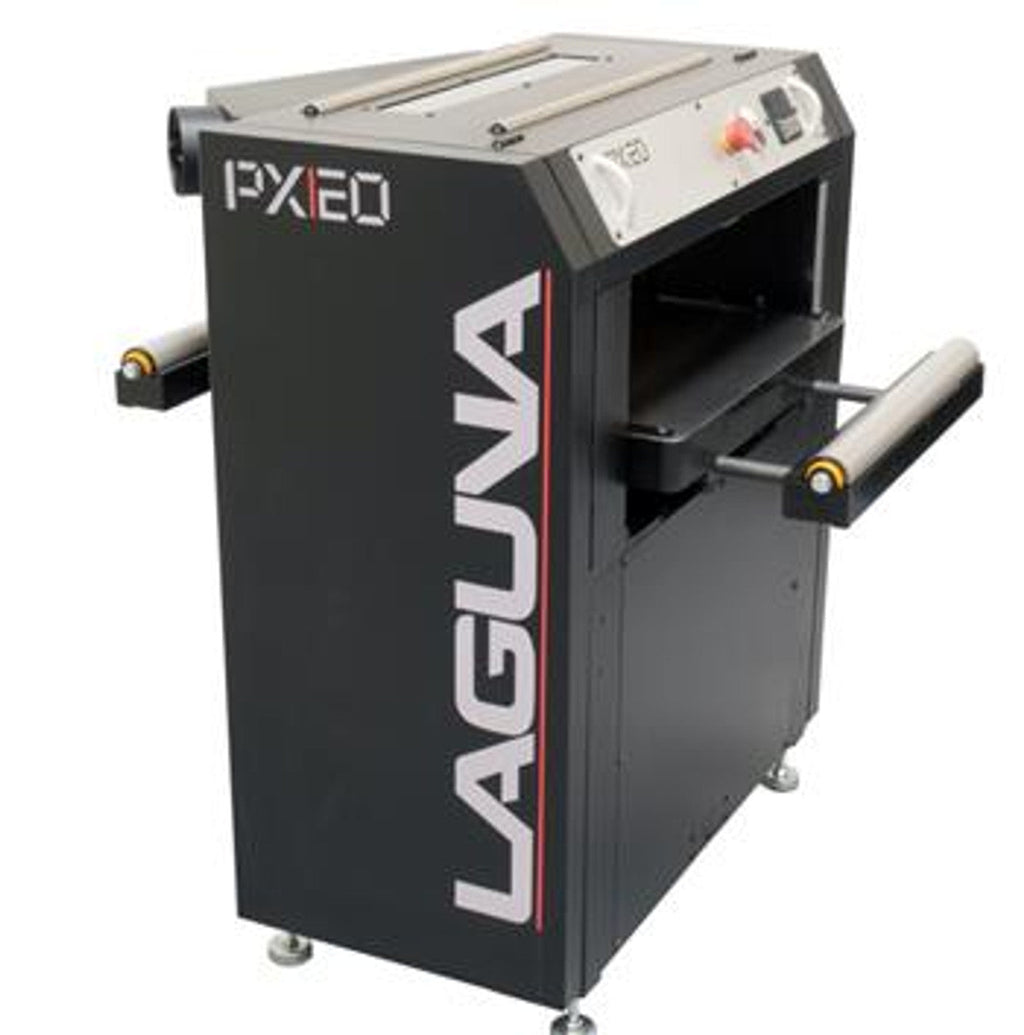

Infeed and Outfeed Rollers – The PX|20 features infeed and outfeed rollers to assist with material loading and feeding while keeping a compact footprint
Digital Readout – The DRO has been moved to the control panel to provide better ergonomics and make precision settings easier
Ergonomic Control Panel – Machine controls have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better Combined with the new cabinet, the PX|20 sports a sleek, modern design

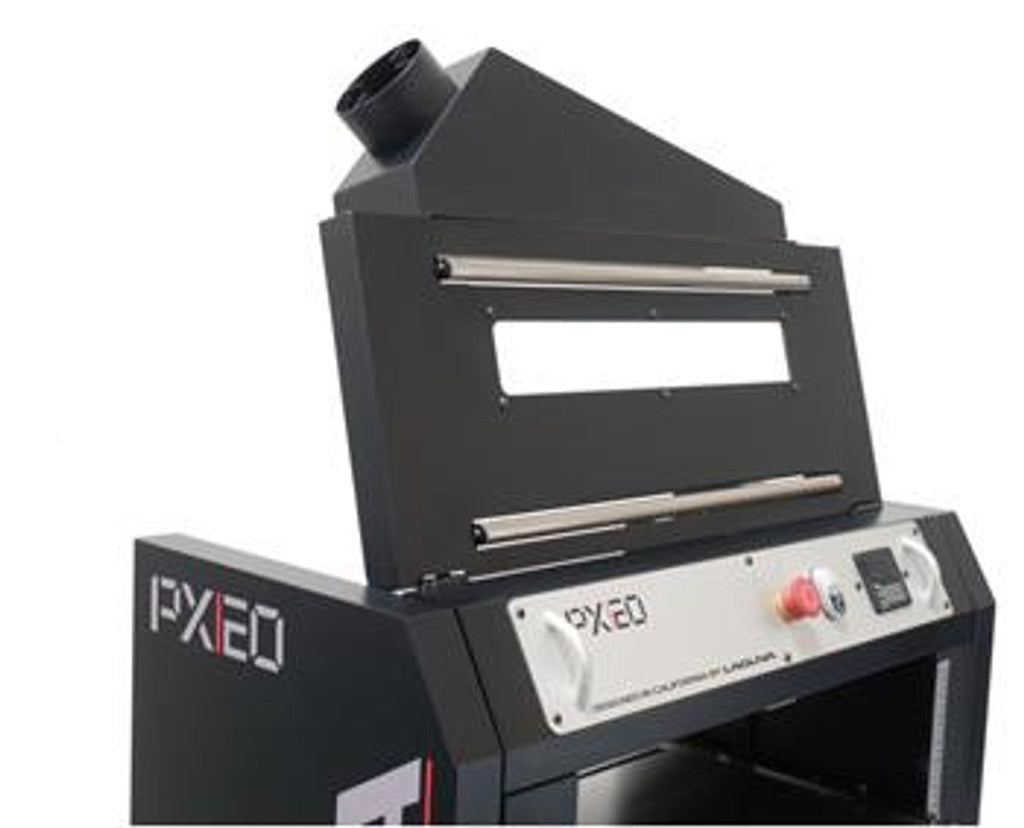

Improved Dust Collection – The 4in diameter dust chute offers the option to point to right or left to optimize dust collection system layout
4-Post Bed Support – Provides precise and consistent performance with every cut
ShearTec II Cutterhead – The ShearTec II cuttherhead comes as standard equipment on PX|20 Planer
Serrated Infeed Roller – The serrated infeed roller and pressure bar are mounted close to the cutterhead to virtually eliminate snipe
Specifications
Motor: 220v 5HP 1 Phase 60hz/23 Amp.
CSA: Yes
Bed Size: 20 x 21-1/2in
Pull-Out Extension: 4in
Max. Depth Of Cut: 1/4in
Max. Stock Thickness: 8in
Min. Stock Thickness: 1/4in
Min. Stock Length: 8in
Max. Stock Width: 20in
Feed Speed: 16 and 28 FPM
Dust Port Diameter: 4in Left and Right
Cutterhead RPM: 5000
Cutterhead Diameter: 3in
Cutterhead Insert #: 138 x 4-Sided Carbide, 6 Row
Plug (NEMA 5-15P): No
Thickness Readout: Wixey DRO
Noise (1m away): 83dB
Dimensions Set Up Approx. 36 x 36in
Dimensions Shipping: 42 x 30 x 46in
Net/Ship Weight: 535/638 Lbs.
