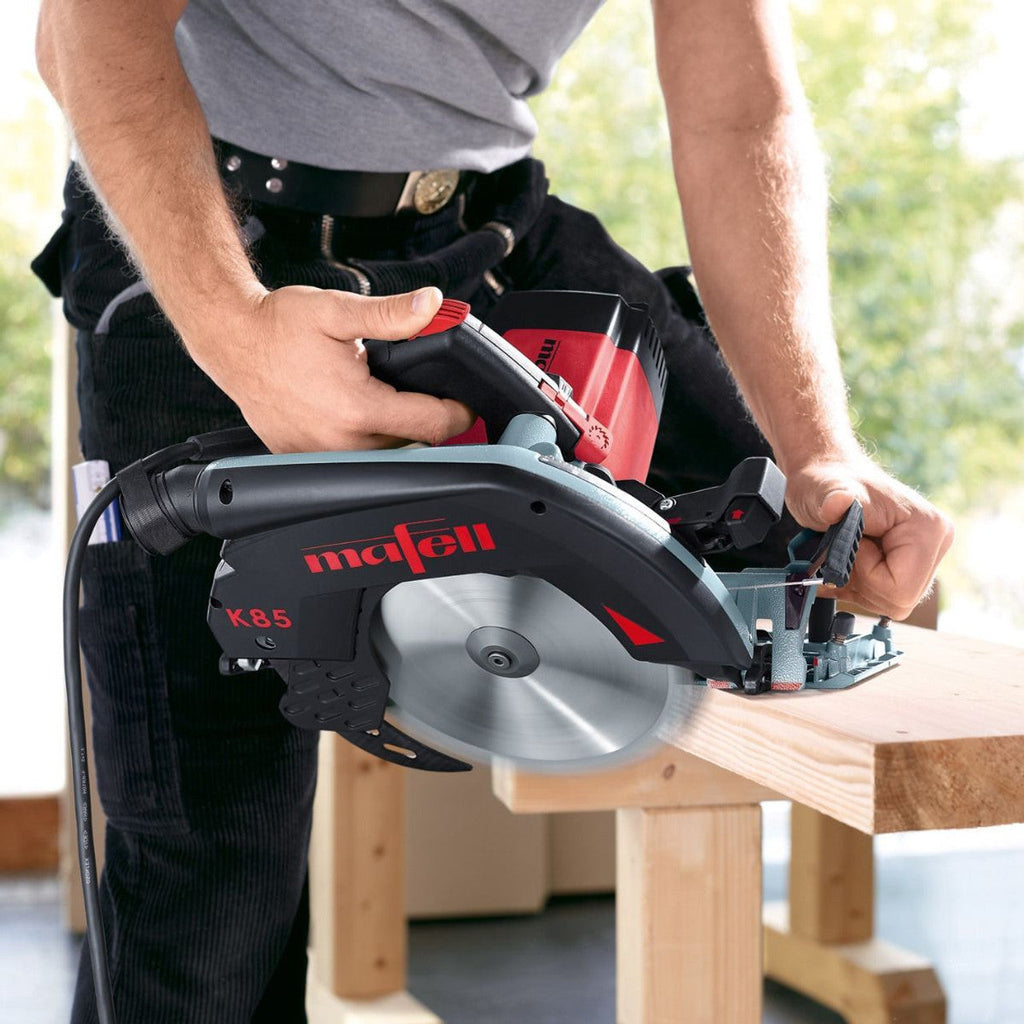

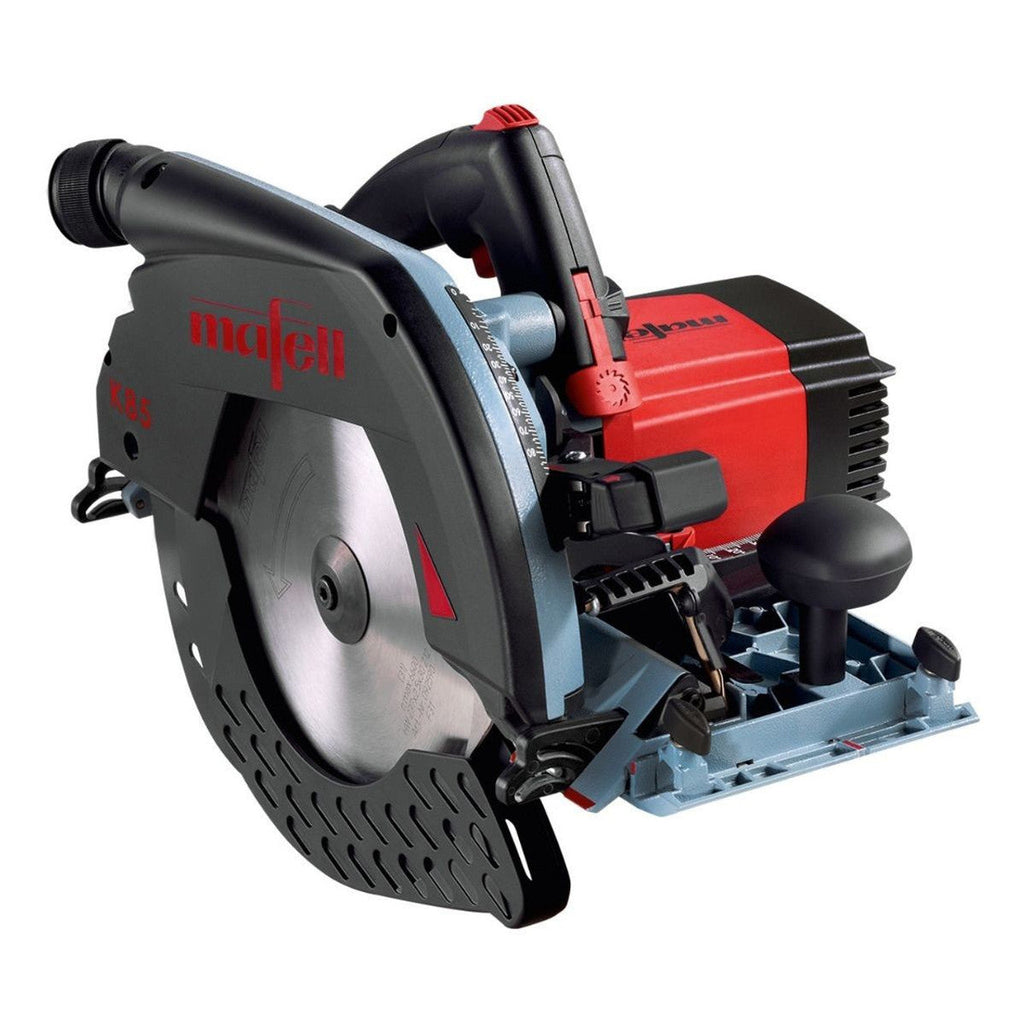

The K85Ec is packed with features that make this lightweight saw safe and ease-to-use in so many applications. Its unique FLIPPKEIL plunge cut system sets this Mafell saw apart from others in its size range, with a riving knife which disappears into the protective cover during plunges. Cutting depth and angle can be set exactly with the precise scales, and the dual rail fence allows accurate reference cuts and ripping. The CUprex motor enables variable cutting speeds according to the nature of the material and application.
Like all Mafell portable circular saws, the K85Ec also fits onto the Mafell Guide Rail System. It cuts to 60° angles and then returns to the 90° position without fine-tuning or re-squaring. Mafell saws are lightweight due to their sturdy magnesium bases, and combine a superior blade guard and dust removal system.
Features
Cuts up to 3-7/16in deep
Powerful 17 amp motor
Tilts up to 60°

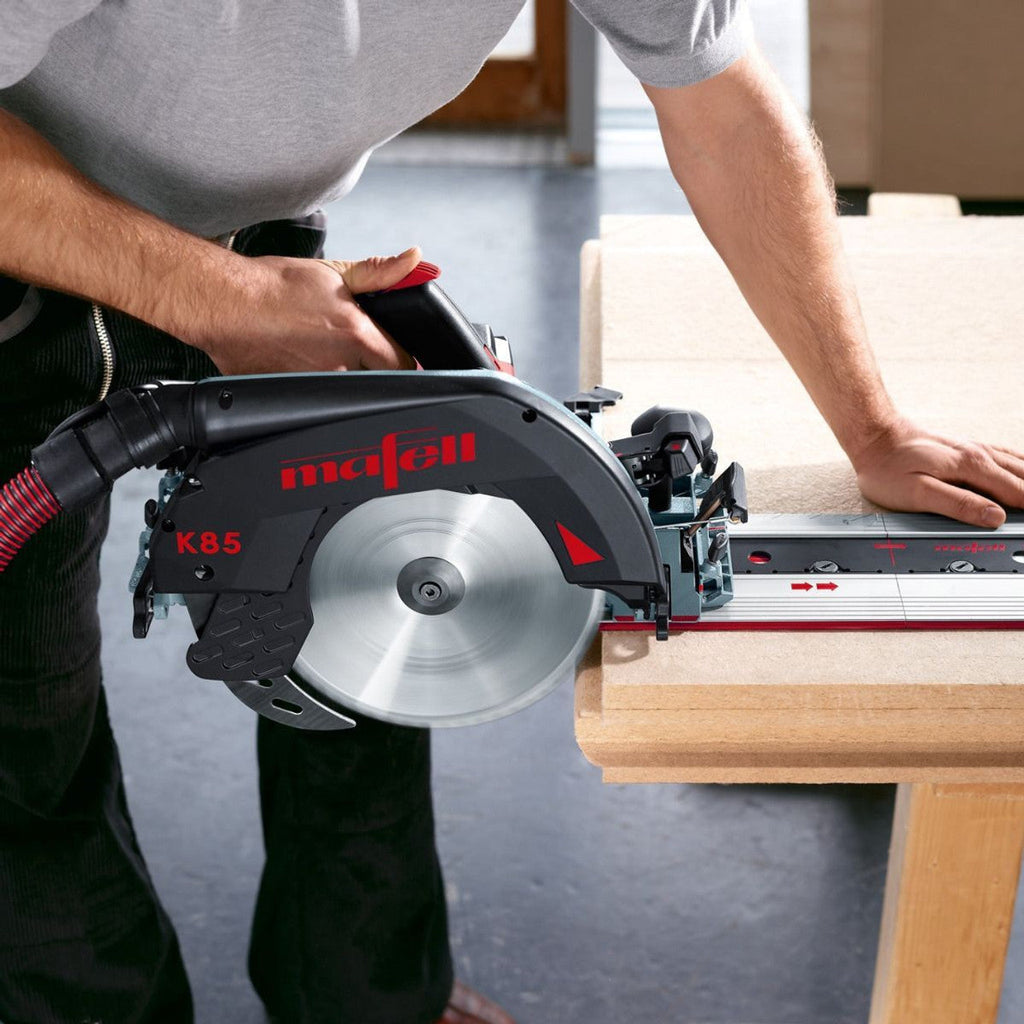

Compatible with Mafell Guide Rail System

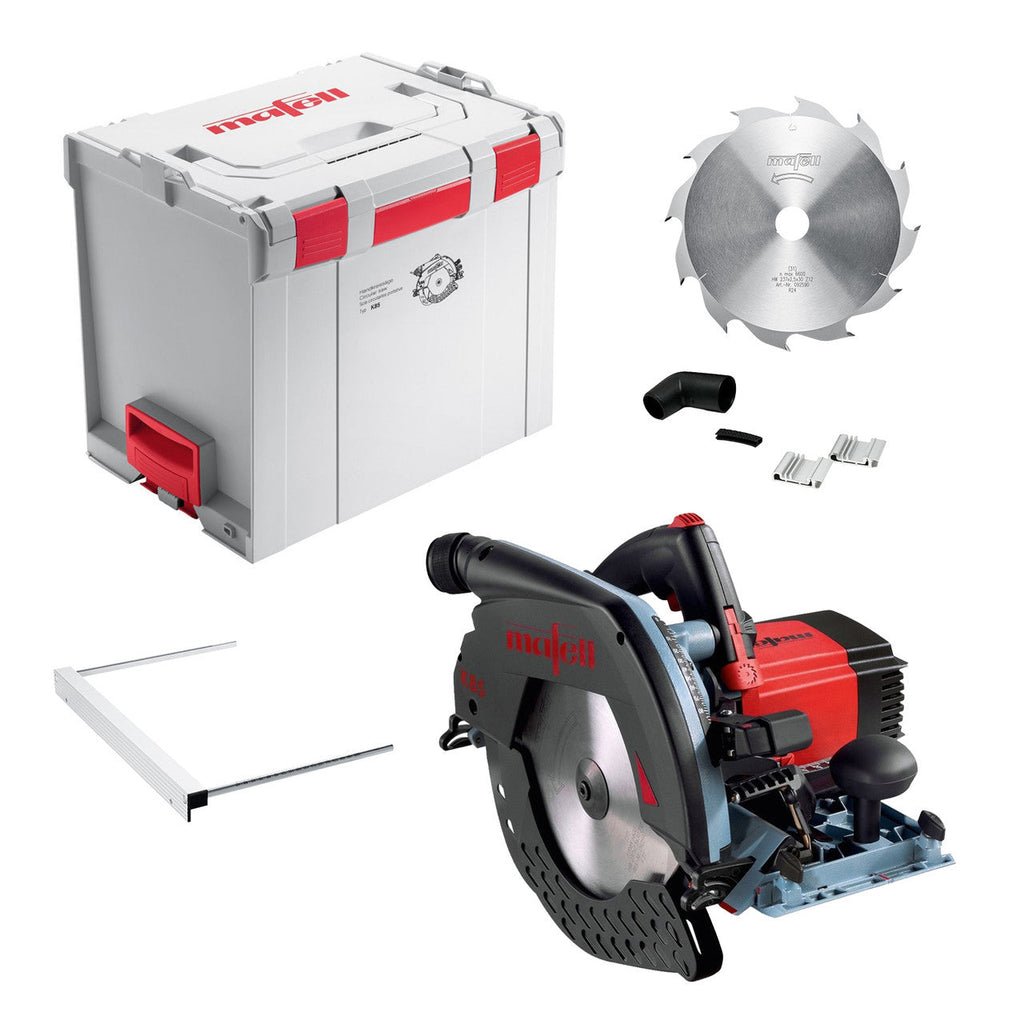

Includes
TCT saw blade 237 x 1,8/2,5 x 30 mm (9 5/16 in.), AT, 12 teeth 092590
Allen key 5 mm 093034
Mains cable 4 m (13.1 ft)

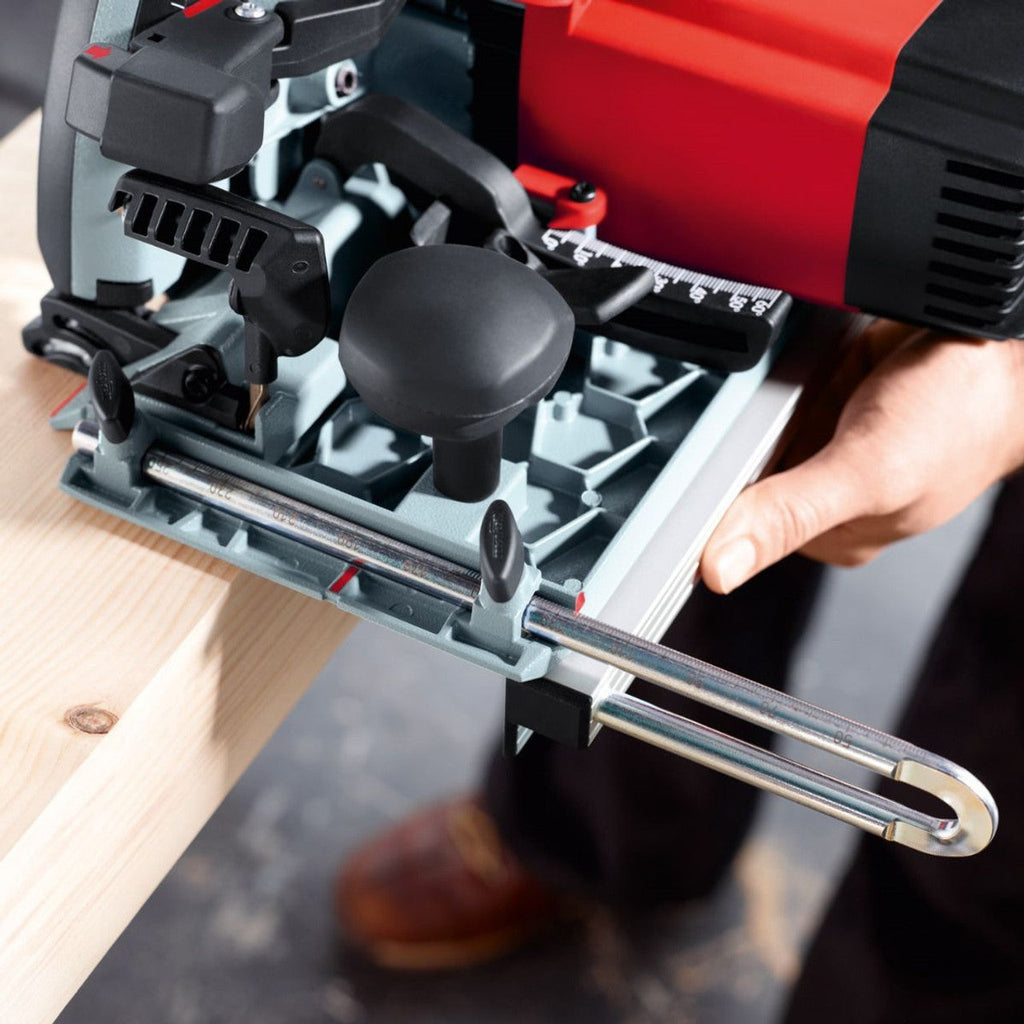

Parallel guide fence 205323
Hose connector 205290
L-MAX Systainer
Specifications
Cutting depth at 0° off track: 0 to 3-7/16in
Cutting depth at 45° off track: 0 to 2-3/8in
Cutting depth at 60° off track: 0 to 1-3/4in
Cutting depth at 0° on track: 0 to 3-3/16in
Tilt range: 0 to 60°
Saw blade diameter: 9-5/16in
Nominal speed - no load: 2,250 to 4,400 rpm
Motor: 120 V / 60 Hz
Current: 17 A
Weight: 16 lbs.
