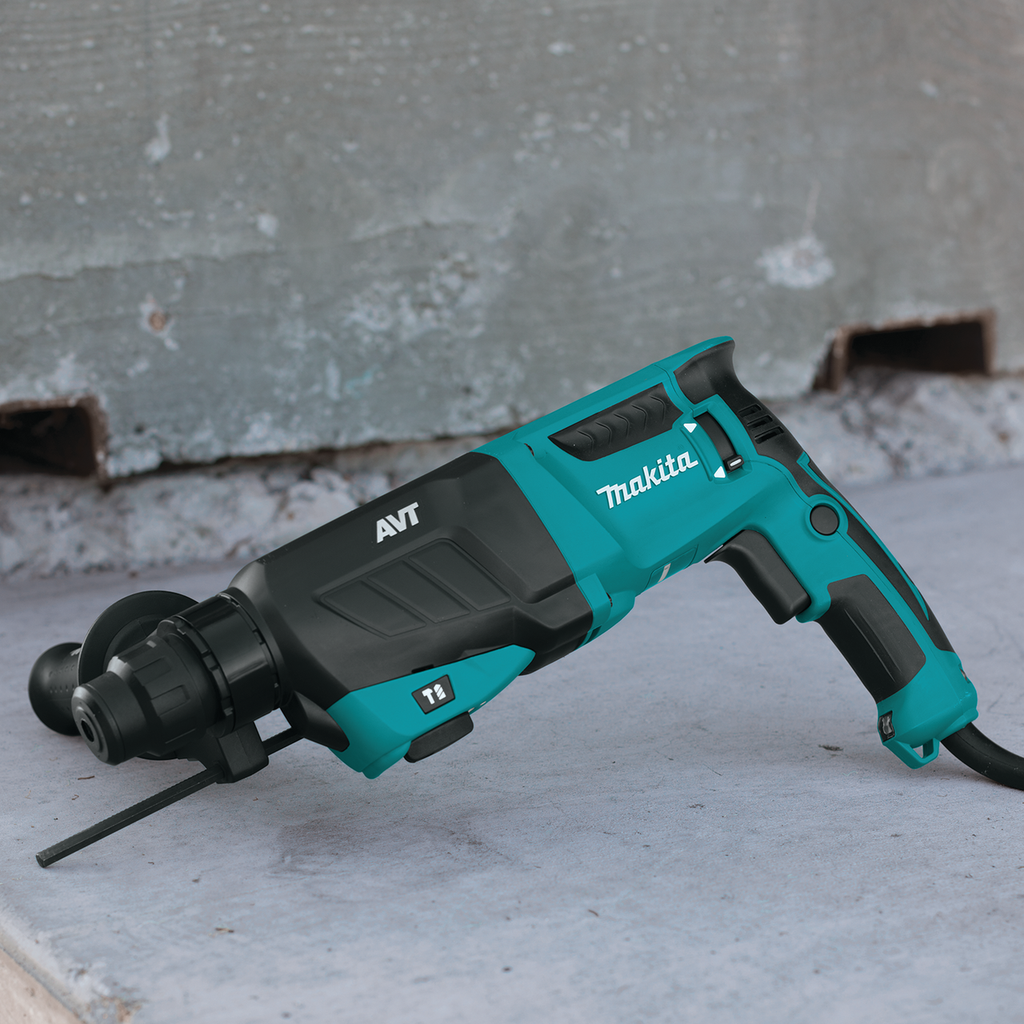

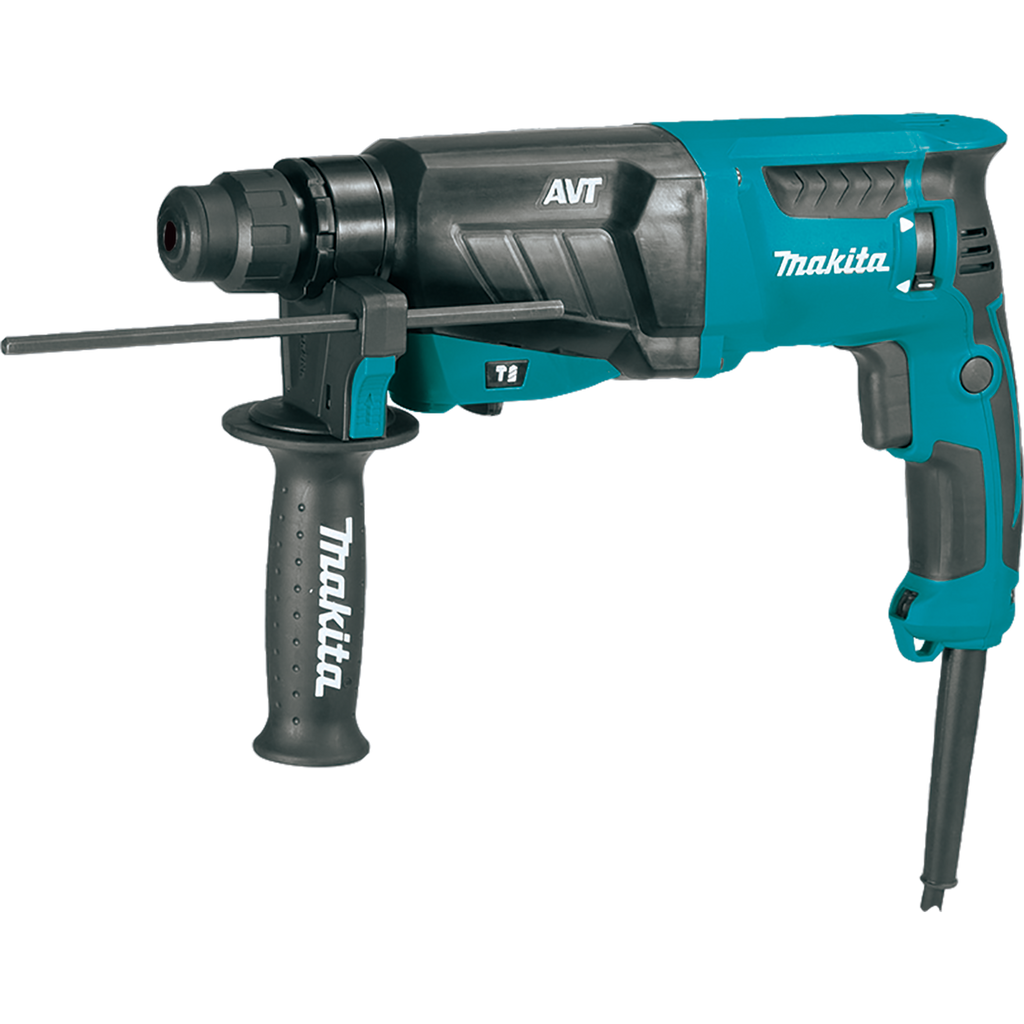

The Makita 1in AVT Rotary Hammer (model HR2611F, with Pistol-Grip) is engineered with Anti-Vibration Technology (AVT), an internal counterbalance system for significantly less vibration. The HR2611F combines performance and power with less vibration in a compact size, and is ideal for a range of applications including overhead drilling.
The HR2611F has a 7 AMP motor that delivers 2.9 Joules (2.1 ft. lbs.) of impact energy to handle the most demanding applications. The 3-mode operation offers “rotation only”, “hammering with rotation” or “chipping only” for multiple applications. Modes can be easily changed with a recessed hammer-function selector, which is located below the gear housing for improved durability. The LED light at the base of the tool’s pistol grip illuminates the work surface in low-light conditions.

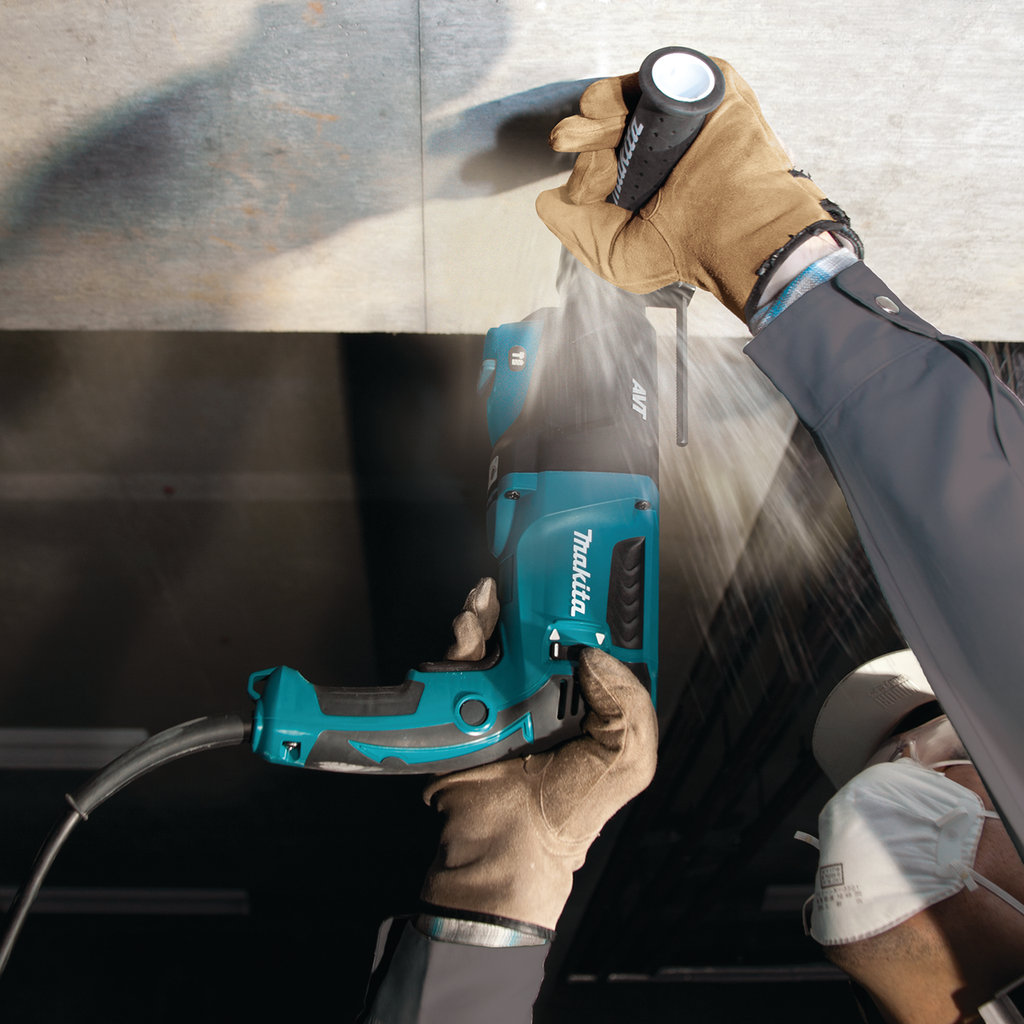

The HR2611F is engineered for a range of applications including overhead drilling into concrete, wood and metal, removing tile, and more. It is ideal for a range of trades including masons, plumbers, electricians, sprinkler installers, city maintenance crews, and general contractors seeking a best-in-class 1in rotary hammer.
Features
Powerful 7 AMP motor delivers 2.1 ft. lbs. of impact energy to handle the most demanding applications
Anti-Vibration Technology (AVT) is an internal counterbalance system that greatly reduces vibration by moving a counterweight in the opposite direction of drive piston
Integrated damper spring at the base of the impact bolt is engineered to absorb impact vibrations from the drill bit
Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
L.E.D. light illuminates drilling surface for more productivity in low light applications
Recessed hammer function selector located below gear housing for improved durability
Variable speed trigger enables user to match the speed to the application for greater versatility
3-mode operation for various applications with "Rotation Only", "Hammering with Rotation" or "Chipping Only" functions
40 bit angle settings allow the bit to be set at different positions for operating convenience
Ergonomic "Pistol-grip" handle with rubberized soft grip for increased comfort
"No hammering when idling" function helps increase tool life
Designed to reduce dust exposure in drilling applications with dust extraction accessory (part no.195173-3)
Includes
(1) Side Handle (451749-9)
(1) Depth Gauge (331886-4)

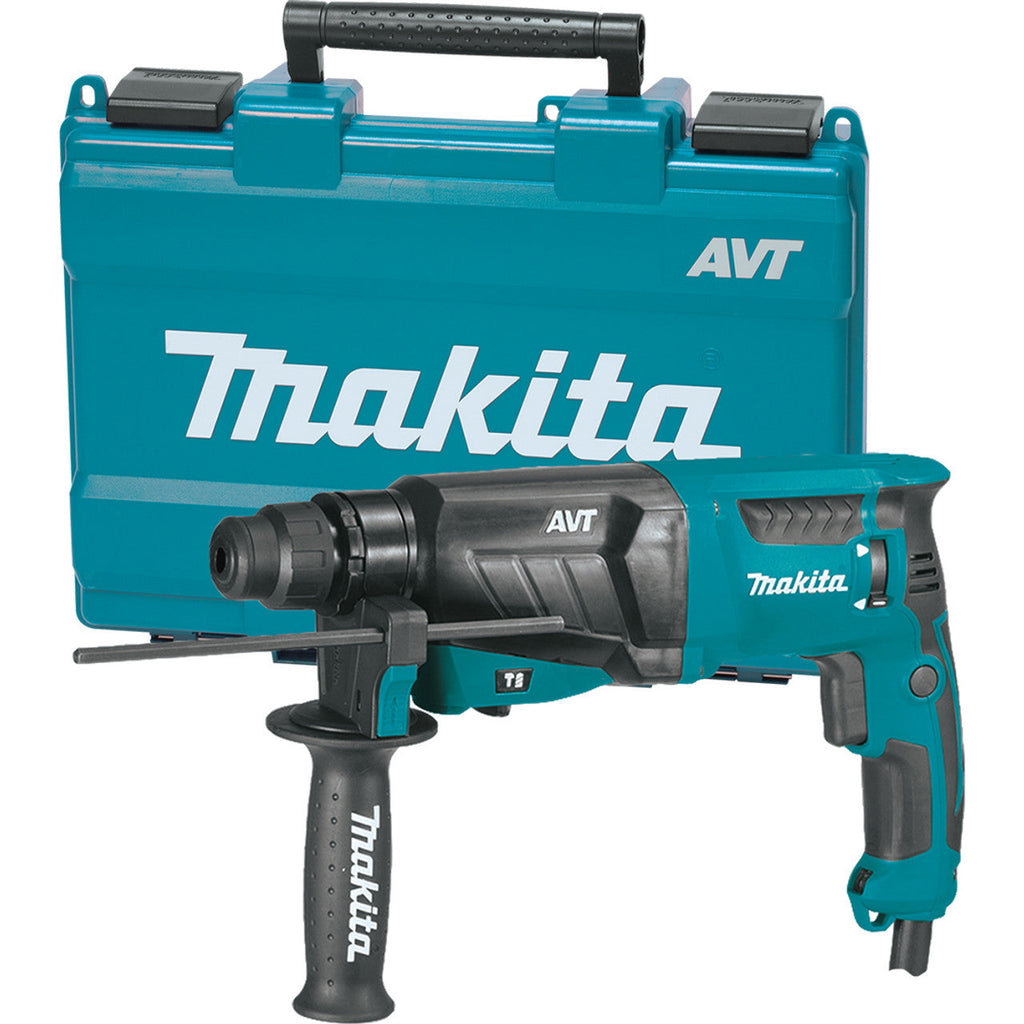

(1) Tool Case (824695-3)
Specifications
AMPS :7
Max. Capacity (concrete drilling) :1in
Max. Capacity (concrete drilling w/ core bit) :2-11/16in
Impact Energy (Joules) :2.9 J
Impact Energy (ft. lbs.) :2.1
Vibration (m/s²) :11.5
Blows Per Minute (variable speed) :0 - 4,600 BPM
No Load Speed (variable speed) :0 - 1,200 RPM
Overall Length :15-1/8in
Cord Length (ft) :13.1ft
Net Weight :6.6 lbs.
Bit Type :Accepts SDS-PLUS
Sound Rating (decibels) :90 dB(A)
Optimum Range (concrete drilling) :3/16 - 1/2in
Shipping Weight :13.2 lbs
