Features
Oil lubricated for cooler operation and reduced noise
High output cast iron pump delivers maximum performance and operational life

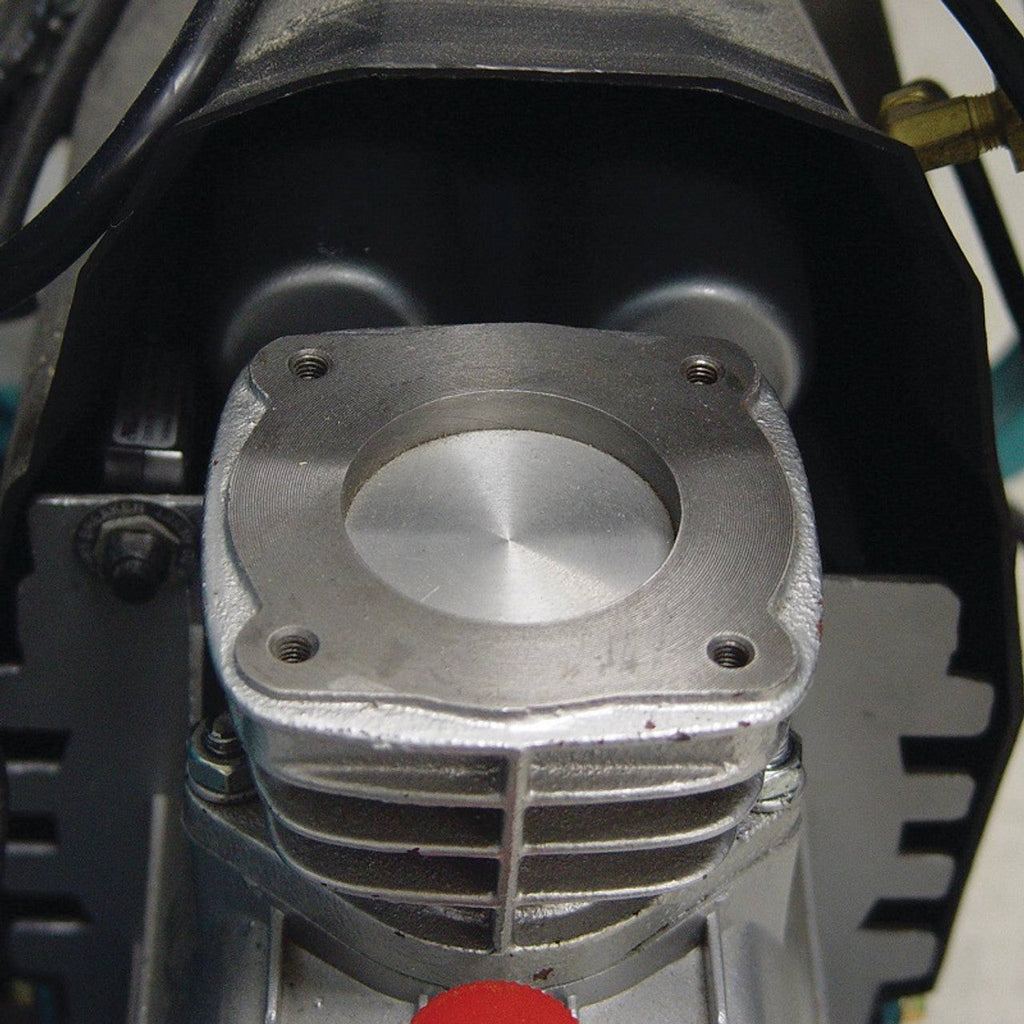

Big Bore cylinder and piston feature high output at lower RPM with reduced heat buildup, less noise and longer operational life
Low amperage draw reduces incidents of tripped breakers and voltage drops that cause premature motor failure
Easy view oil gauge and large pressure gauges for quick identification
Air pressure regulator enables easy adjustment of line pressure
Features 2 quick connect air hose fittings
Finned discharge tube promotes safe and efficient cooling
Roll cage construction protect components from damage
Specifications
Motor - 2.5 H.P.
Pump - Oil-Lubricated
Tank - 2 x 2.1 Gallon
Performance (90 PSI) - 4.2 CFM
Noise level - 79 dB(A)
AMPS (120V) - 12.3 A
Dimensions (L x W x H) - 20-1/2 x 19-5/8 x 20-7/8in (520 mm x 497 mm x 530 mm)
Maximum Pressure - 130 PSI
Net Weight - 77.0 lbs (34.9 kg)
