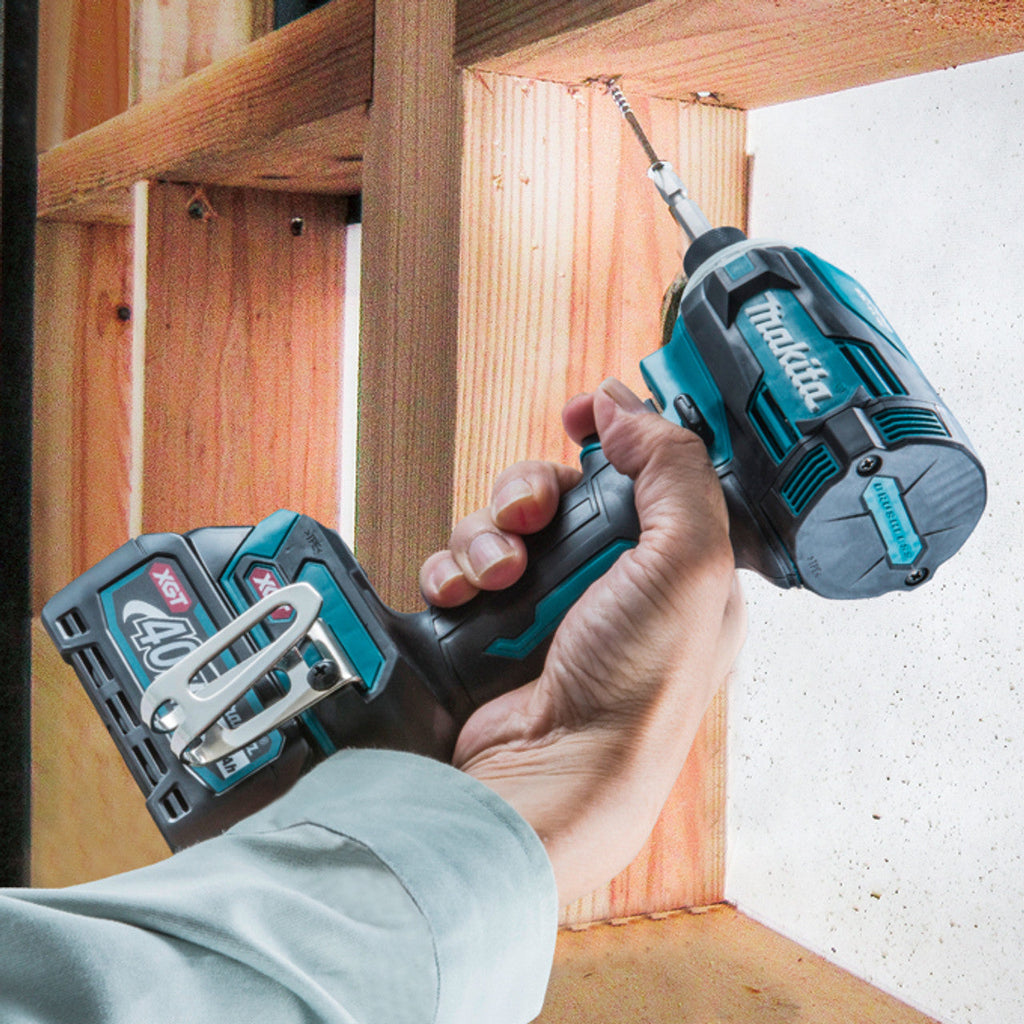

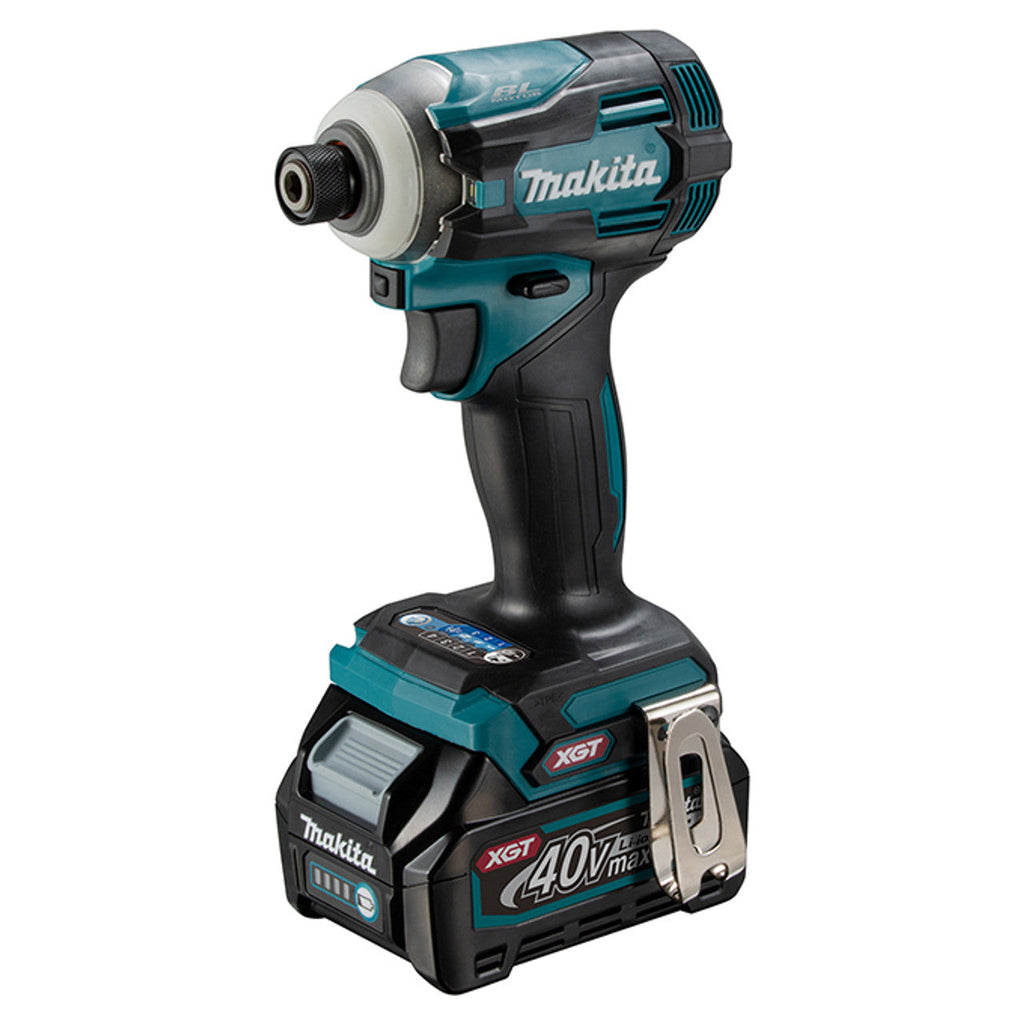

TD001GZ Features
Electronic 4-stage impact power selection + 6x Assist Modes
6x Assist modes (2x T-modes, 1x Wood mode, 3x Bolt modes)
Brushless motor
Electric brake
Variable speed control by trigger
Constant speed control
Quick mode switching function with memory function
Forward / reverse rotation
LED job light
Ergonomically designed high comfort grip.
One touch sliding chuck for easy bit installation and removal.
TD001GZ Specifications
Voltage: 40 v
Standard Bolt: M5-M16
High Tensile Bolt: M5 – M14
Coarse thread (length): 22 - 125 mm
Max Fastening Torque: 220 Nm
Blows per Minute (Max) - ipm: 0 - 4,400 ipm
Battery Type: Lithium-ion
Vibration K factor: 1.5 m/sec²
Noise sound pressure: 96 dB(A)
Noise sound power: 107 dB(A)
Noise K factor: 3 dB(A): Body only machine
No Load Speed (max/hard/med/soft): 0- 3700 / 3200 / 2100 / 1100 rpm
Vibration: Impact tightening of fasteners @ max capacity: 10.0 m/sec²
Driving Shank: 6.35mm (1/4") Hex
Blows per Minute (Hi) - ipm: 0 - 3,600 ipm
Blows per Minute (Med) - ipm: 0 - 2,600 ipm
Blows per Minute (Lo) - ipm: 0 - 1,100 ipm
Machine Screw: M4 – M8

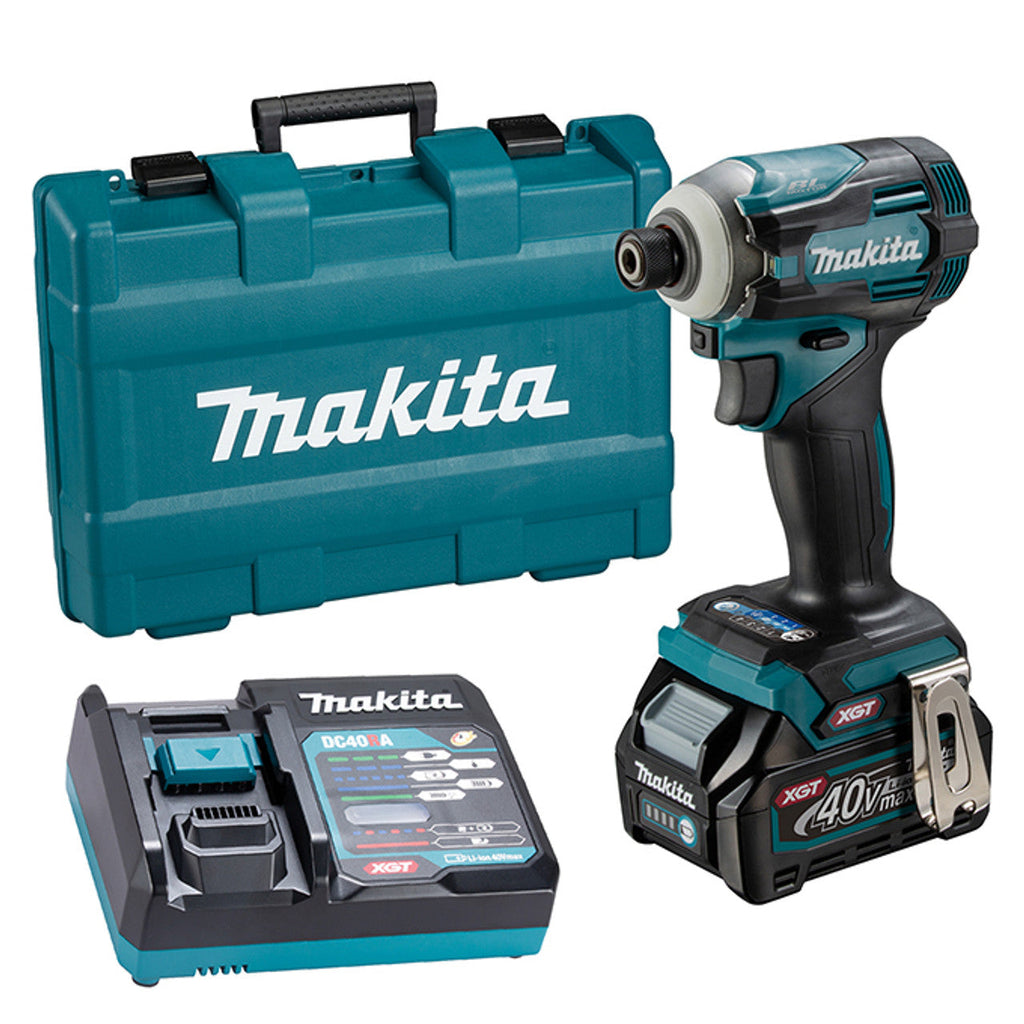

DC40RA Features
Accepts 40V MAX XGT Li-Ion 2.5 (BL4025) and 4.0 Ah (BL4040) batteries
Optimum charging system regulates thermal, voltage and current during charging cycle to ensure battery cannot be overcharged or overheated during the charging process
Central Processing Unit (CPU) in battery communicates with charger to analyze battery and charge according to its unique condition
Forced air cooling fans keeps battery and charging circuits at optimum charging temperature and prevents over heating
Digital power display indicates condition of battery and current charge level (-80%, +80%, 100%)
Keyhole slots charger to be fastened directly to walls, stud frames and more
Use with adapter ADP10 to charge 18V Li-ion compact, 3.0, 4.0, 5.0 and 6.0 Ah batteries
Charges 40V MAX Li-Ion 2.5 Ah battery in just 45 minutes!
Charges 40V MAX Li-Ion 4.0 Ah battery in just 28 minutes!
191E81-6 Features
New battery cell designed specifically for prolonged heavy duty professional applications
Improved impact resistance versus 18V lithium-ion batteries due to shock absorbing internal structure
Waterproof, triple layer structure and terminal walls protect against cell failure due to water or dust
Digital communication between battery, power tool and charger
4 LED battery charge level indicator lights displays approximate remaining battery power
Optimum charging system regulates thermal, voltage and current during charging cycle to ensure battery cannot be overcharged or overheated during the charging process
Use with Makita 40V MAX XGT Li-Ion Battery Charger DC40RA
100% charge in just 45 minutes!
80% charge in just 31 minutes!
