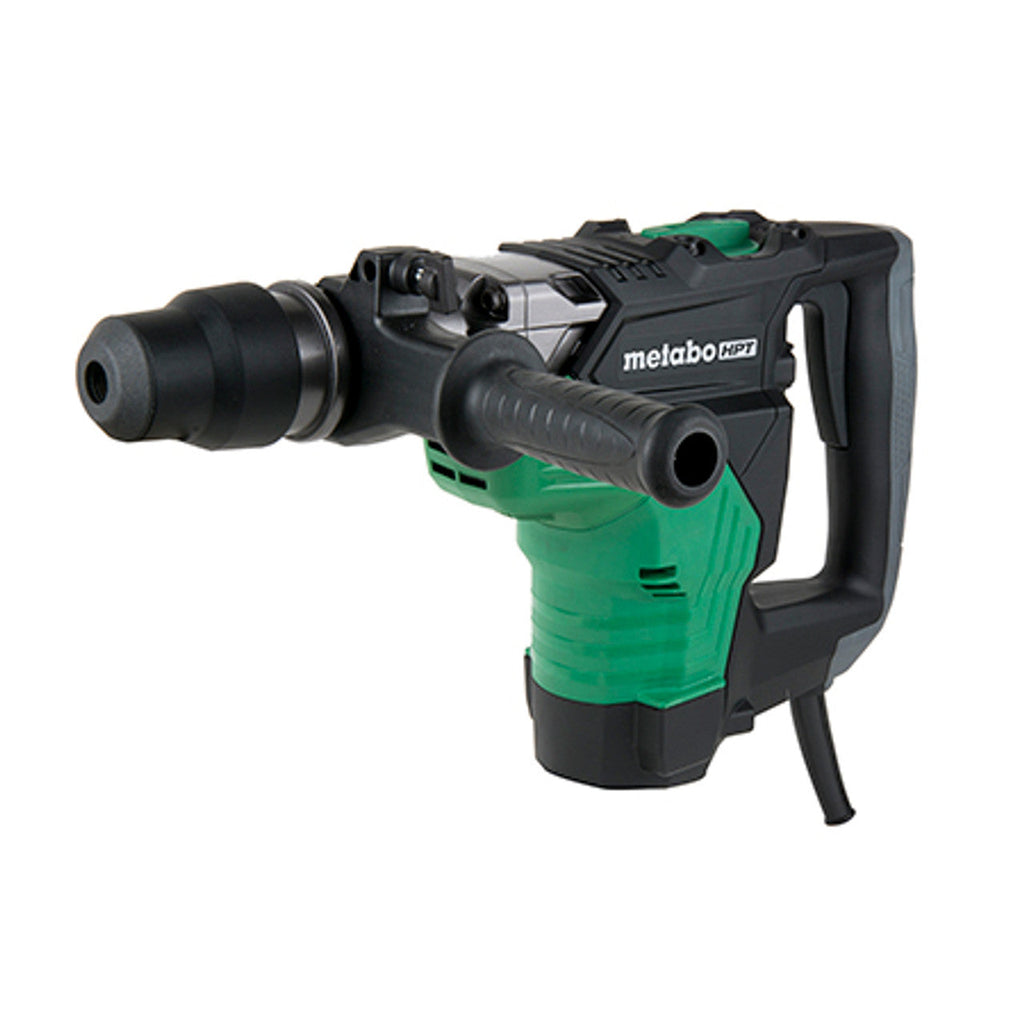

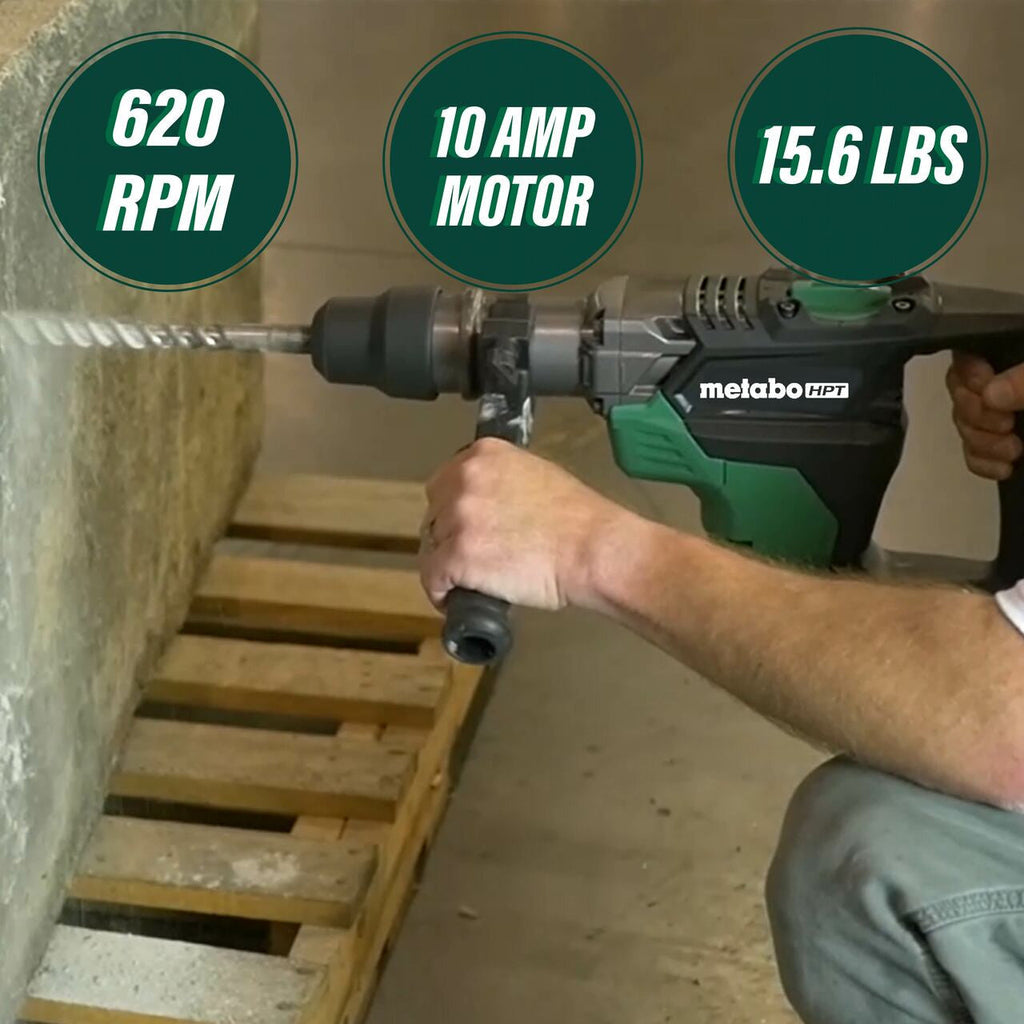

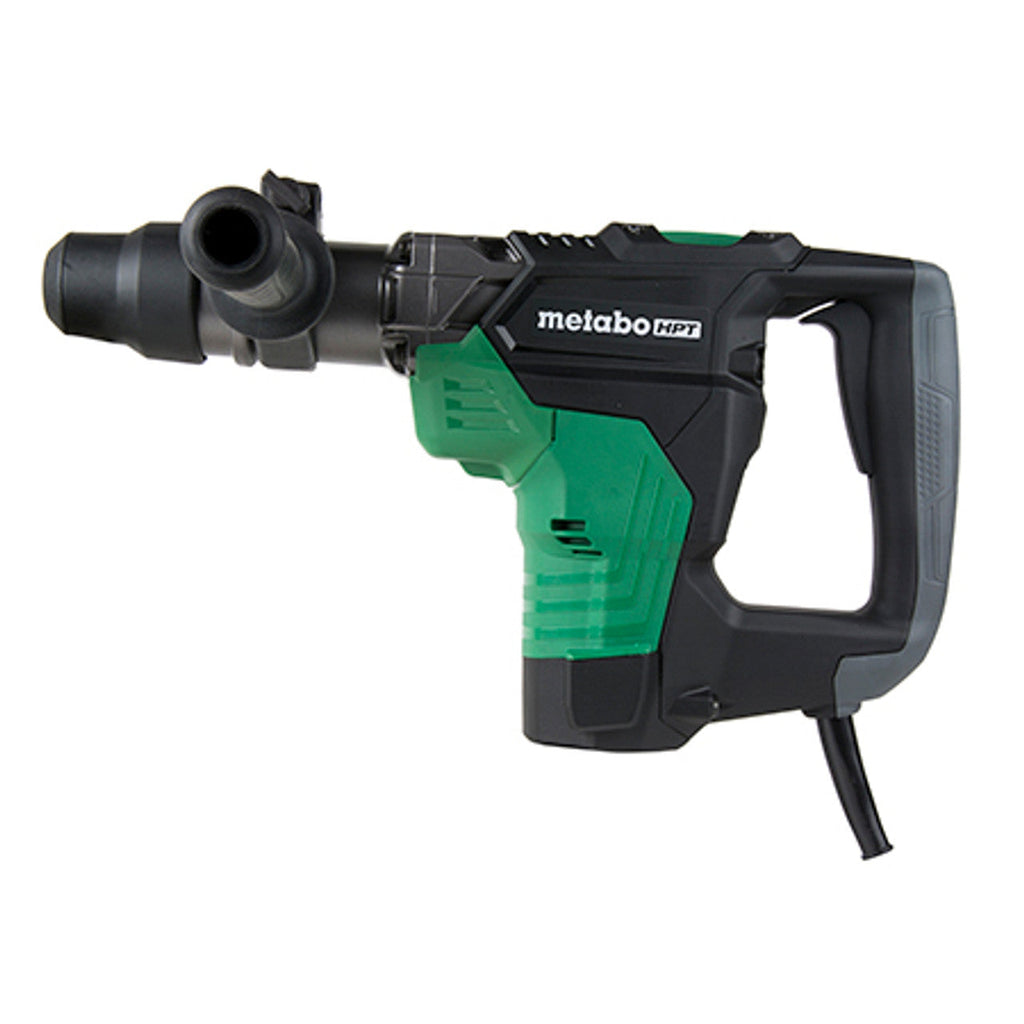

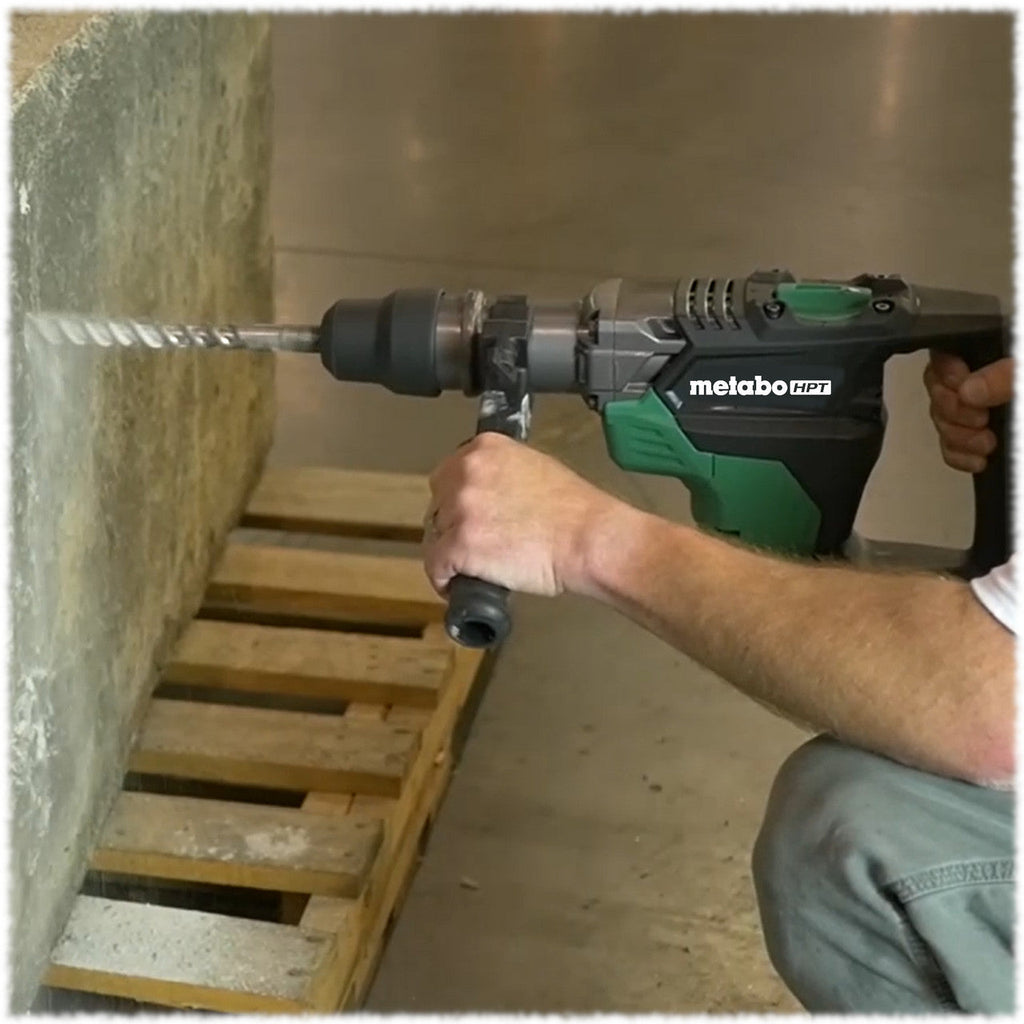

The 1-9/16in SDS Max Rotary Hammer (DH40MC) is designed to take on a variety of tasks including drilling holes in a concrete for anchors or rebar, demolishing and chiselling concrete, cutting, digging, tamping or driving ground rods.
This powerful 10-amp motor produces 6.3-foot pounds of Impact Energy and delivers top of class drilling speed. It's also easy and comfortable to use with an oversized knob that changes the mode from hammer drilling to hammer only, and an oversized trigger that is easy to use while wearing gloves.
Features:
Powerful: 10-amp motor produces 6.3 ft. Lbs of impact energy for tough jobsite applications
Side Handle: 360° side handle provides additional comfort and control
Impact Rate: 2,800 full load max impact rate to quickly remove stubborn materials
RPM: 620 no-load rpm for faster drilling speed
Clutch: needle pin slip clutch for improved user protection in bound bit situations
Grip: soft over-molded handle for added comfort and control, less fatigue
Dual modes: two modes of operation allow for greater versatility by providing the option of hammer drilling or hammer only
Easy switching: large change lever for easy mode switching
Trigger: Large trigger switch for easy grip and control

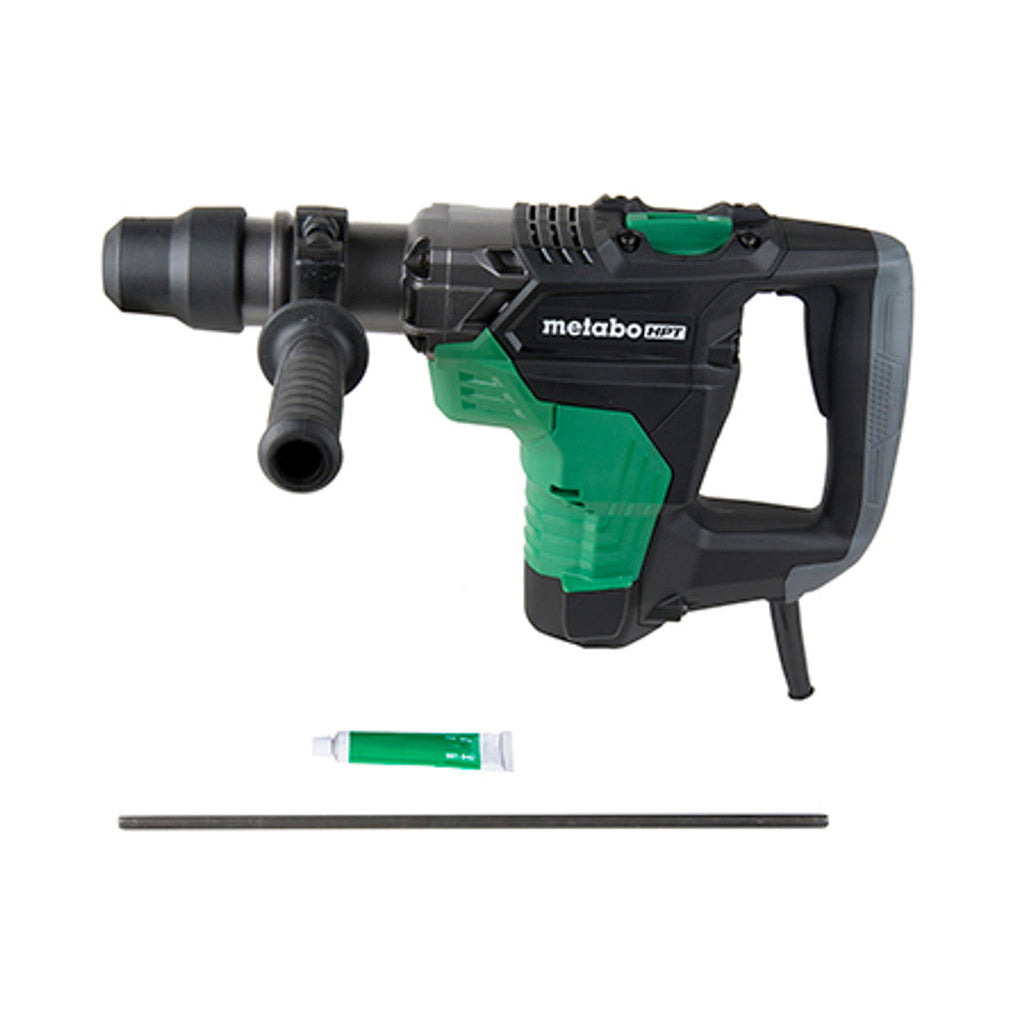

Includes:
Carrying Case (371122)
Side Handle (330209)
Depth Stopper Rod (971786)
Grease (981840)
Specifications:
Bit Type: SDS Max
Max No-Load Speed: 620 RPM
Max Impact Rate: 2,800 BPM
Impact Energy (EPTA): 6.3 ft/lbs
Amps: 10
Capacity: Drill Bit: 1-9/16"
Capacity: Core Bit: 4-1/8"
Modes of Operation: Hammer/Hammer & Drill
Handle Type: D
Vibration Level: 16.5m/sec2
Side Handle: 360 degree
Tool Dimensions: 17.6" x 10" x 4.1"
Tool Weight: (15.6 lbs.) with sidehandle
