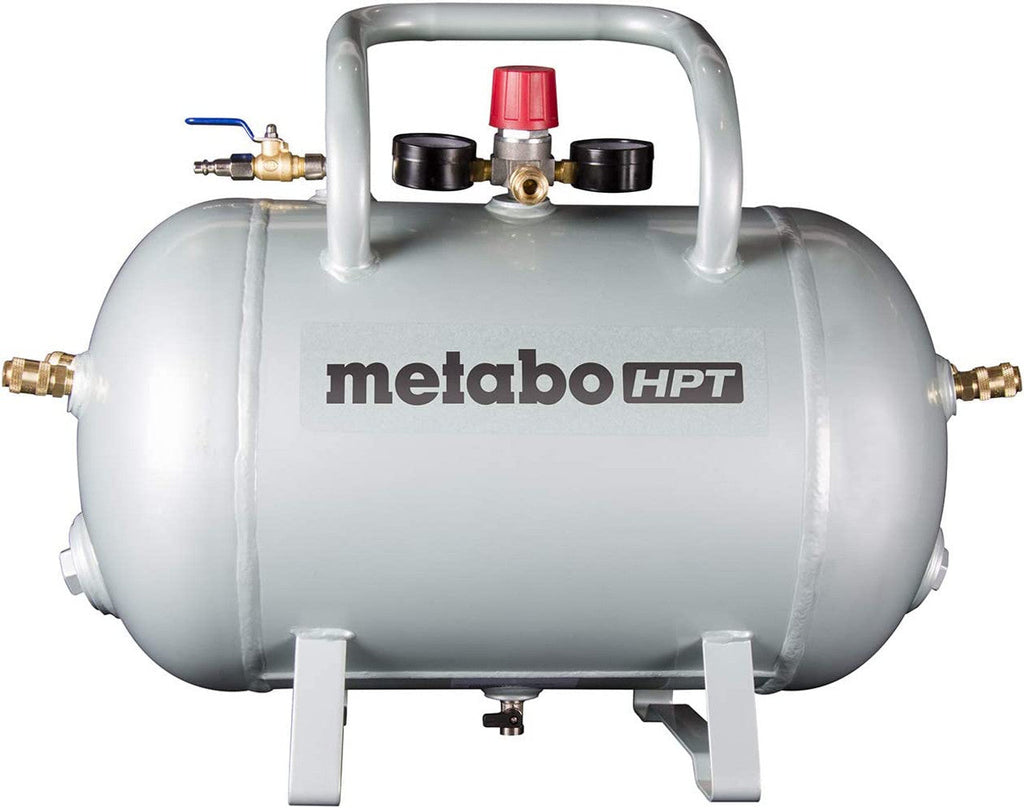

The UA3810AB 10-Gallon ASME Certified Reserve Air Tank is the perfect addition to the jobsite to ensure the air pressure being supplied to all nailers is sufficient, and that the required PSI remains constant- even if the compressor is 200 or more feet away. Simply add this reserve air tank between the compressor and nailers and there will be enough pressure to power five or more nailers operating at the same time. In the event that a nailer requires less PSI than other nailers attached, the UA3810AB has that situation covered with its standard factory installed large knob regulator.
Features
All fittings included and installed (except for four end fittings that need to be attached upon removal from packaging, for convenience and value)
Certified by the American Society of Mechanical Engineers (ASME) to ensure compliance with laws and regulations across all U.S. States
Industrial ball (shut-off) valve on input allows the tank to be filled and disconnected from the compressor without draining itself
Five quick connect couplers (4 unregulated + 1 regulated) allow for easy one handed connections of hoses and/or splitters
Roll cage design protects regulator and gauges
Industrial pressure gauges are encased in steel for high durability
Angled steel legs provide additional support, stability, and increase durability despite the abuse endured by hostile jobsite use
Steel tubular handle for easy jobsite transport and added comfort

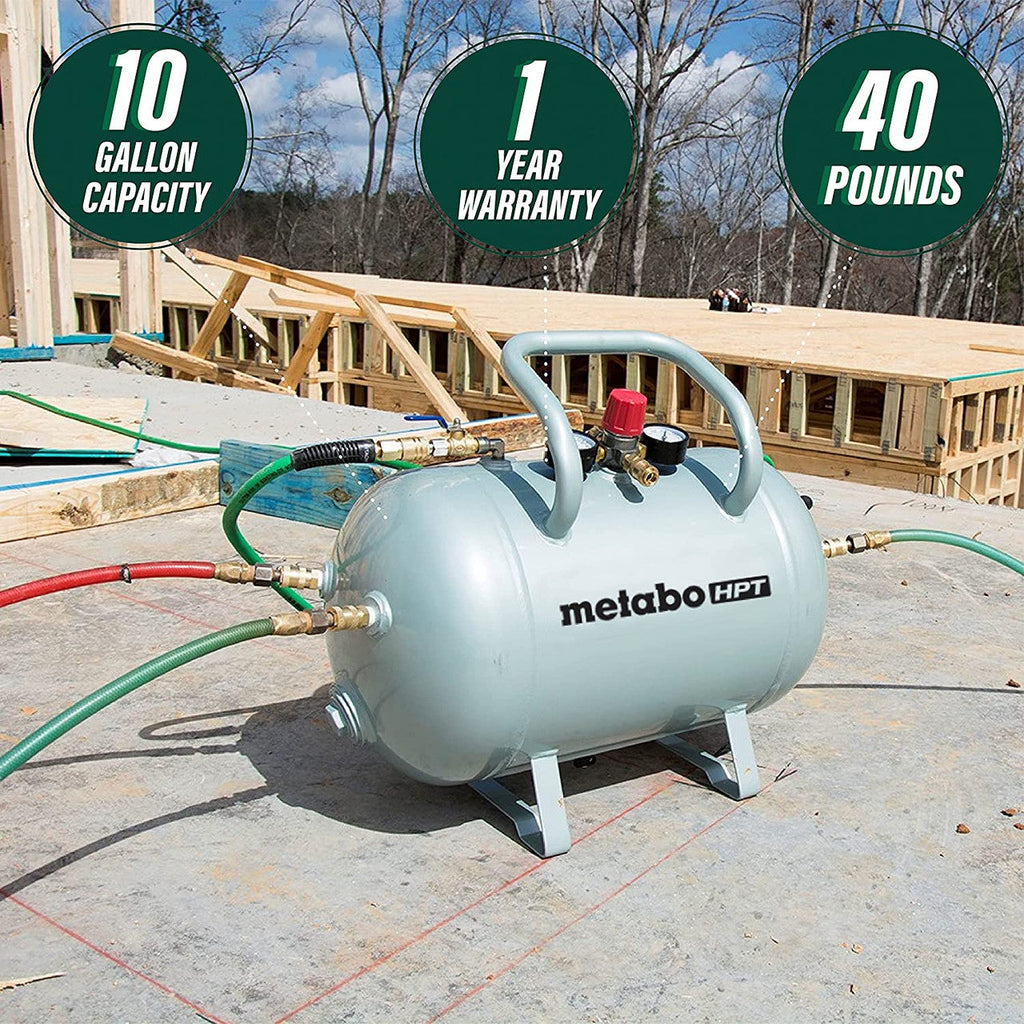

10-gallon capacity ensures sufficient pressure to power five or more nailers at the same time
Reserve air tank connects between the compressor and attached nailers to bridge the distance of over 200 feet or more, while ensuring PSI remains constant

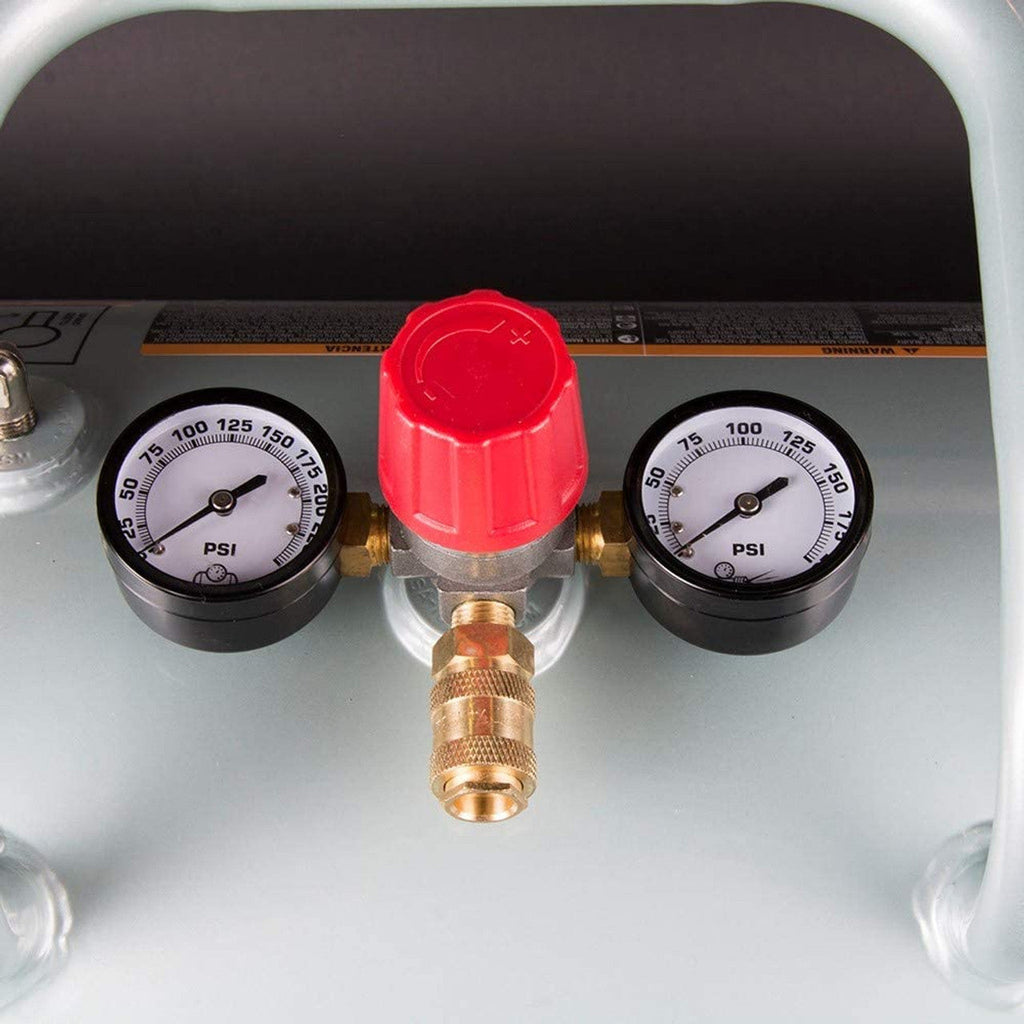

Standard factory installed large knob regulator is convenient in the event that a nailer (like a palm nailer for instance) might require less PSI than other nailers on the jobsite
Professional 1-Year Warranty for peace of mind

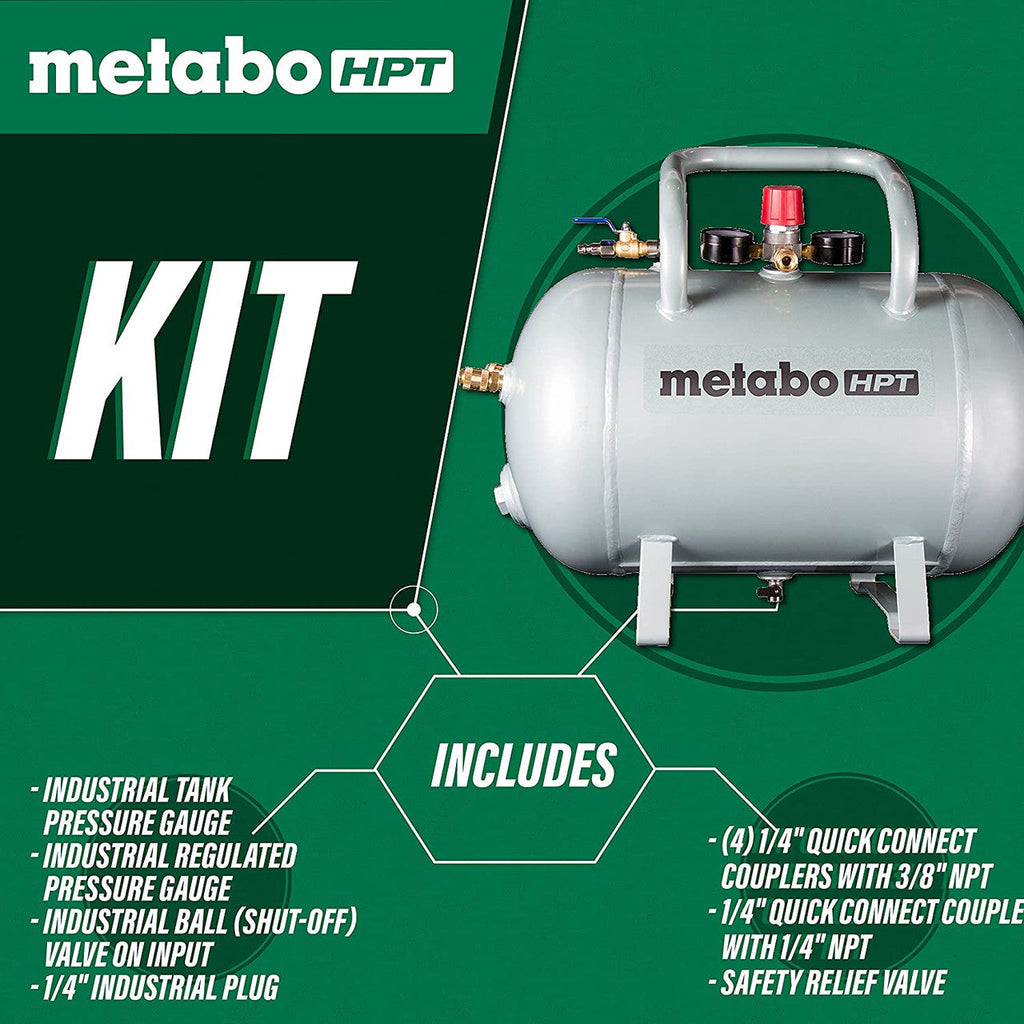

Includes
(4) 1/4in Quick Connect Couplers with 3/8in NPT (889021)
(1) 1/4in Quick Connect Coupler [located on Regulator] with 1/4in NPT (888020)
(1) Safety Relief Valve (889014)
(1) Industrial Tank Pressure Gauge (889015)
(1) Industrial Regulated Pressure Gauge (889016)
(1) Industrial Ball (Shut-Off) Valve on Input (889019)
(1) 1/4in Industrial Plug (889018)
Specifications
Tank Type: Horizontal Barrel
Tank Capacity: 10-Gallon (ASME)
No. of Outputs: Five (4 Unregulated + 1 Regulated)
Tank Pressure Gauge: Yes- Installed
Regulated Pressure Gauge: Yes- Installed
Coupling Sockets: 1/4in Industrial x 5
Max Allowed Working Pressure: 175 PSI
Input Shut-Off Valve: Yes- Installed
Safety Release Valve: Yes- Installed
Weight: 40 lbs
