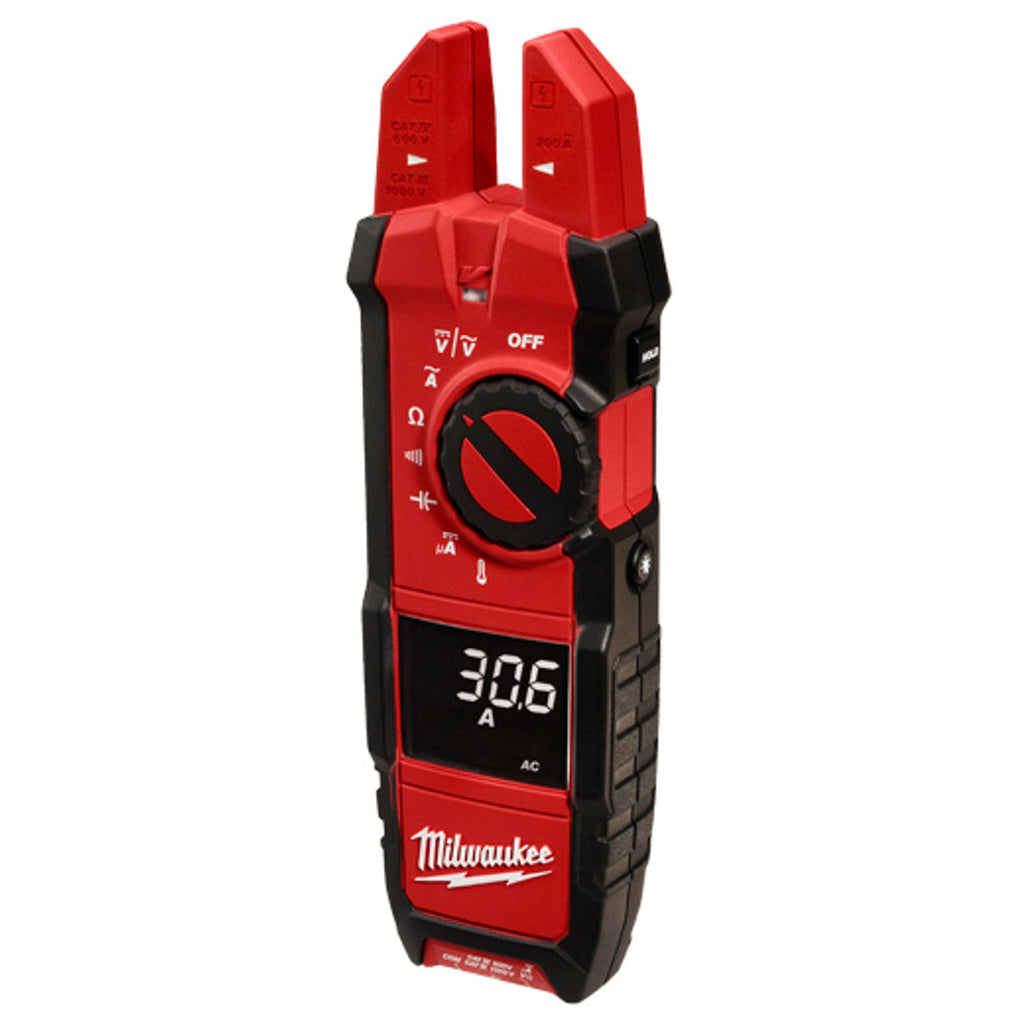

The Milwaukee Fork Meter for HVAC/R is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2206-20 is five tools in one providing current measurement, temperature measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63 fork opening, high 200amp current range and a high contrast white-on-black display.
Includes
2206-20 Fork Clamp
Test Leads
Dual Banana Thermocouple
(2) AA Batteries
Manual
Features
Measures up to 200 amps, Wide 0.63 jaw opening
Wide Voltage range to 1000 volts AC /DC
True-RMS for accurate measurement in all applications
Built-In Voltage Detector and LED Work Light
Thermocouple (dual banana) input for contact temperature measurement
600 UA DC for Flame Rectification
High Contrast, White on Black Display with Backlight for easy reading
Rugged over-molding increases durability and user grip
Specifications
Display type White on black LCD
Switch type Dial
Battery type Alkaline (AA)
TRMS Yes
Safety rating CAT IV 600V / CAT III 1000V
Current AC 200A
Microamps DC 1,000μA
Voltage AC DC 1000V
Resistance 40MΩ
Continuity Audible
Capacitance 1,000μF
Contact temperature -40° F to 752° F (-40° C to 400° C)
Display backlight Yes
Non contact voltage Yes
LED work light Yes
Rugged over molding Yes
Fork opening 0.63in
Length 8in
