Upgrade Your Single-Stage Dust Collector and Say Goodbye to Clogged Filters!
Single-stage dust collectors are great for small, hobbyist shops but they come with a cost - fine dust quickly clogs the filter, reducing suction and leaving dust at your tools! Worse still, there's nothing to protect your dust collector from being damaged should you accidentally suck up large wood chunks, bolts, etc.
How do you improve your dust collector's performance while dramatically reducing the need to clean or replace its filter? Install our cyclone!
Oneida Air Systems patented Super Dust Deputy cyclone separates over 99% of dust and debris from the incoming airstream, virtually eliminating filter clogging, suction loss, and significantly prolonging the lifespan of your filter.
Features
Prevents both fine dust and large debris from reaching your dust collector
Includes reducer adapters to convert both the 5in inlet (connects to your tools) and 6in outlet (connects to your collector) to 4in ports
Deluxe kit includes a lightweight, 15-gallon dust bin with quick-release latch
Prolongs the lifespan of the filter while reducing the need for cleanings
Ultra-high efficiency with integrated air ramp and neutral-vane inlet

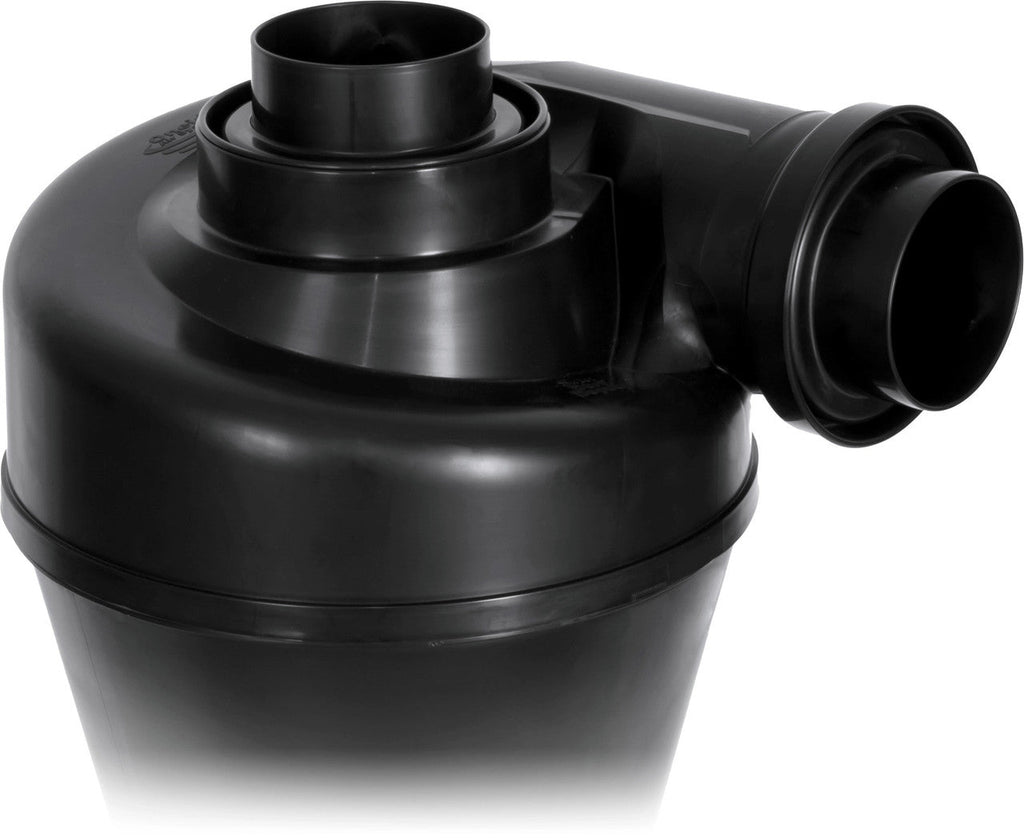

Tapered intake and exhaust ports allow for easy, friction fit flex-hose connections.
Lightweight and compact design for fast and simple installations
Compatible with almost any dust collector
Cyclone molded from an industrial, abrasion resistant HDPE resin
Static Dissipative construction safely conveys static charge build-up to the electrical ground, preventing harmful discharges
Specifications
Cyclonic Separation Efficiency: Removes over 99% of fine wood dusts
Horsepower Rating: 0.5HP - 3HP
Airflow Rating: Minimum 350 CFM
Waste Capacity: 15 Gallons
Inlet Size: Without Adapters: 5in O.D., 4-3/4in I.D. With Adapters: 4in O.D., 3-3/4in I.D.
Outlet Size: Without Adapters: 6in O.D., 5-3/4in I.D. With Adapters: 4in O.D., 3-3/4in I.D.
Discharge Size: 8-3/16in O.D. 6in I.D.
Primary Build Materials: Static Dissipative Polyethylene, Fiberboard
Static Resistance Rating: Static Dissipative
Color: Black
Width: 16-1/16in
Depth: 16-1/2in
Height: 43-5/8in
Height to Center of Inlet: 39-3/16in
Product Compatibility: 0.5HP to 3HP Single-Stage Dust Collectors (Minimum 350 Actual CFM)

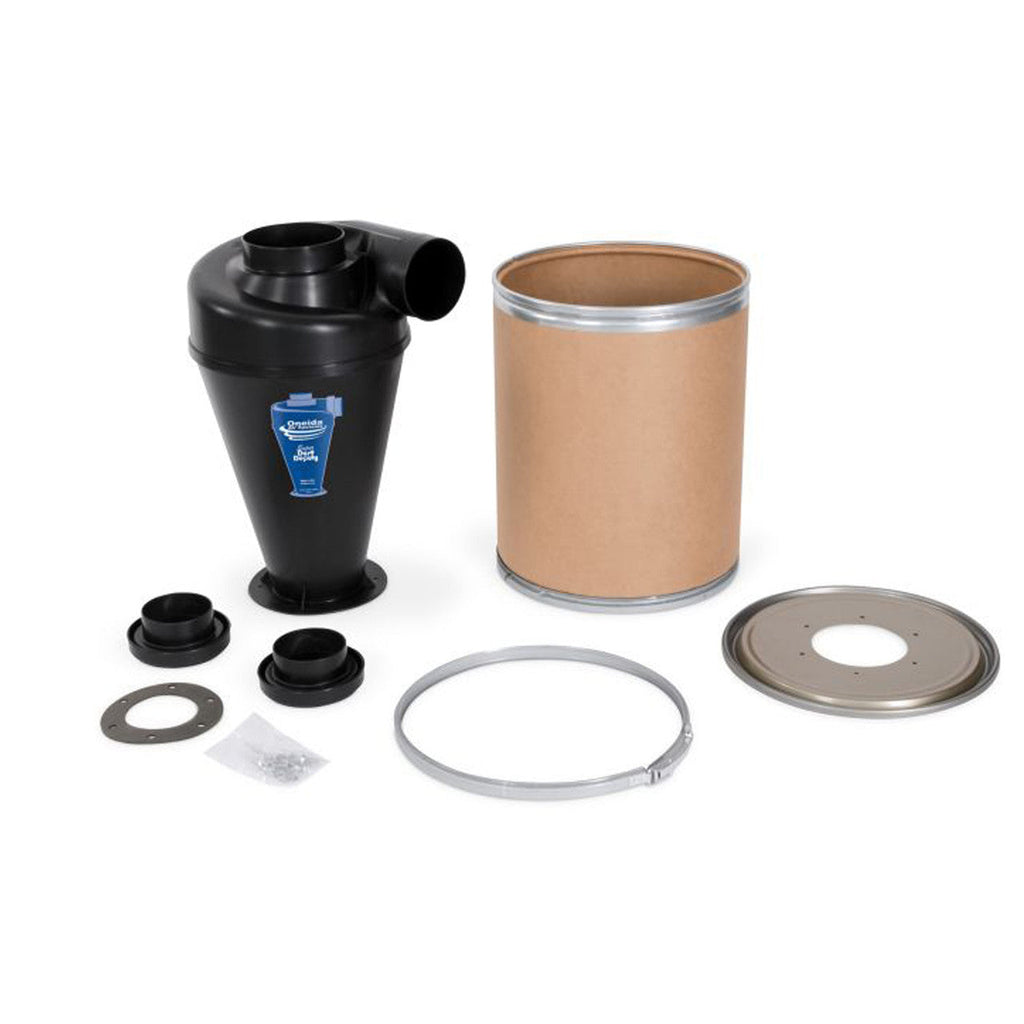

Contents: Cyclone, 2x 4in Adapters, Fiber Drum, Lid Clamp, Gasket, Hardware
