Features
Patented Quick Adjustment Lever: reduces set-up time.
Built-in DRO (digital read out): maintain material thicknesses to increase accuracy and quality.
Turbo Vented dust port: increases airflow to your dust collector by 15%.
Rear placement of the Gear Motor: improve conveyor belt tracking.
Patented Fast Lever: allows quick adjustments for wide and narrow stock
IntelliSand Technology: prevents gouging, damaging, or burning material.
Patented Quick Lever Adjustment which allows height adjustments from 0-3in with one pull of a lever versus 48 revolutions of a hand wheel greatly reducing set-up time and increases productivity

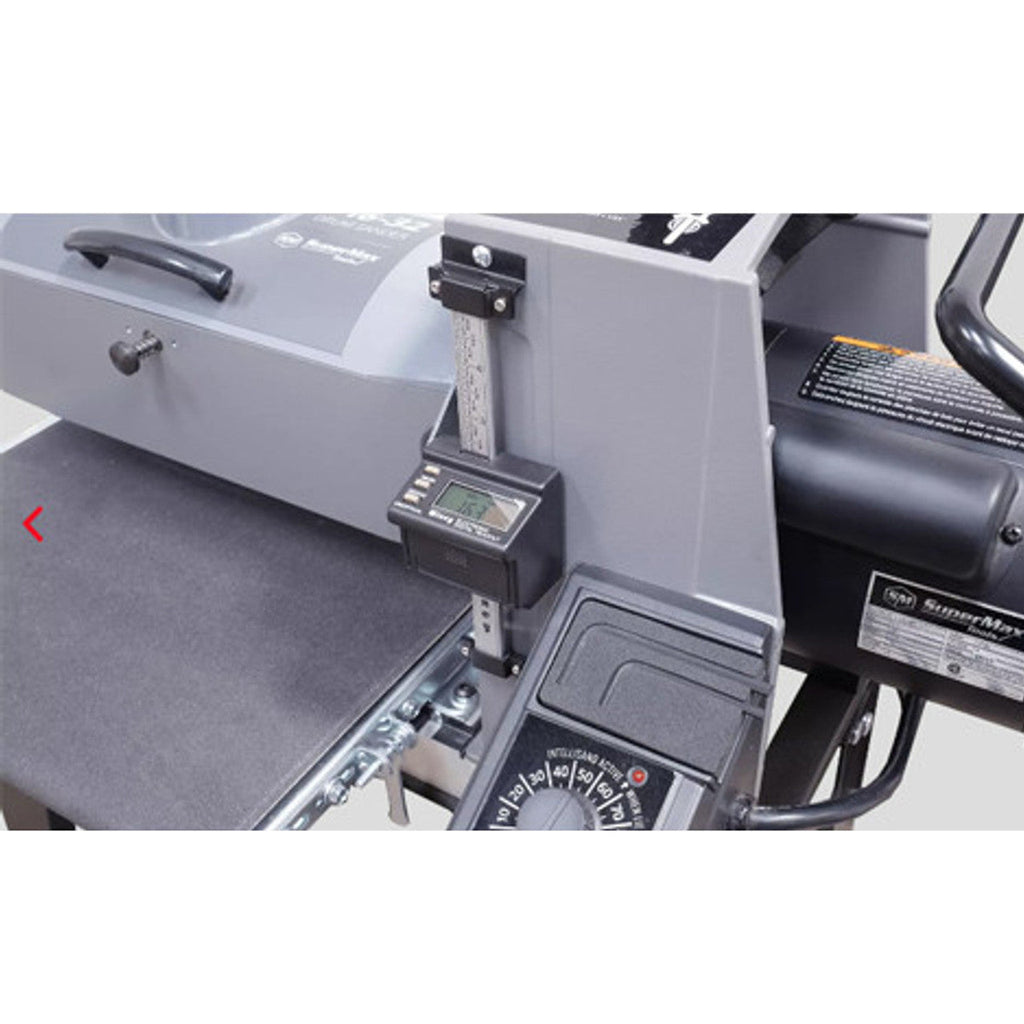

Includes build-in Digital Read Out which helps maintain consistent thicknesses to increase accuracy and quality.

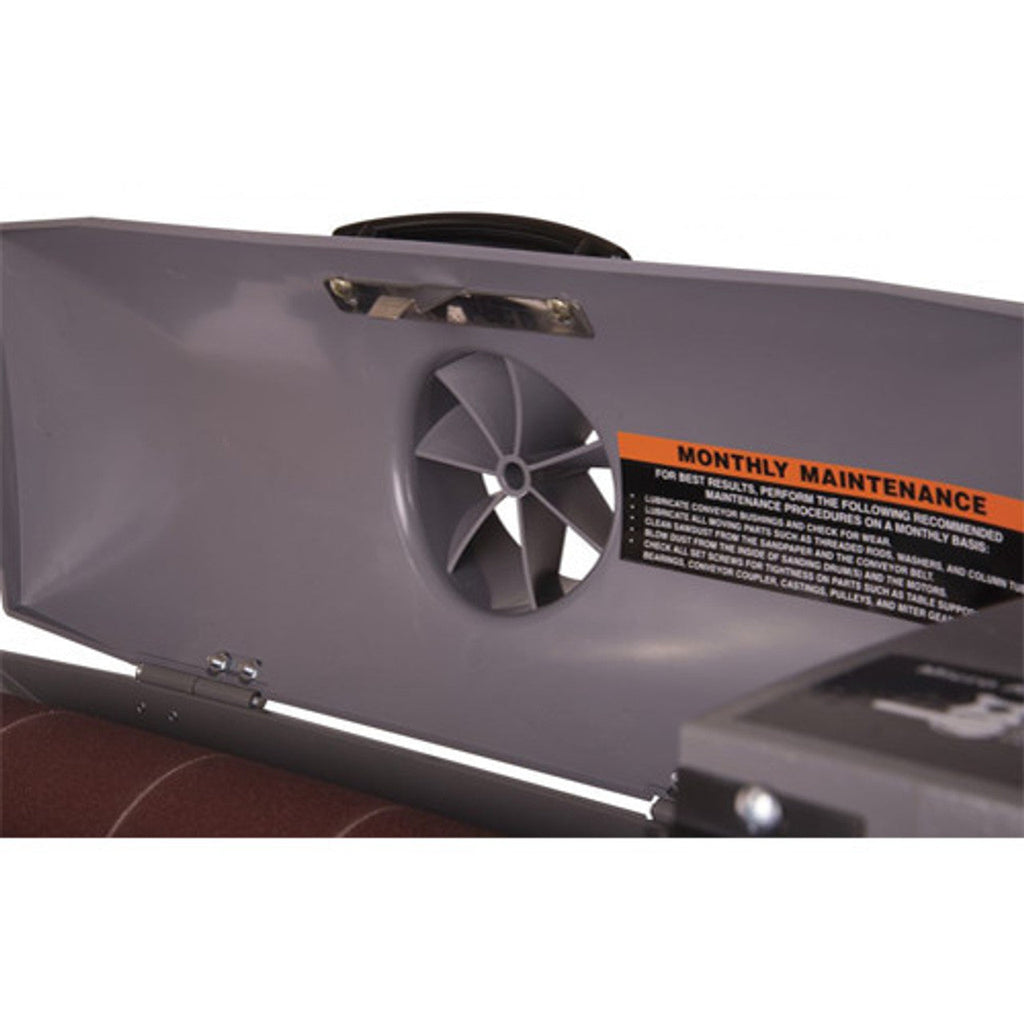

A newly designed Turbo Vented Dust Port increases CFM air-flow to dust collectors by 15%.
Simple alignment feature – just one nut adjusts the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy
Indexed alignment setting – the fast lever is an indexed alignment setting for narrow and wide stock. When sanding stock wider than 16in, the index lever will properly adjust the conveyor for flawless wide sanding.
Drum will never go out of alignment – the drum carriage is bolted to the base, preventing any movement or alignment issues.
Specifications
Drum Speed 1740 RPM
Maximum Sanding Width 32in
Minimum Sanding Length 2-1/4in
Maximum Sanding Thickness 3in
Minimum Sanding Thickness 1/32in
Drum 5 x 16in extruded aluminum
Dust hood Turbo Vented – 1×4in, vacuum port (min. 600 CFM recommended)
Conveyor Speed 0-10 FPM
Drive Motor 1-1/2 HP
Power Requirements 110 V, 15 Amp, 20 AMP Service
Shipping Weight 158 lbs (1 box including stand)
Assembled Dimensions (Footprint) W: 34in | D: 22in | H: 48in (without casters)
